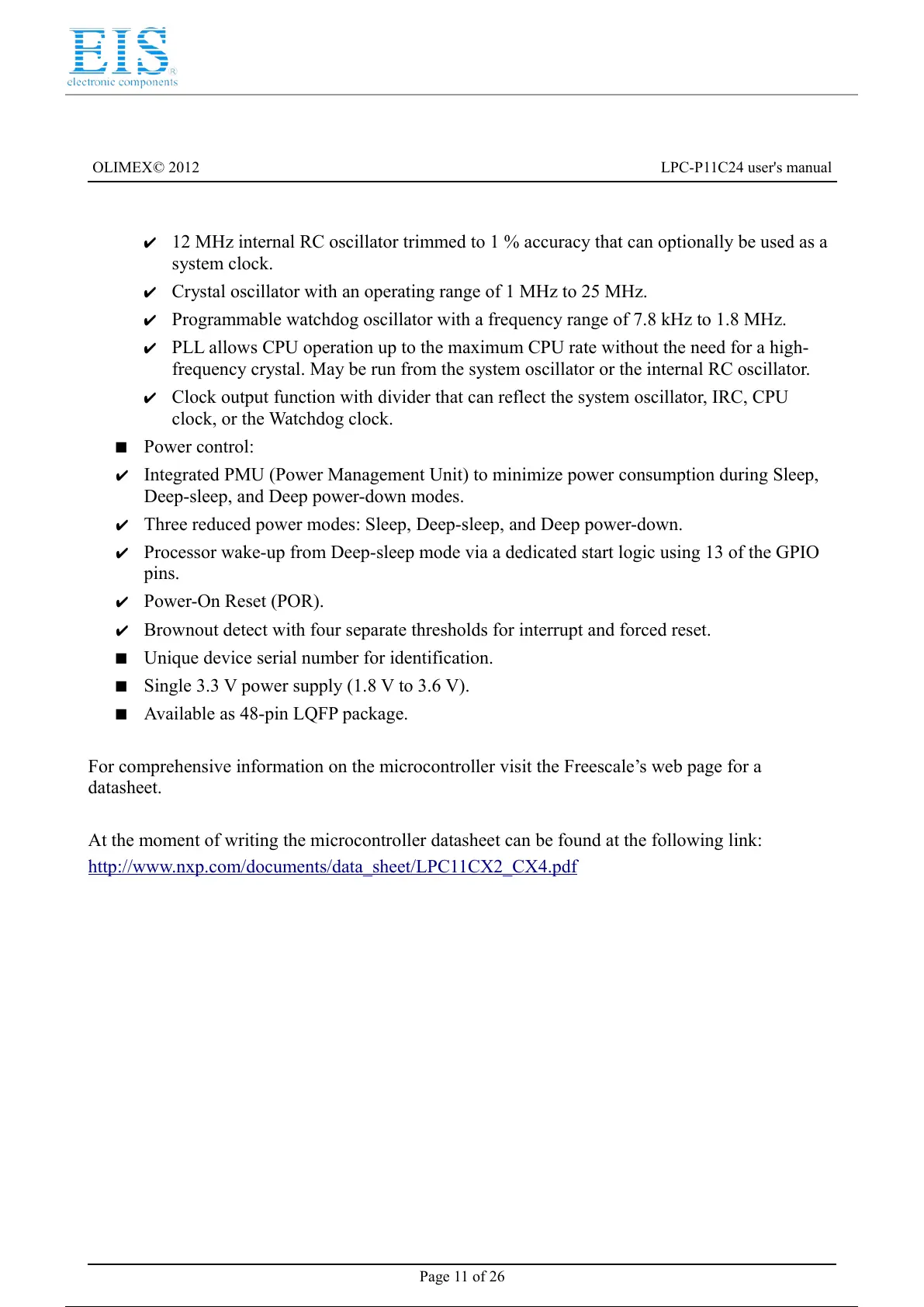

OLIMEX© 2012 LPC-P11C24 user's manual
✔ 12 MHz internal RC oscillator trimmed to 1 % accuracy that can optionally be used as a
system clock.
✔ Crystal oscillator with an operating range of 1 MHz to 25 MHz.
✔ Programmable watchdog oscillator with a frequency range of 7.8 kHz to 1.8 MHz.
✔ PLL allows CPU operation up to the maximum CPU rate without the need for a high-
frequency crystal. May be run from the system oscillator or the internal RC oscillator.
✔ Clock output function with divider that can reflect the system oscillator, IRC, CPU
clock, or the Watchdog clock.
Power control:
✔ Integrated PMU (Power Management Unit) to minimize power consumption during Sleep,
Deep-sleep, and Deep power-down modes.
✔ Three reduced power modes: Sleep, Deep-sleep, and Deep power-down.
✔ Processor wake-up from Deep-sleep mode via a dedicated start logic using 13 of the GPIO
pins.
✔ Power-On Reset (POR).
✔ Brownout detect with four separate thresholds for interrupt and forced reset.
Unique device serial number for identification.
Single 3.3 V power supply (1.8 V to 3.6 V).
Available as 48-pin LQFP package.
For comprehensive information on the microcontroller visit the Freescale’s web page for a
datasheet.
At the moment of writing the microcontroller datasheet can be found at the following link:
http://www.nxp.com/documents/data_sheet/LPC11CX2_CX4.pdf
