Olimpia splendid B0873 - Page 33

Bi2 Air AR
CVSV
E
+V10-
H2O
H2O
CFG
N
230V
50Hz
F
Y1
S1
J1
M1
M2
LOCK
FANCOIL
LED
SW1
MOUNT
SEL1
SEL2
*
E
ENGLISH
EN - 13

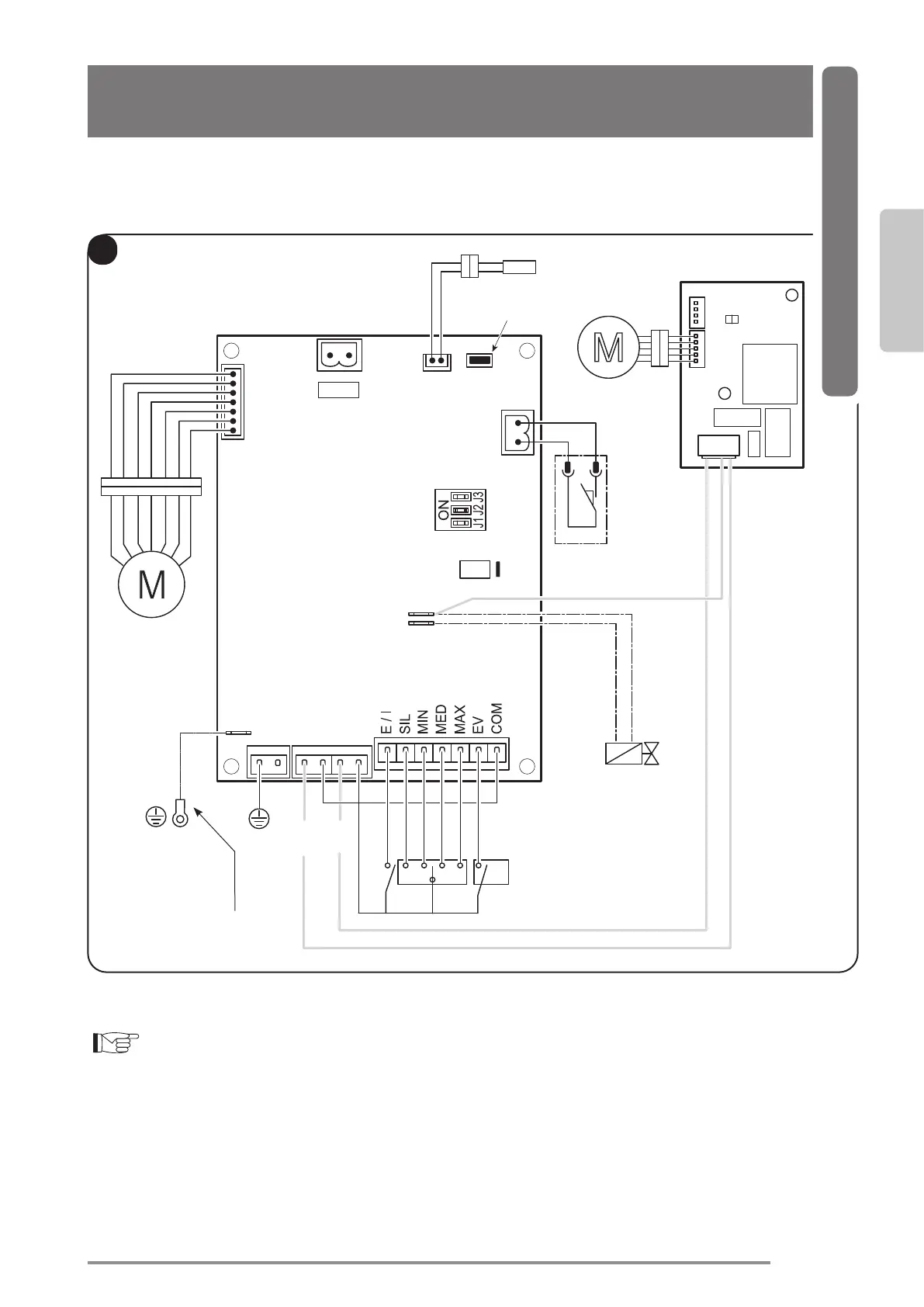

4 - MANAGEMENT OF THE FAN COIL WITH DC MOTOR THROUGH 4-SPEED
THERMOSTAT (J1 - OPEN)
To the ground connec-
tion of the fan coil
Open
For the key of the terminal box and the alarms: see page 18
WITH FLAP
