Oliver 709 - Wiring Diagrams; Dayton Motor Wiring (115 V AC); Leeson Motor Wiring (115 V AC)

MODEL 709 MINI SUPREME BREAD SLICER
0709S20032-1
WIRING DIAGRAMS
NOTE
SELECT WIRING DIAGRAMS BASED ON THE MOTOR MODEL
FURNISHED ON YOUR MACHINE
AND THE ELECTRICS OF YOUR
MACHINE.

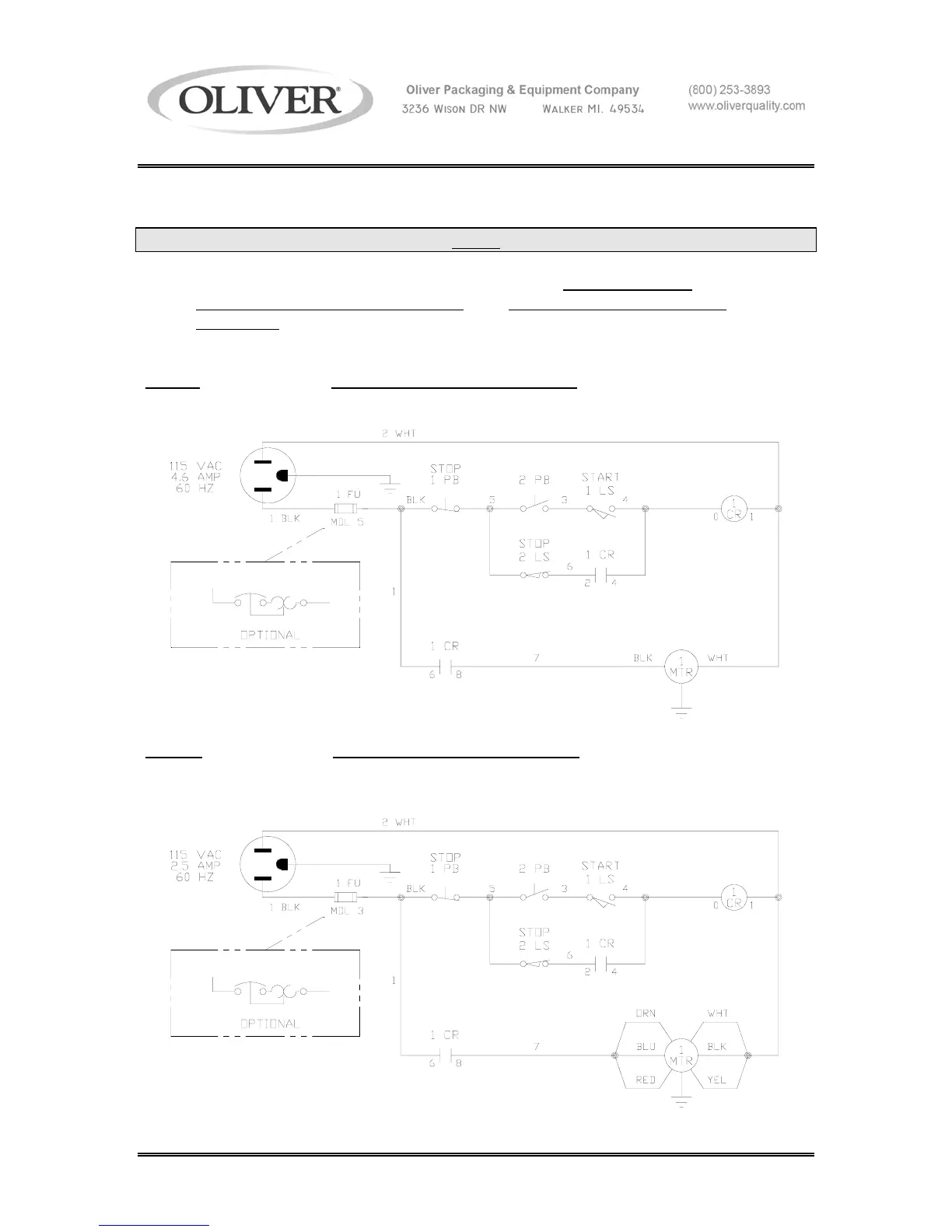

“Dayton
” Motor Wired as 1 Phase, 60 Hertz, 115 Volts AC
Wiring Diagram 0709C12012
“Leeson
” Motor Wired as 1 Phase, 60 Hertz, 115 Volts AC
Wiring Diagram 0709C12013
