6

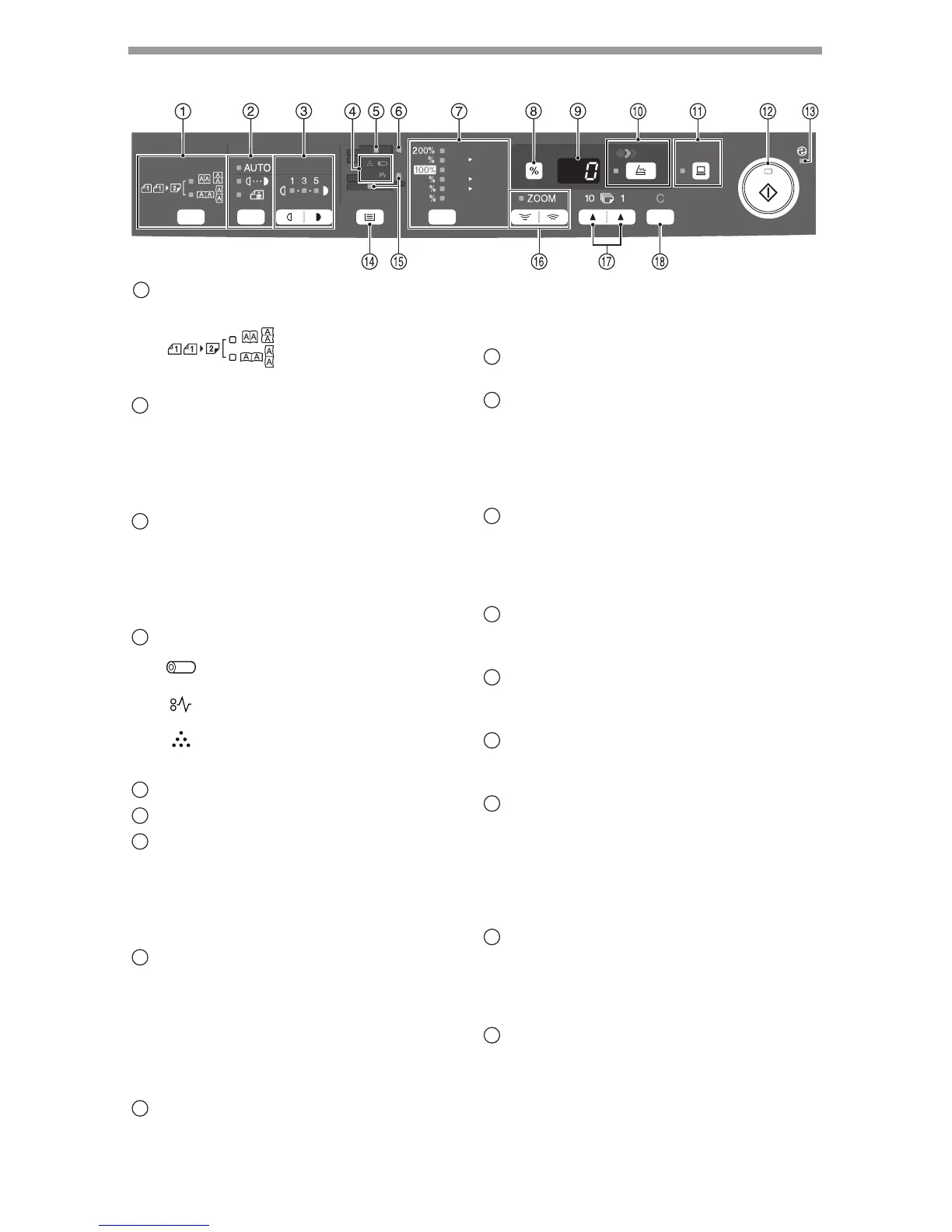

OPERATION PANEL
A5
A4
A4
B5
A4
A5
141
86
70
50
Original to copy key and indicators
Two-sided copies from
one-sided originals.
Turn on Long Edge or
Turn on Short Edge
can be selected.
Exposure mode selector key and
indicators
Use to sequentially select the exposure
modes: AUTO, MANUAL or PHOTO.
Selected mode is shown by a lit
indicator. (p.49)
Light and dark keys and indicators
Use to adjust the MANUAL or PHOTO
exposure level. Selected exposure level
is shown by a lit indicator. (p.49) Use to
start and terminate user program
setting. (p.55)
Alarm indicators
Drum replacement required
indicator (p.58)
Misfeed indicator (p.64)
Toner/developper cartridge
replacement required indicator
(p.57)
SPF indicator (p.48) (d-Copia 201D)
SPF misfeed indicator (p.68) (d-Copia 201D)
Copy ratio selector key and
indicators
Use to sequentially select preset
reduction/enlargement copy ratios.
Selected copy ratio is shown by a lit
indicator. (p.51)
Copy ratio display (%) key
• Use to verify a zoom setting without
changing the zoom ratio. (p.51)
• Use to check the number of originals
that must be returned to the document
feeder tray if a misfeed occurs in the
machine when the SPF is used
(
d-Copia 201D
)
. (p.69)
Display
1
2
3
4
5
6
7
8
9
Displays the specified copy quantity,
zoom copy ratio, user program code
and error code.
SCAN key and indicator
(p.33, p.41)
ONLINE key and indicator
Lights up when the unit is used as a
printer and scanner. For description of
the ONLINE indicator, see
"INDICATORS ON THE OPERATION
PANEL" (p.33).
Start key and indicator
• Copying is possible when the
indicator is on.
• Press to start copying
• Use to set a user program. (p.55)
Power save indicator
Lights up when the unit is in a power
save mode. (p.54, p.55)
Tray select key
Use to select a paper feed station
(paper tray or multi-bypass tray). (p.51)
Paper feed location indicators
Light up to show the selected paper
feed station.
ZOOM keys and indicator
Use to select any reduction or
enlargement copy ratio from 25% to
400% in 1% increments. (When the
SPF is being used, the zoom copy ratio
range is 50% to 200%.(
d-Copia 201D
))
(p.51)
Copy quantity keys
• Use to select the desired copy
quantity (1 to 99). (p.49)
• Use to make user program entries.
(p.55)
Clear key
• Press to clear the display, or press
during a copy run to terminate
copying. (p.49)
• Press and hold down during standby
to display the total number of copies
made to date. (p.56)
10
11
12
13
14
15
16
17
18
