1-5-19

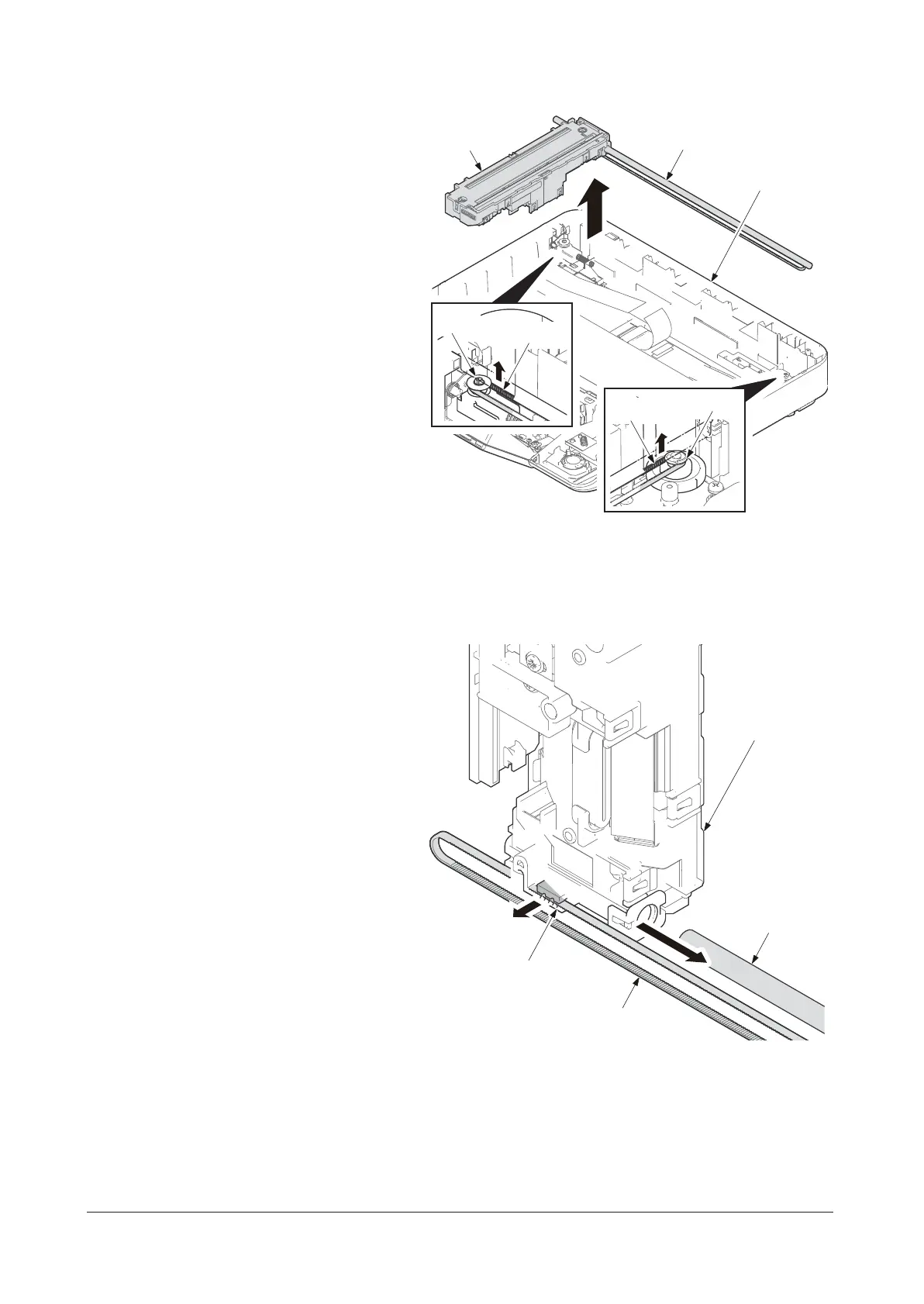

14. Remove the drive belt from two pulleys.
15. Remove the carriage assembly , ISU
shaft and the lower ISU frame upward.
Figure 1-5-29
16. Pull the carriage assembly out.
17. Remove the drive belt from the holding
part of the carriage assembly.
18. Check or replace the exposure lamp
and refit all the removed parts.
Figure 1-5-30
Pulley
Pulley
Drive belt
Drive belt
Carriage
assembly
ISU shaft
Lower ISU frame
ISU shaft
Drive belt
Holding part
Carriage
assembly
Service Manual
Y116540-5
