(1-1) Detaching and refitting DP paper feed roller or DP pickup pulley
Procedure
1. Open the DP top cover.

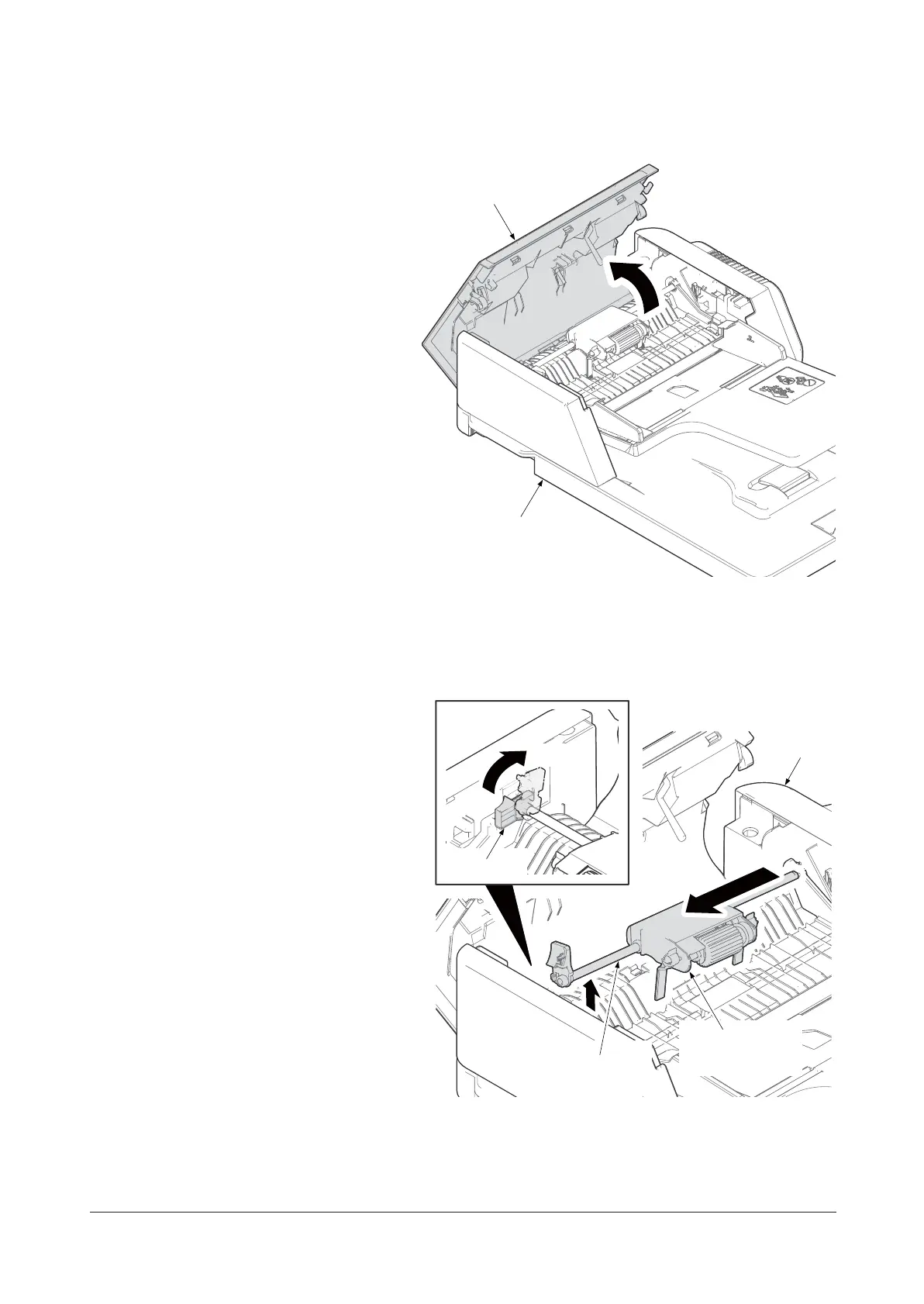

Figure 1-5-125
2. Rotate the lock lever to unlock position.
3. Pick the frontside of DP paper feed
roller axis up and then pull DP paper
feed roller assembly out forward.
Figure 1-5-126
DP top cover
DP
Lock lever
DP paper feed
roller assmbly
DP paper feed
roller axis
DP
UNLOCK
Service Manual
Y116540-5
