1-5-76
(1-2) Detaching and refitting the DP separation pad
Procedure
1.
Push two hooks
inside and pull DP sep-
aration p
ad assembly up.
2.
Check or replace
DP separation
pad
and refit all
the remove
d parts.
*:
Check wh
ether the pr
essure sprin
g is
contained in the
projection.

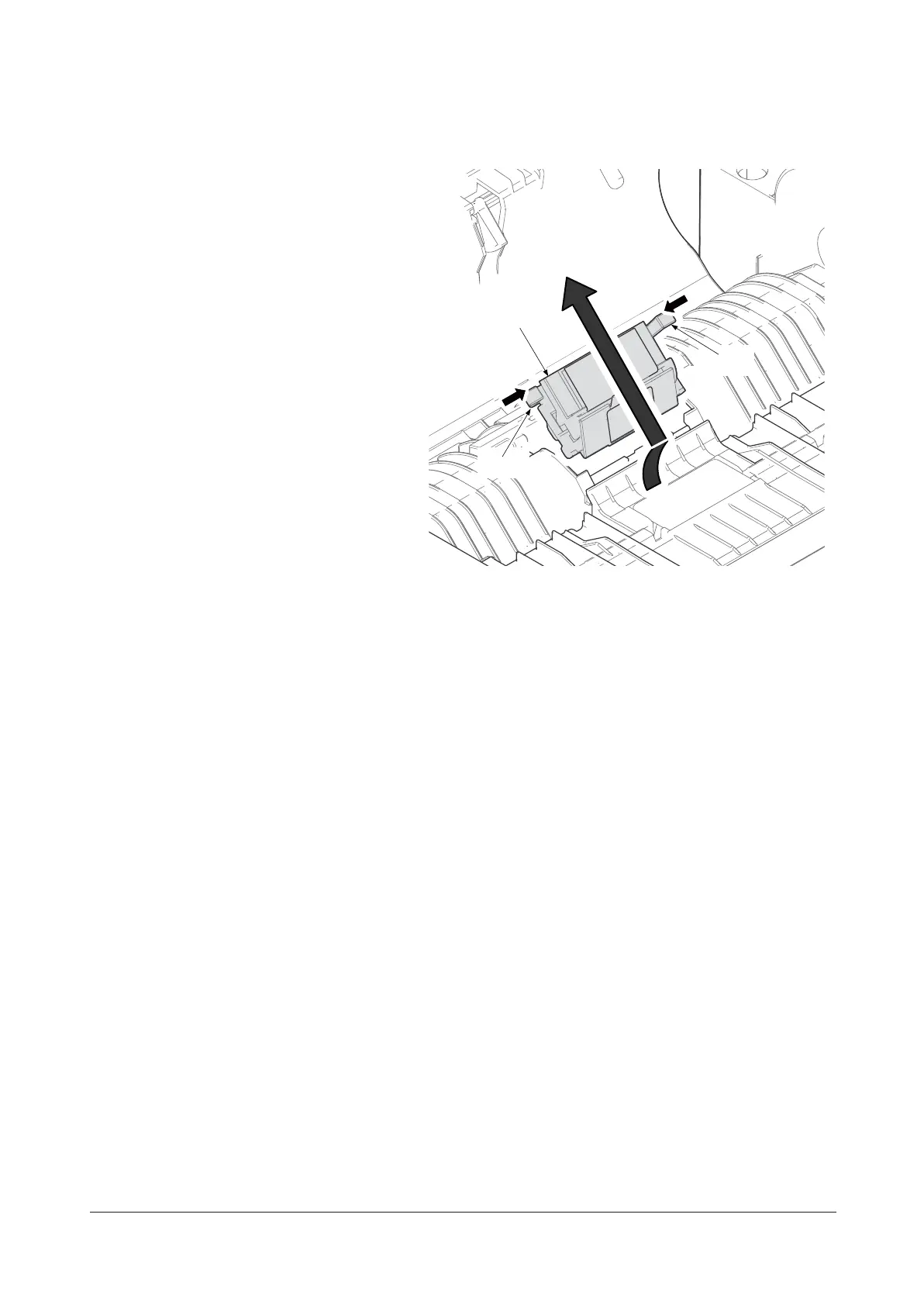

Figure 1-5-128
DP separation
pad assembly
Hook
Hook
Service Manual
Y116540
-5
359
361
