(2) Detaching and refitting the inlet cover and the interface slot cover
Procedure
1. Open the rear cover.
2. Remove the Upper interface cover and
then lower interface cover.
3. Remove the inlet cover.

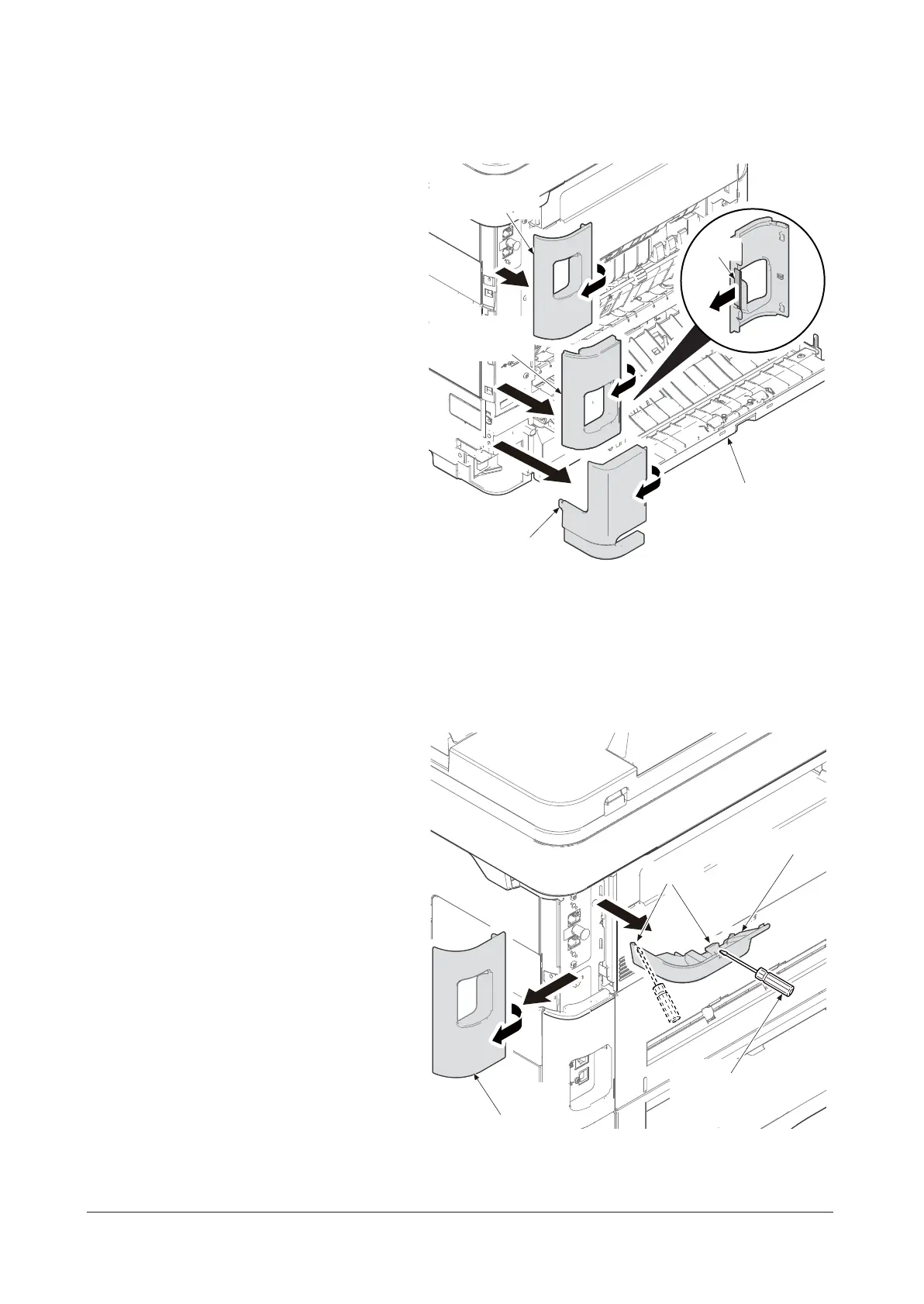

Figure 1-5-143
(3) Detaching and refitting the right stay cover
Procedure
1. Remove the upper interface cover.
2. Release two hooks using a flat screw
driver and remove the right stay cover.
Figure 1-5-144
Rear cover
Hook
Inlet cover
Upper
interface cover
Lower
interface cover
Upper
interface cover
Flat screw driver
Right stay cover
Hooks
