Olivetti d-Copia 4003MF User Manual

1-5-62

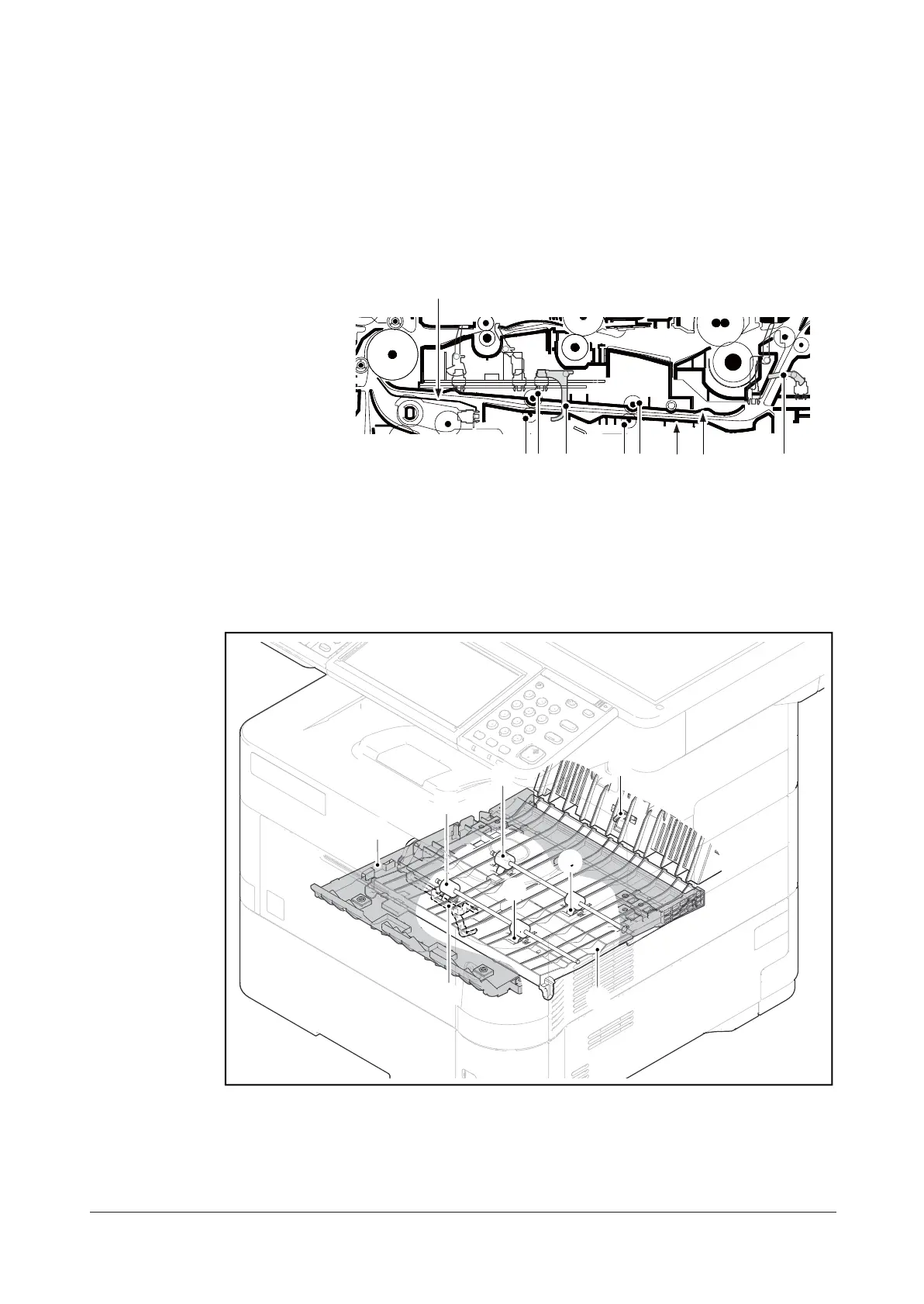

1-5-9 Duplex conveying section
(1) Duplex conveying unit
The duplex conveying section consists of conveying path which sends the paper sent from the eject/feedshift
section to the paper feed/conveying section when duplex printing.
Figure 1-5-104
Figure 1-5-105
31212 4
6 5
7
[Component formation]
1. DU conveying roller
2. DU conveying pulley
3. Actuator (Duplex sensor 1) *2
4. Actuator (Duplex sensor 2)
5. DU base
6. DU lower guide
7. Feed upper guide
1
1
2
2
6
5
4
3
Service Manual
Y116540-5
