(2-1) Detaching and refitting the DP switchback motor
Procedure
1. Open DP top cover.
2. Unhook five hooks and remove DP rear
cover.

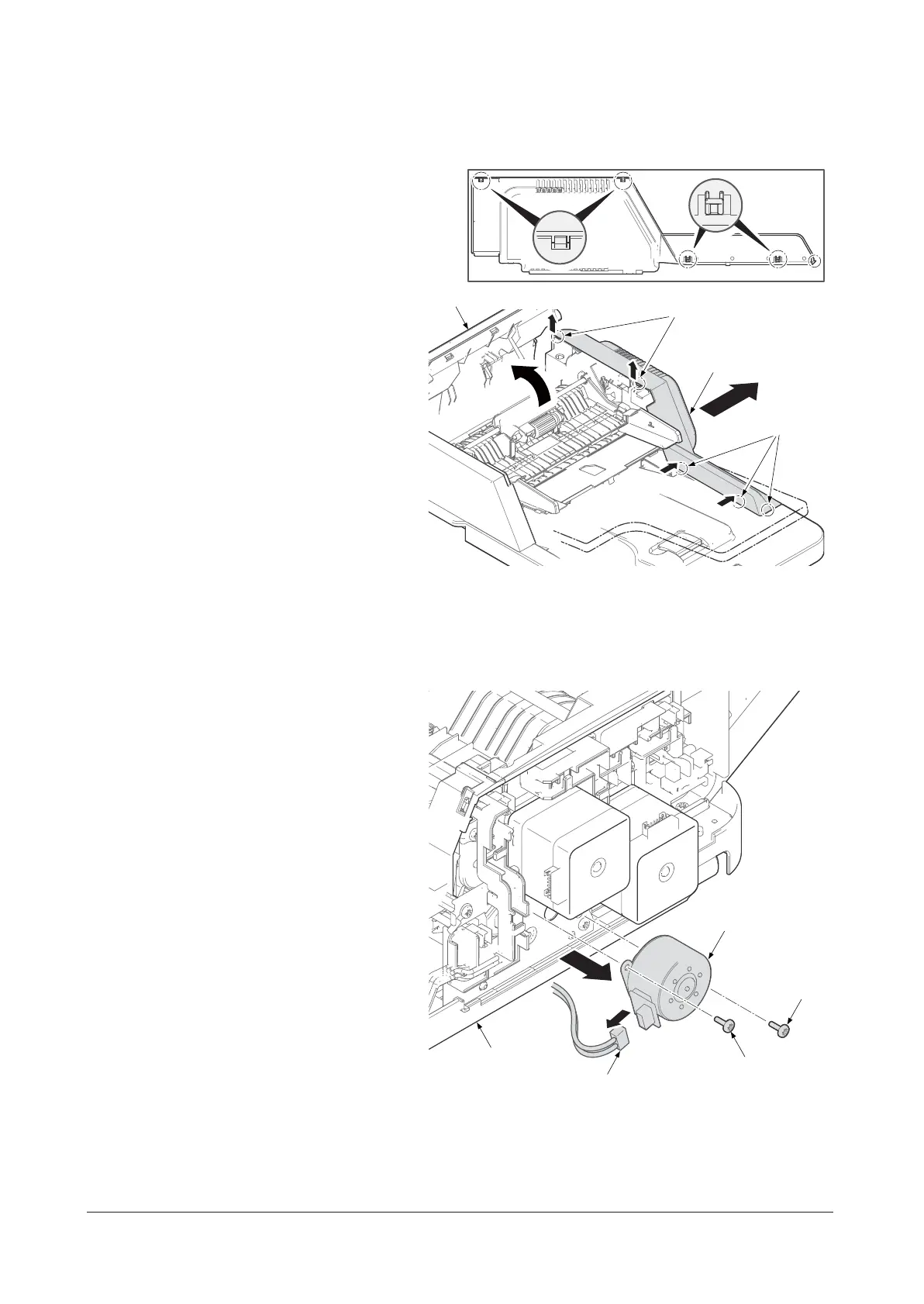

Figure 1-5-132
3. Remove the connector from DP shift-
back motor.
4. Remove two screws and DP shiftback
motor from DP.
5. Check or replace the DP shiftback
motor and refit all the removed parts.
Figure 1-5-133
Hooks
Hooks
DP rear cover
DP top cover
Screw
Screw
DP
DP shiftback motor
