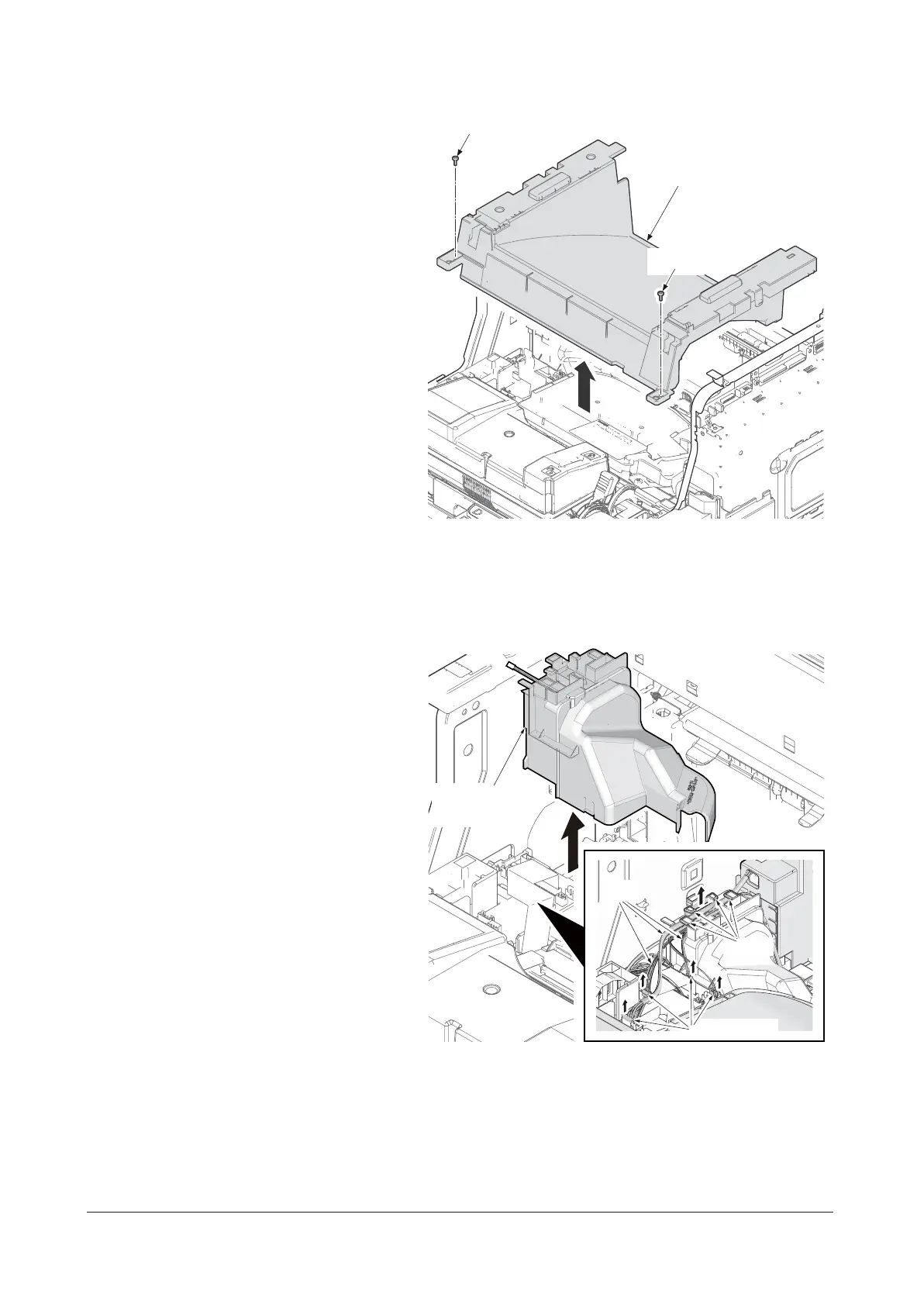

21. Remove two screws.
22. Remove the top tray cover upward.
Figure 2-2-25
23. Remove the connectors from the con-
nect left PWB and then release the
wires from the hooks.
24. Remove the LSU fan motor assembly
upward.
Figure 2-2-26
Screw
Screw
Top tray cover
Connectors
Hooks
Wires
LSU fan motor
assembly
Service Manual
Y116540-5
