Adjustment / Setting
5. Finisher operations
5.1 Entering Finisher Check
1. Call the Service Mode to the screen.
See P.338 of the main body service manual.
2. Touch [Finisher].
3. Touch [CB-FN adjustment].

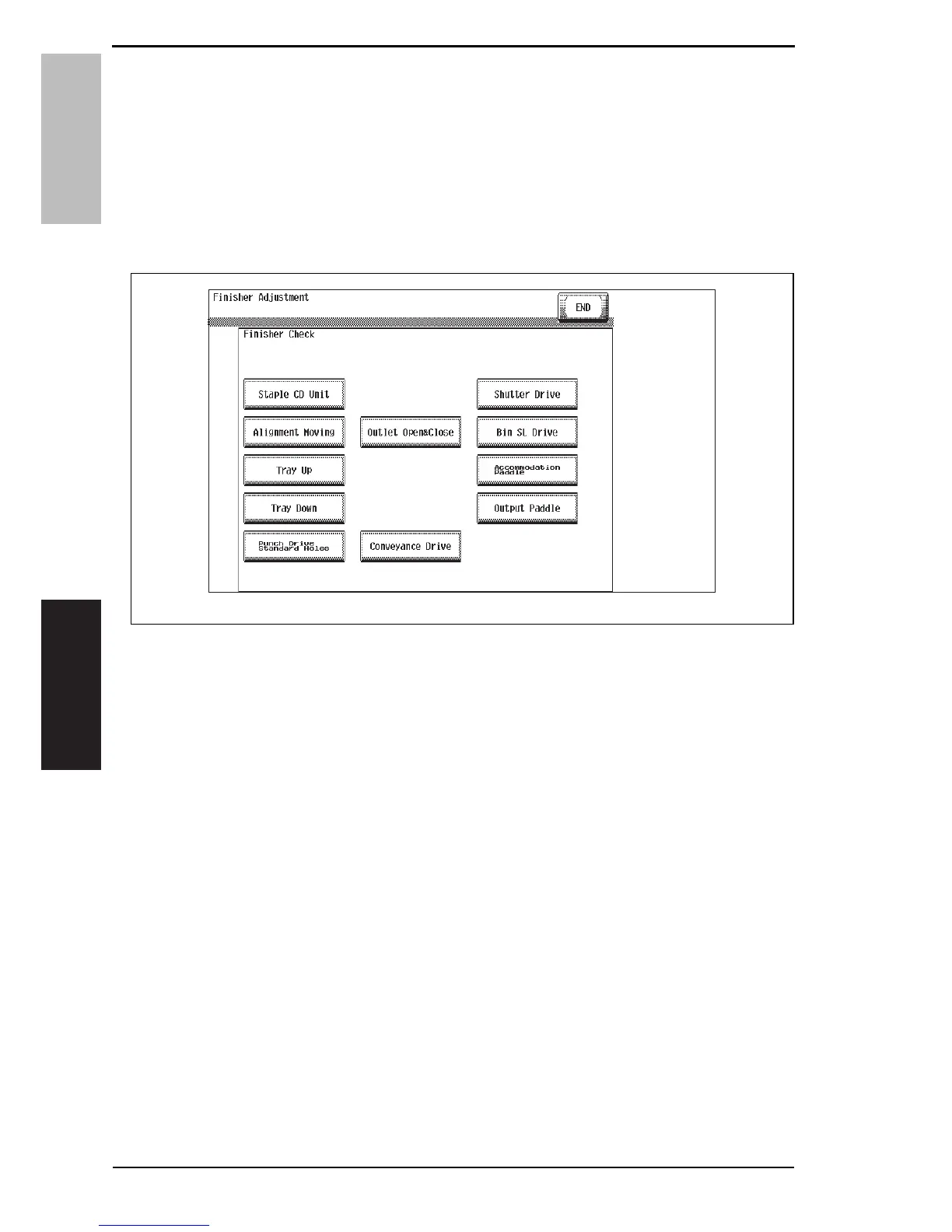

4. Touch [Finisher Check].
5. Touch [Bin SL Drive].
5.2 Finisher Check modes
A. Bin SL Drive
• Bin entrance switching solenoids 1, 2 and 3 switch, in order, at the predetermined times.
o Bin entrance switching solenoid 1 (SD1) activates for the predetermined time.
o Bin entrance switching solenoid 2 (SD2) activates for the predetermined time.
o Bin entrance switching solenoid 3 (SD3) activates for the predetermined time.
o All bin entrance switching solenoids deactivate.
o The operation is finished.
