Olivetti MT-502 - Front Cover;Upper Cover;Paper Output Tray; Cleaning Procedure; Cleaning of the Roller and Roll

Field Service Ver. 2.0 Jan. 2008 2. Other
5
MT-502Maintenance

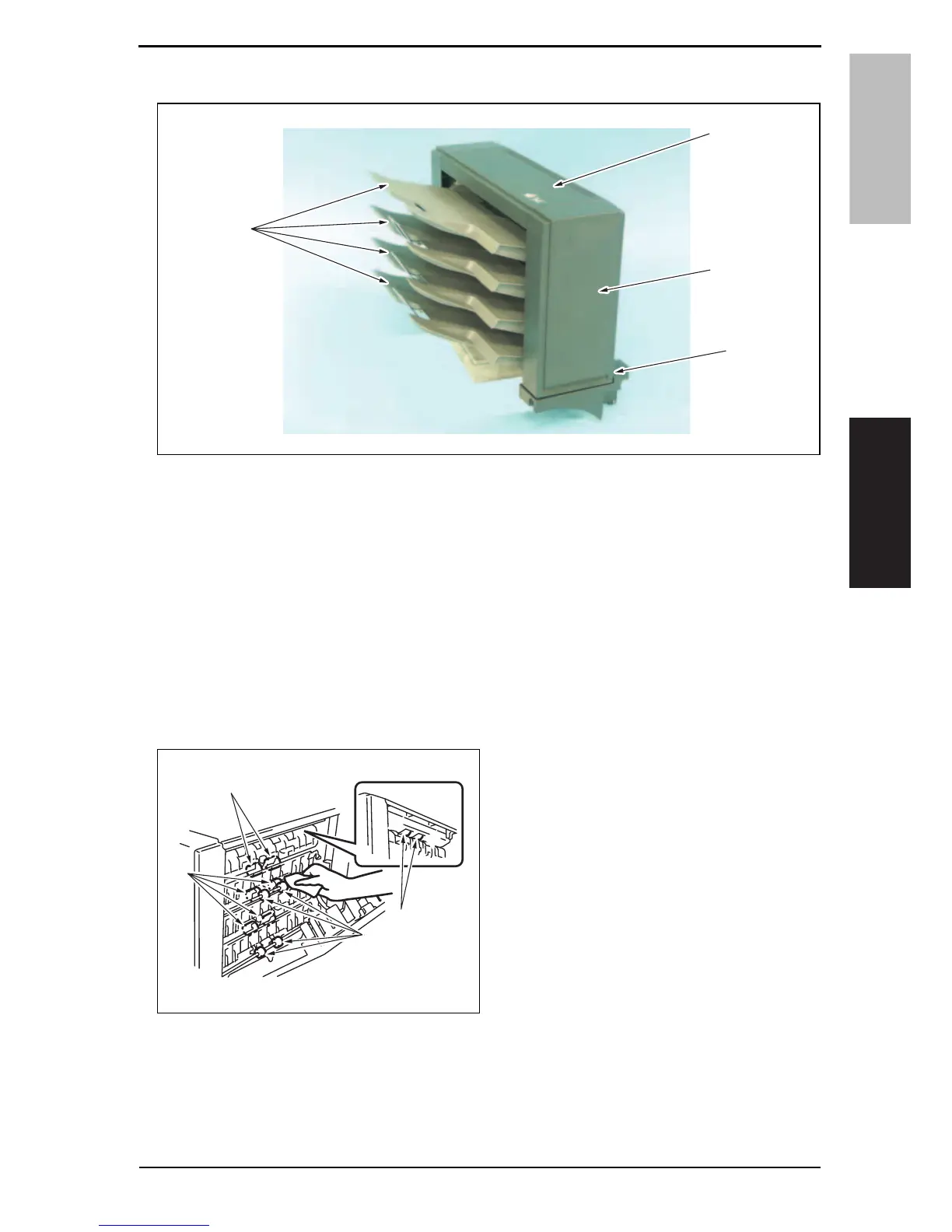

2.3.2 Front cover/Upper cover/Paper output tray
1. Remove the screw [1] and remove the front cover [2].
2. Remove the rear cover.
See P.4
3. Remove the upper cover [3].
4. Remove the paper output trays [4].
2.4 Cleaning procedure
NOTE
• The alcohol described in the cleaning procedure of maintenance represents the
isopropyl alcohol.
2.4.1 Cleaning of the roller and roll
1. Open the right door.
2. Using a cleaning pad dampened with
alcohol, wipe the roller [1] and roll
[2].
4510F2C507DA
[2]
[1]
[3]
[4]
4510F2C500DA
[2]
[2]
[1]
[1]
Y108462-9 Service Manual
