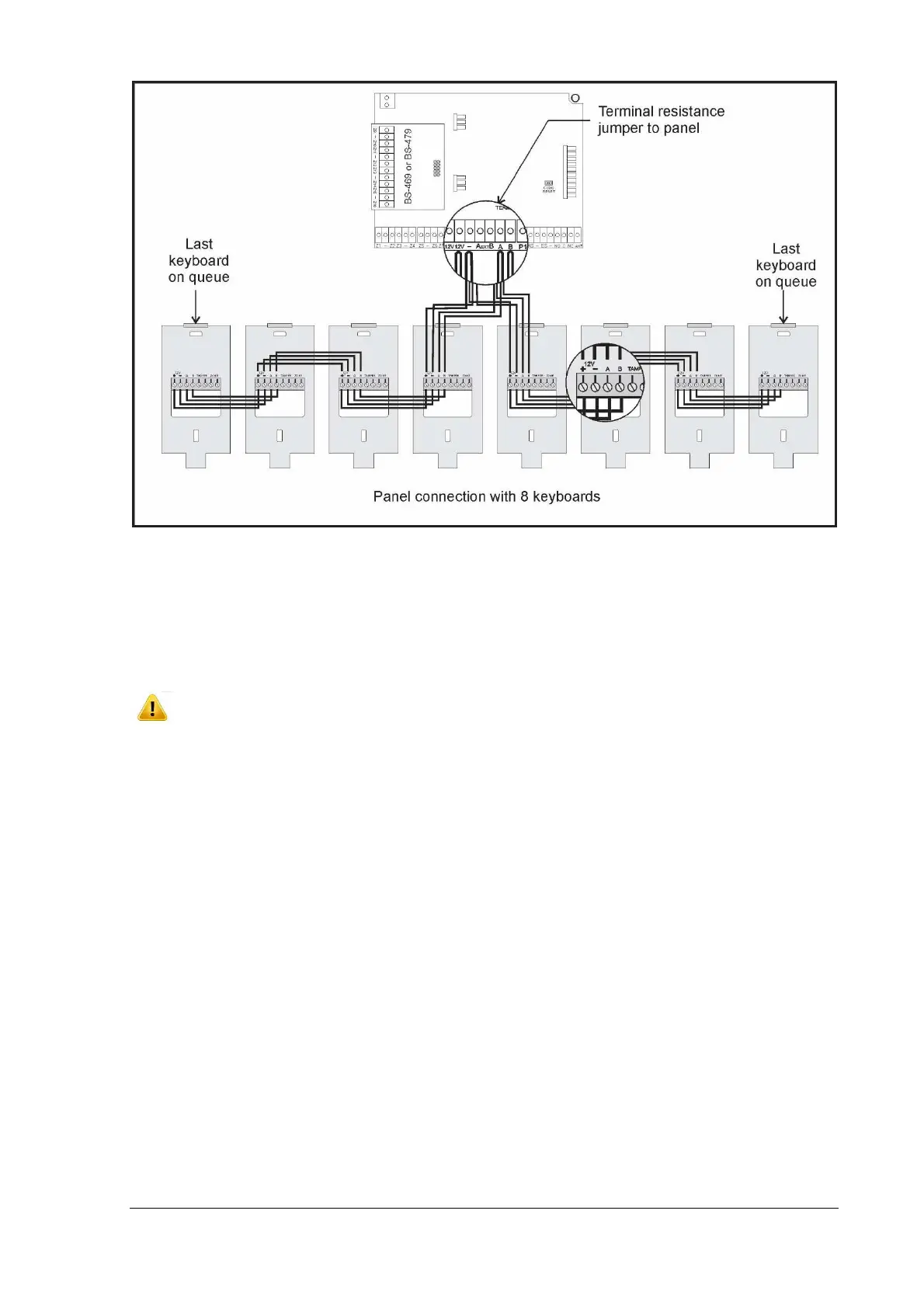

Connecting 8 keyboards to the panel. The cables must be connected in such a way that will permit the
connection of the device one after the other. No terminal should contain 3 cables or more. The jump-
ers of the terminal resistors must be placed only on the two outermost devices. On all the other devic-
es is should be removed or left in a open position.
This same connection can be used if we want to connect 2 to 7 keyboards.
Outputs EXT A, B are not used at present time.
