1. Description
The BS-468/A is an 8 zone burglar alarm panel. Using the special expansion card BS-469 it can be
expanded to 16 zones. Using the special expansion card BS-479, the panel acquires 32 wireless
zones. For its operation, at least one BS-466 keyboard is required. Up-to 8 keyboards can be con-
nected to the panel. Each keyboard has an additional zone for connecting magnetic contacts (zones
17–24). The main board of the panel has port for connecting an YET-205B-630 remote control receiv-
er and an automatic telephone dialler. On the telephone dialler port you can connect a BS-465 wired
PSTN telephone dialer or a BS-464 wireless GSM telephone dialer.

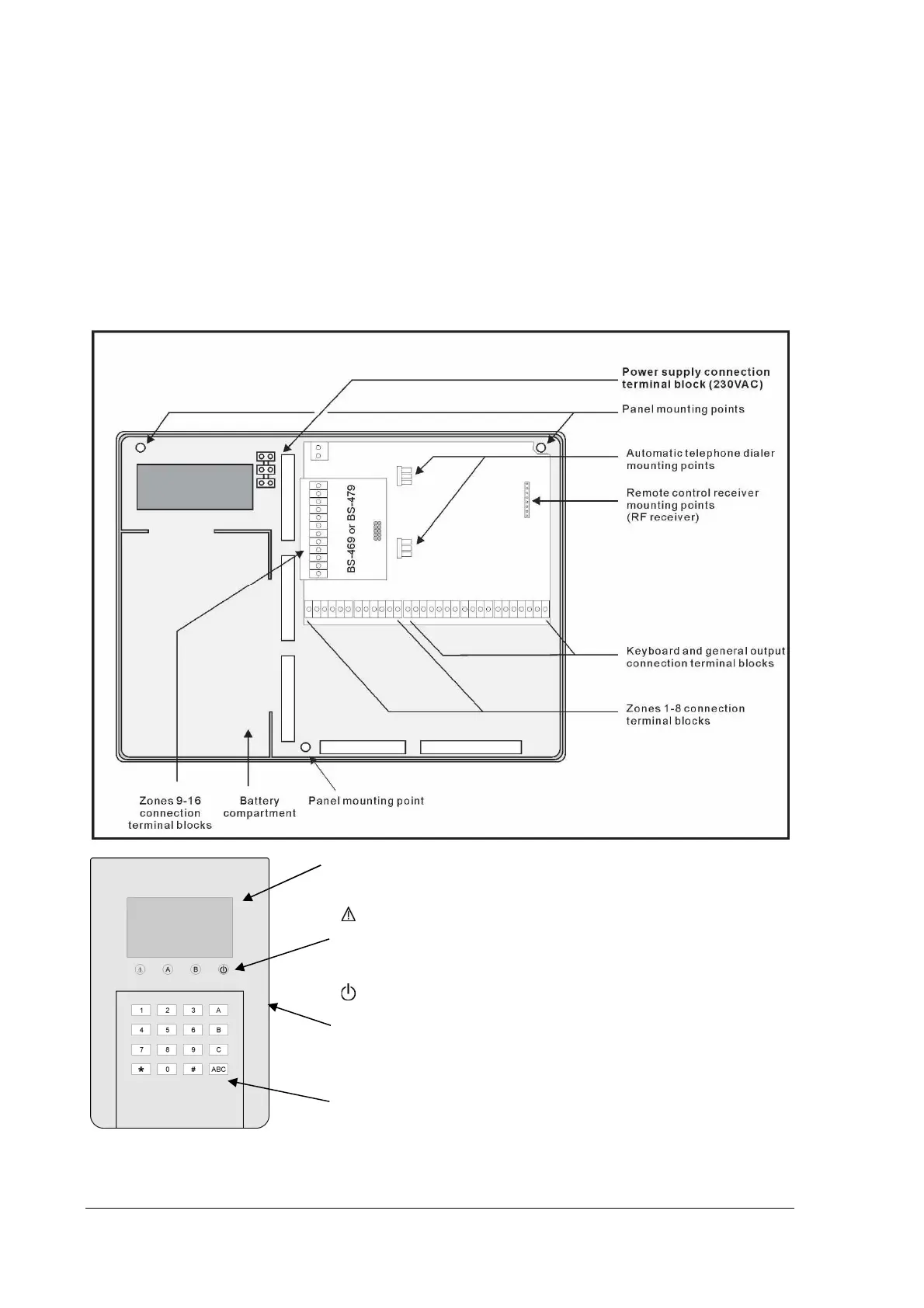

The diagram below shows the interior of the panel and the keyboard.
USB port for panel control
Indication LEDs
Constantly lit means that there is an error,
blinking means that there is an alarm
Α System fully armed
Β System partially armed
The panel power cord is connected
Control keypad
0-9: numbers
“ * ” : Enter button
“ #
ESC
”: ESC button
A,B,C,ABC: Instant Arming without code
C + ABC: Panic signal
Liquid crystal display
