2-2 Operating the MIX slider for reflected light observation

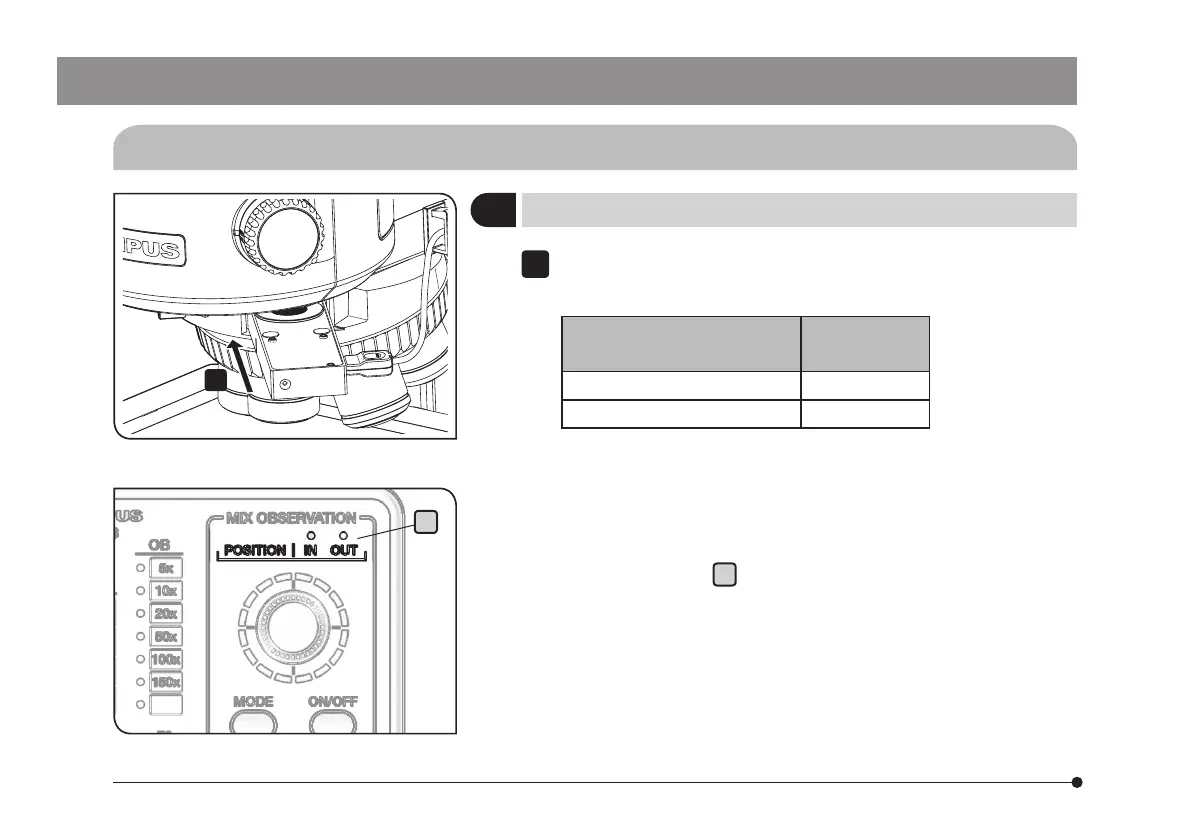

Push the MIX slider for reflected light observation (U-MIXR) in the
second level (position where the clicking sound is heard).
MIX slider for reflected light
observation position
Light path
First level (pulled out) OUT
Second level (pressed in) IN
1
1
Inserting the MIX slider for reflected light observation
The state whether the MIX slider for reflected light observation is
engaged in or removed from the light path can be checked by the
POSITION indicator
a
of the hand switch (BX3M-HS).
