BX3M-CB/CBFM
5 Assembly
5-1 Assembly procedures (BX3M-CBFM only)
This section describes assembly procedures of the BX3M-CBFM. If you use the BX3M-CB, refer to the instruction manual
of BX53M system microscope for assembly procedures of the BX3M-CB.
· Before connecting or disconnecting cables, set the main switch to
(OFF) and unplug the power cord
from the outlet.
· Cables are vulnerable when bent or twisted. Never subject them to excessive force.
· Connect the connectors in the correct orientation paying attention to the shape of the connector.
NOTE
MIX slider for reflected
light observation
U-MIXR
BX3M-RMCBL
Hand switch
BX3M-HS
Hand switch for
motorized nosepiece
BX3M-HSRE
Motorized nosepiece
1

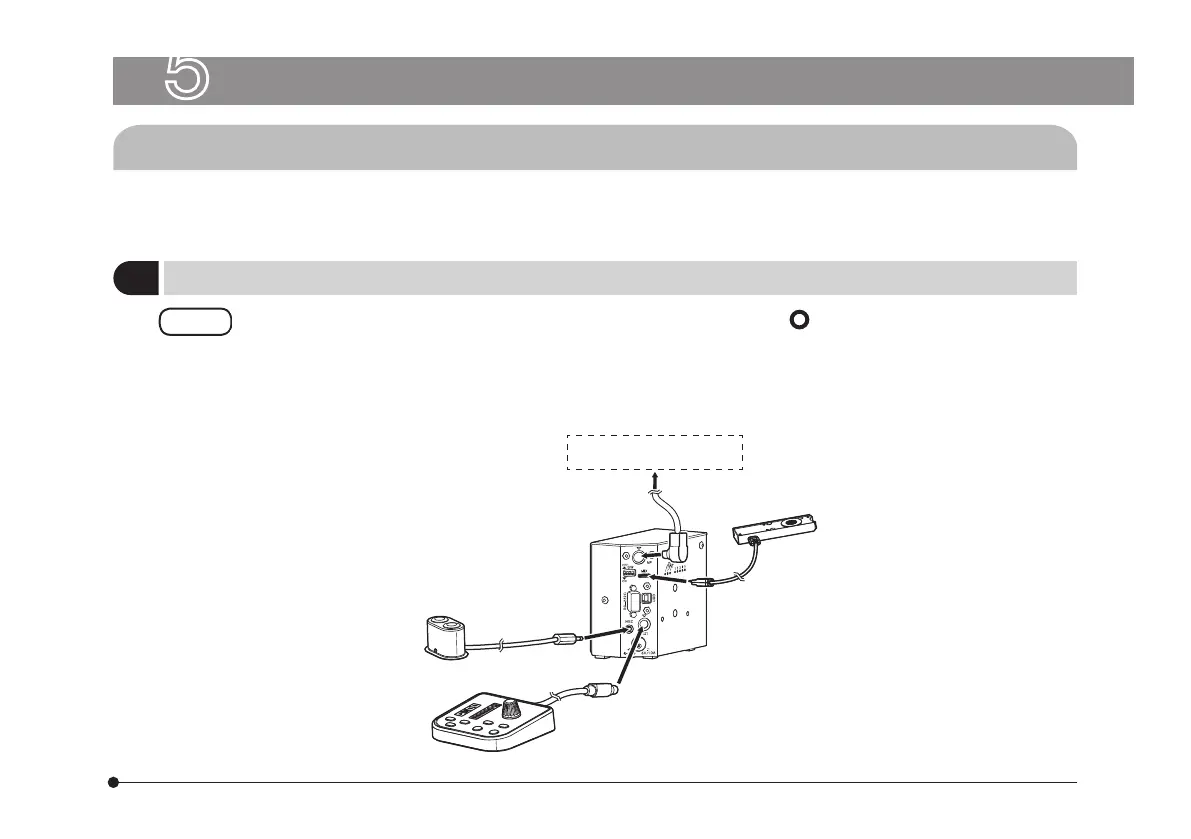

Cable connections
Extension cable for U-MIXR
U-MIXRECBL
