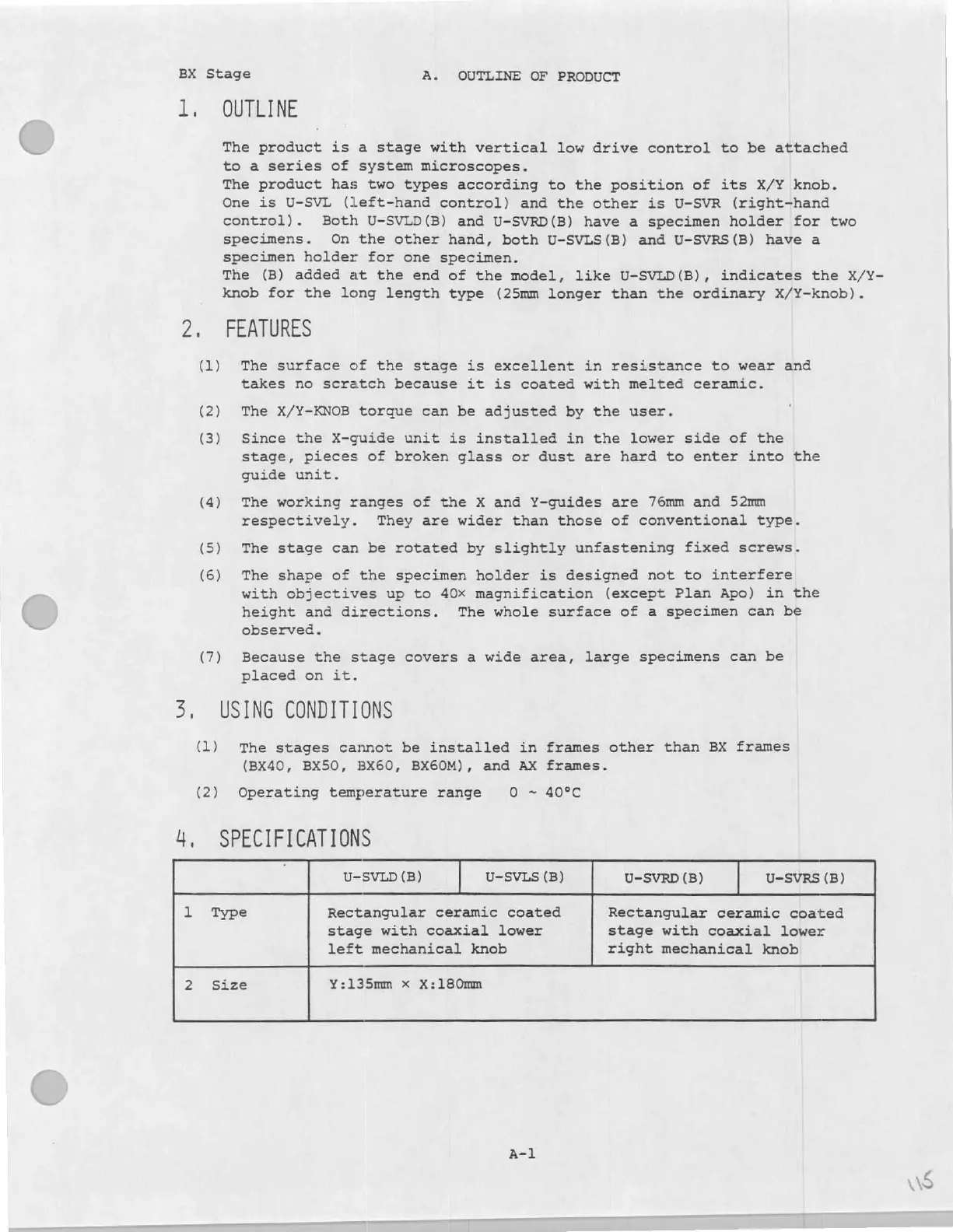

BX
Stage
A.
OUTLINE
OF
PRODUCT
iL
2,
(1)
(2)
(3)
(4)
(5)
(6)
(7)
BR
(1)
(2)
OUTLINE
The product is a stage with vertical low drive control to be attached
to a series of system microscopes.
The product has two types according to the position of its X/Y knob.
One is U-SVL (left-hand control) and the other is U-SVR (right-hand
control). Both U-SVLD(B) and U-SVRD(B) have a specimen holder for two
specimens. On the other hand, both U-SVLS(B) and U-SVRS(B) have a
specimen holder for one specimen.
The (B) added at the end of the model, like U-SVLD(B), indicates the X/Y-
knob for the long length type (25mm longer than the ordinary X/Y-knob).
FEATURES
The surface of the stage is excellent in resistance to wear and
takes no scratch because it is coated with melted ceramic.
The X/Y-KNOB torque can be adjusted by the user.
Since the X-guide unit is installed in the lower side of the
stage, pieces of broken glass or dust are hard to enter into the
guide unit.
The working ranges of the X and Y-guides are 76mm and 52mm
respectively. They are wider than those of conventional type.
The stage can be rotated by slightly unfastening fixed screws.
The shape of the specimen holder is designed not to interfere
with objectives up to 40x magnification (except Plan Apo) in the
height and directions. The whole surface of a specimen can be
observed.
Because the stage covers a wide area, large specimens can be
placed on it.
USING CONDITIONS
The stages cannot be installed in frames other than BX frames
(BX40, BX50, BX60, BX60M), and AX frames.
Operating temperature range 0 ~ 40°C
4, SPECIFICATIONS
U-SVLD (B) U-SVLS (B) U-SVRD (B) U-SVRS (B)
1 Type Rectangular ceramic coated Rectangular ceramic coated
stage with coaxial lower stage with coaxial lower
left mechanical knob right mechanical knob
2 Size Y:135mm x X:180mm
