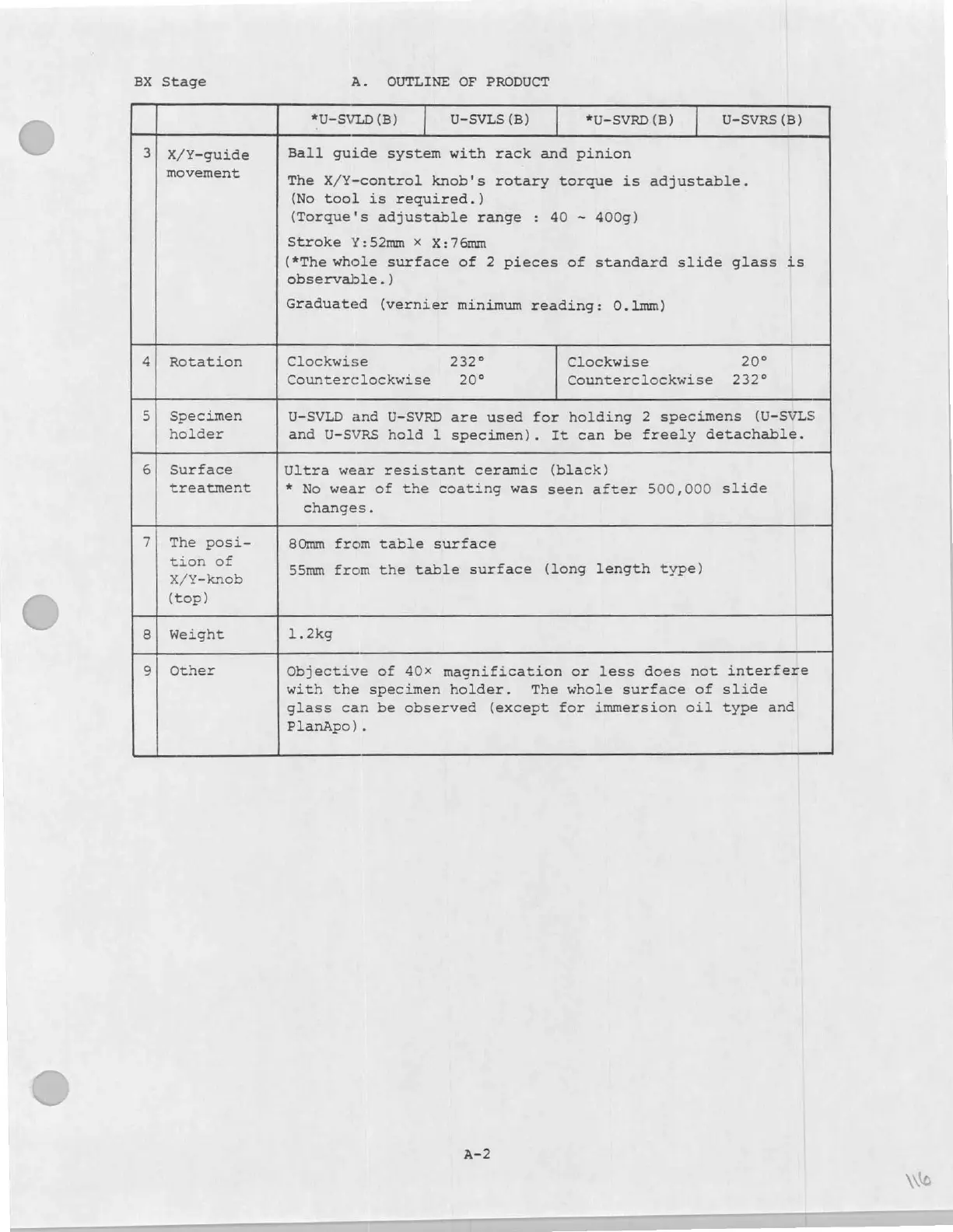

BX Stage A. OUTLINE OF PRODUCT
*U-SVLD (B) U-SVLS (B) *U-SVRD (B) U-SVRS (B)
3| X/Y-guide
movement
Ball guide system with rack and pinion
The X/Y-control knob's rotary torque is adjustable.
(No tool is required.)
(Torque's adjustable range : 40 ~ 400g)
Stroke Y:52mm X X:76mm
(*The whole surface of 2 pieces of standard slide glass is
observable.)
Graduated
(vernier
minimum
reading:
0.1mm)
4| Rotation Clockwise 232° Clockwise 202
Counterclockwise 20º Counterclockwise 232º
5| Specimen
holder
U-SVLD and U-SVRD are used for holding 2 specimens (U-SVLS
and U-SVRS hold 1 specimen). It can be freely detachable.
6| Surface
Ultra wear resistant ceramic (black)
treatment * No wear of the coating was seen after 500,000 slide
changes.
7| The posi- 80mm from table surface
tion of
1 urface (long length type)
X/Y-knob 55mm from the table s ( g g УР
(top)
8| Weight 1.2kg
9| Other Objective of 40x magnification or less does not interfere
with the specimen holder. The whole surface of slide
glass
can be observed (except for immersion oil type and
PlanApo).
