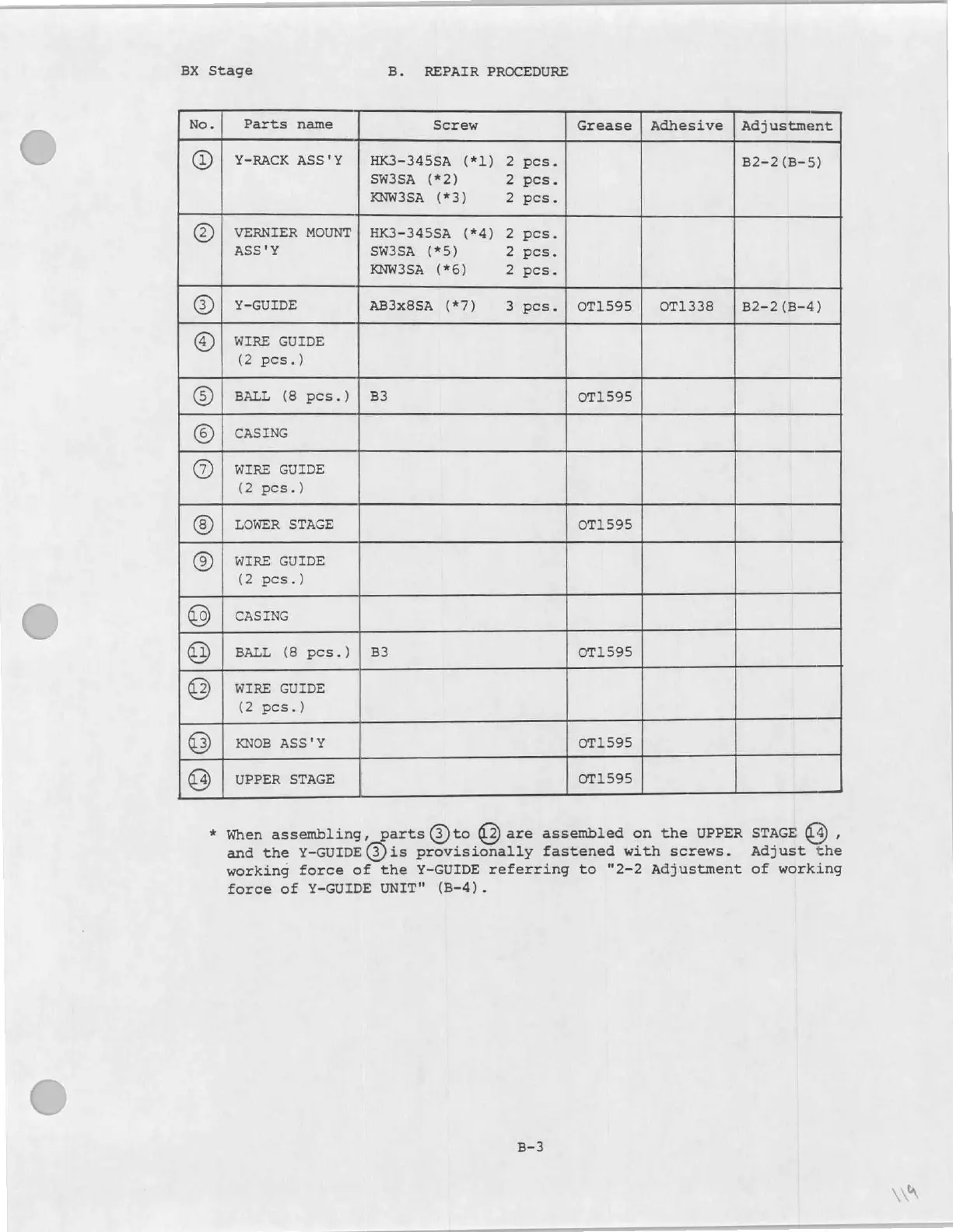

BX Stage B. REPAIR PROCEDURE
No. Parts name Screw Grease | Adhesive | Adjustment
(Ď | Y-RACK ASS'Y | HK3-345SA (*1) 2 pes. B2-2 (B-5)
SW3SA (*2) 2 pcs.
KNW3SA (*3) 2 pcs.
@)| VERNIER MOUNT} HK3-345SA (*4) 2 pcs.
ASS'Y SW3SA (*5) 2 pes.
KNW3SA (*6) 2 pcs.
© | Y-GUIDE AB3x8SA (*7) 3 pcs. | OT1595 | OT1338 |B2-2(B-4)
(© | WIRE GUIDE
(2 pcs.)
(© | BALL (8 pes.) | B3 OT1595
© | casıns
(D | WIRE cuIDE
(2 pcs.)
LOWER STAGE OT1595
(© | WIRE GUIDE
(2 pcs.)
(0 | casıns
@ | BALL (8 pes.) | 53 οτ1595
(2 | WIRE GUIDE
(2 pes.)
(3 | KNoB ass'y OT1595
(4) | UPPER STAGE OT1595
* When assembling, parts ©to © are assembled on the UPPER STAGE © A
and the Y-GUIDE (8) is provisionally fastened with screws. Adjust the
working force of the Y-GUIDE referring to "2-2 Adjustment of working
force of Y-GUIDE UNIT" (B-4).
