р
<
ВХ
Stage
В.

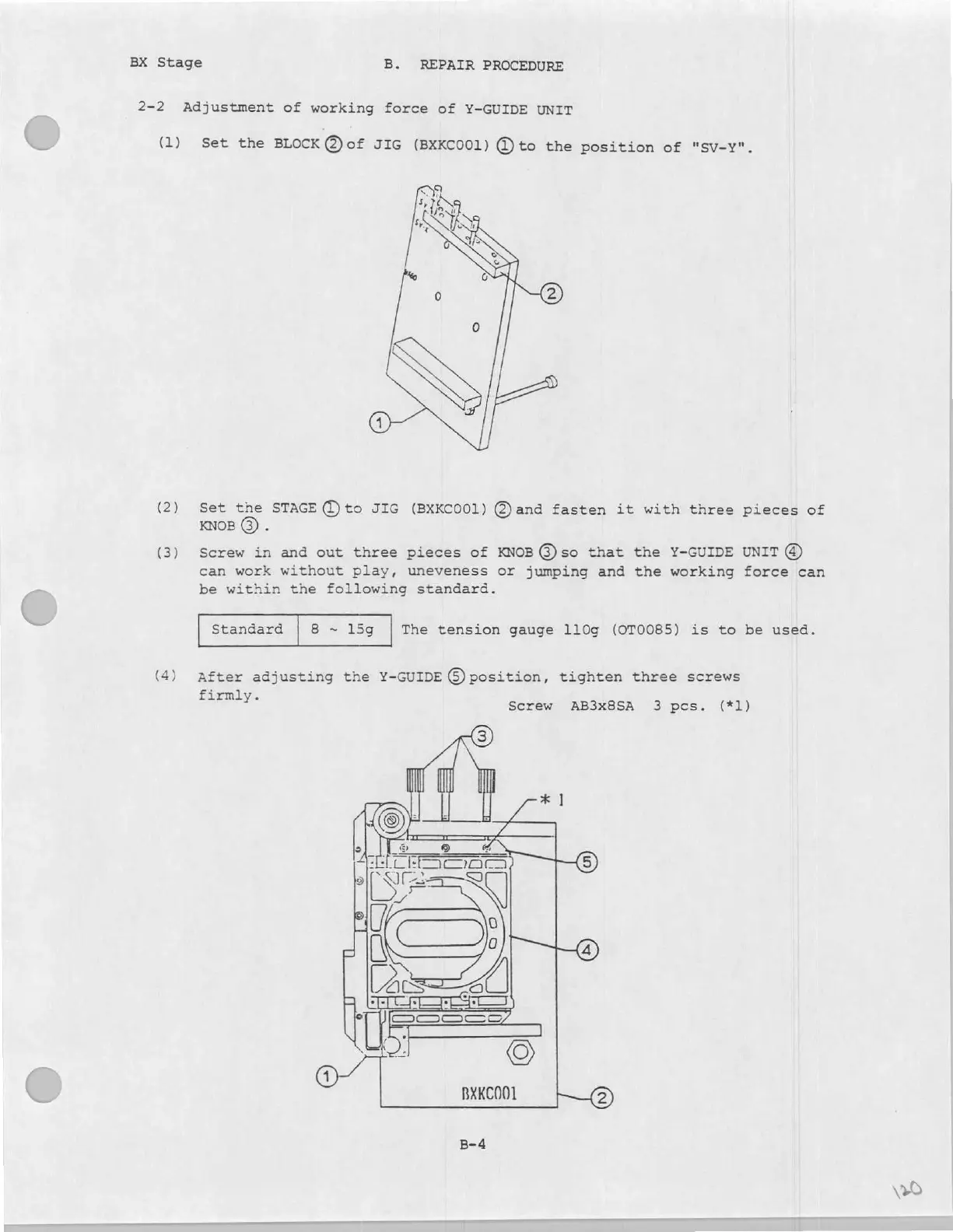

REPAIR
PROCEDURE
2-2
Adjustment
of
working
force
of
Y-GUIDE
UNIT
(1)
Set
the
BLOCK
(2)
of
JIG
(BXKCOO1)
©
to
the
position
of
"Sv-y",
(2) Set © STAGE © to JIG (BXKC001) © and fasten it with three pieces of
KNOB
(3) Screw in and out three pieces of KNOB (3)so that the Y-GUIDE UNIT ©
can work without play, uneveness or jumping and the working force can
be within the following standard.
Standard 8 - 15а The tension gauge 110g (OT0085) is to be used.
(4) After adjusting the Y-GUIDE ©) position, tighten three screws
firmly.
y Screw AB3x8SA 3 pcs. (*l)
