BX Stage B. REPAIR PROCEDURE

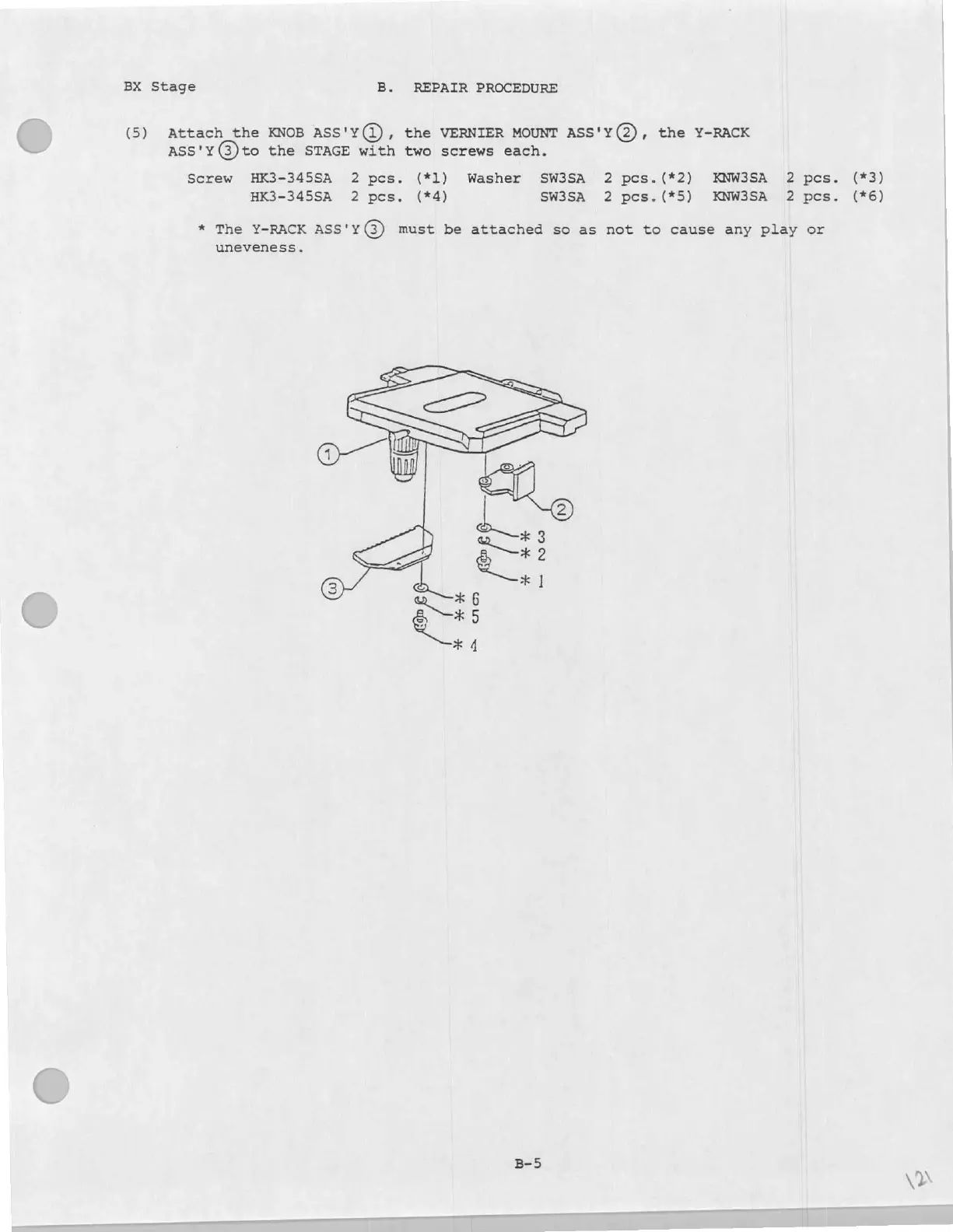

(5) Attach the KNOB ASS'Y(1), the VERNIER MOUNT ASS'Y(2), the Y-RACK
ass'y @)to the STAGE with two screws each.
Screw HK3-345SA 2 pcs. (*1)
HK3-345SA 2 pcs. (*4)
* The Y-RACK ass'y @) must be attached so as not to cause any play or
uneveness.
Washer SW3SA 2 pcs.(*2) KNW3SA 2 pcs.
SW3SA 2 pcs.(*5) KNW3SA 2 pcs.
(*3)
(*6)
WA
