BX Stage
Bi
REPAIR PROCEDURE

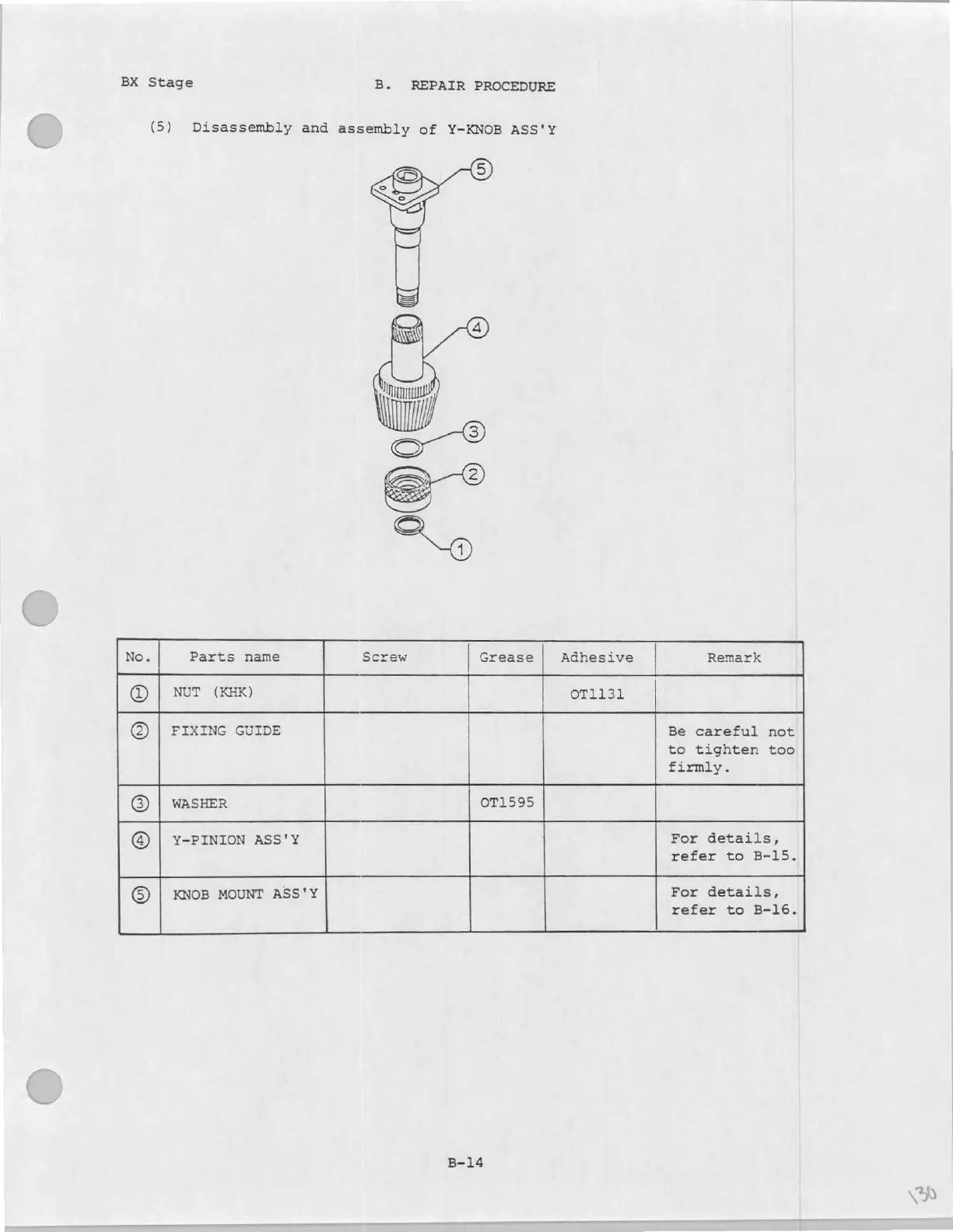

(5) Disassembly and assembly of Y-KNOB ASS'Y
No. Parts name Screw Grease Adhesive Remark
© | NUT (KHK) OT1131
© | FIXING GUIDE Be careful not
to tighten too
firmly.
© | WASHER OT1595
(© | Y-PINION ASS'Y For details,
refer to B-15.
KNOB MOUNT ASS'Y
For details,
refer to B-16.
B-14
