BX Stage
(6)
B. REPAIR PROCEDURE

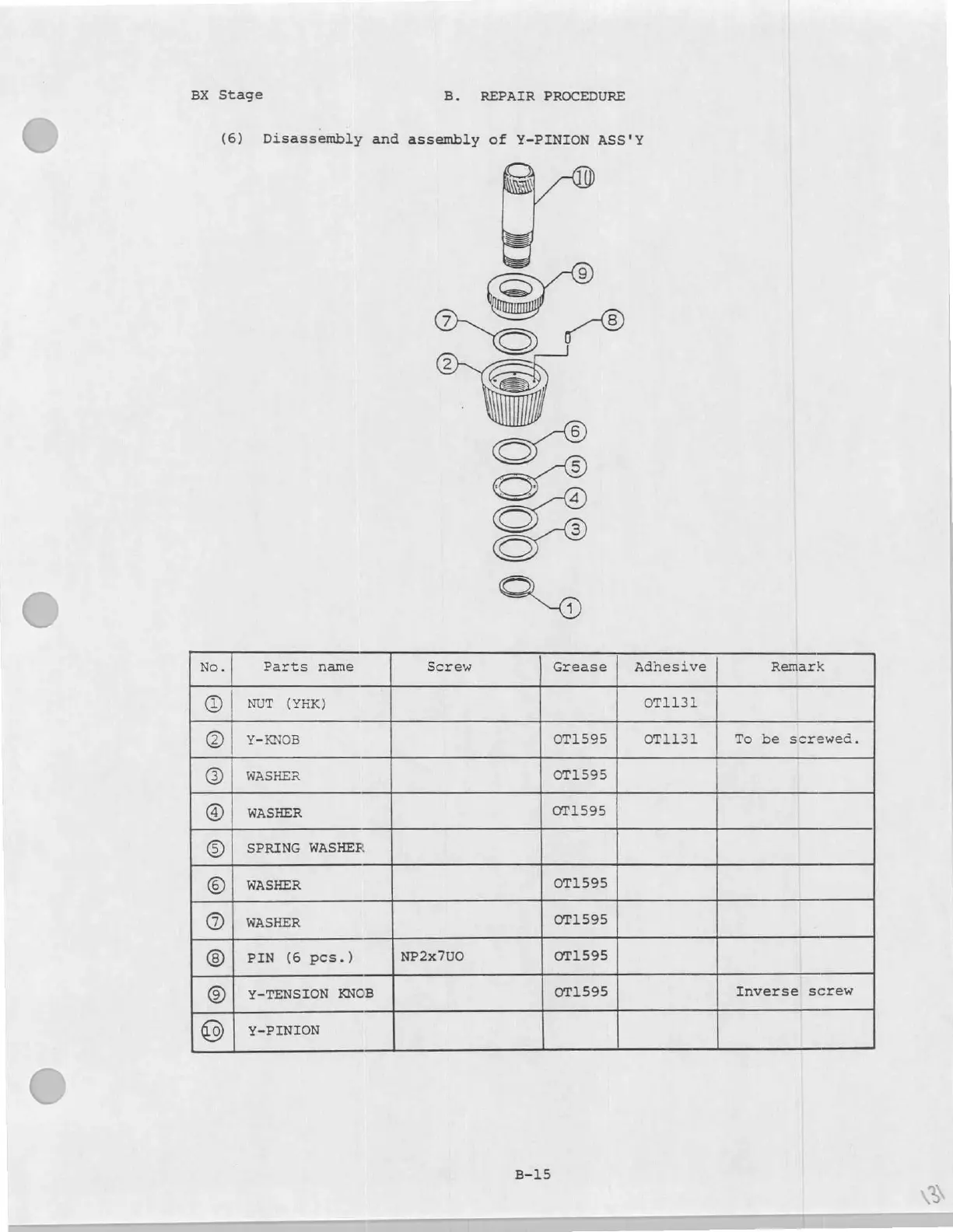

Disassembly and assembly of Y-PINION ASS'Y
Y-PINION
No. Parts name Screw Grease Adhesive Remark
© | NUT (YEK) OT1131
© | Y-KNOB OT1595 OT1131 To be screwed.
@ | WASHER OT1595
@ | WASHER OT1595
© | SPRING WASHER
(© | WASHER OT1595
@
|
WASHER
OT1595
PIN (6 pcs.) NP2x7U0 OT1595
©
|
Y-TENSION
KNOB
OT1595
Inverse
screw
©
B-15
