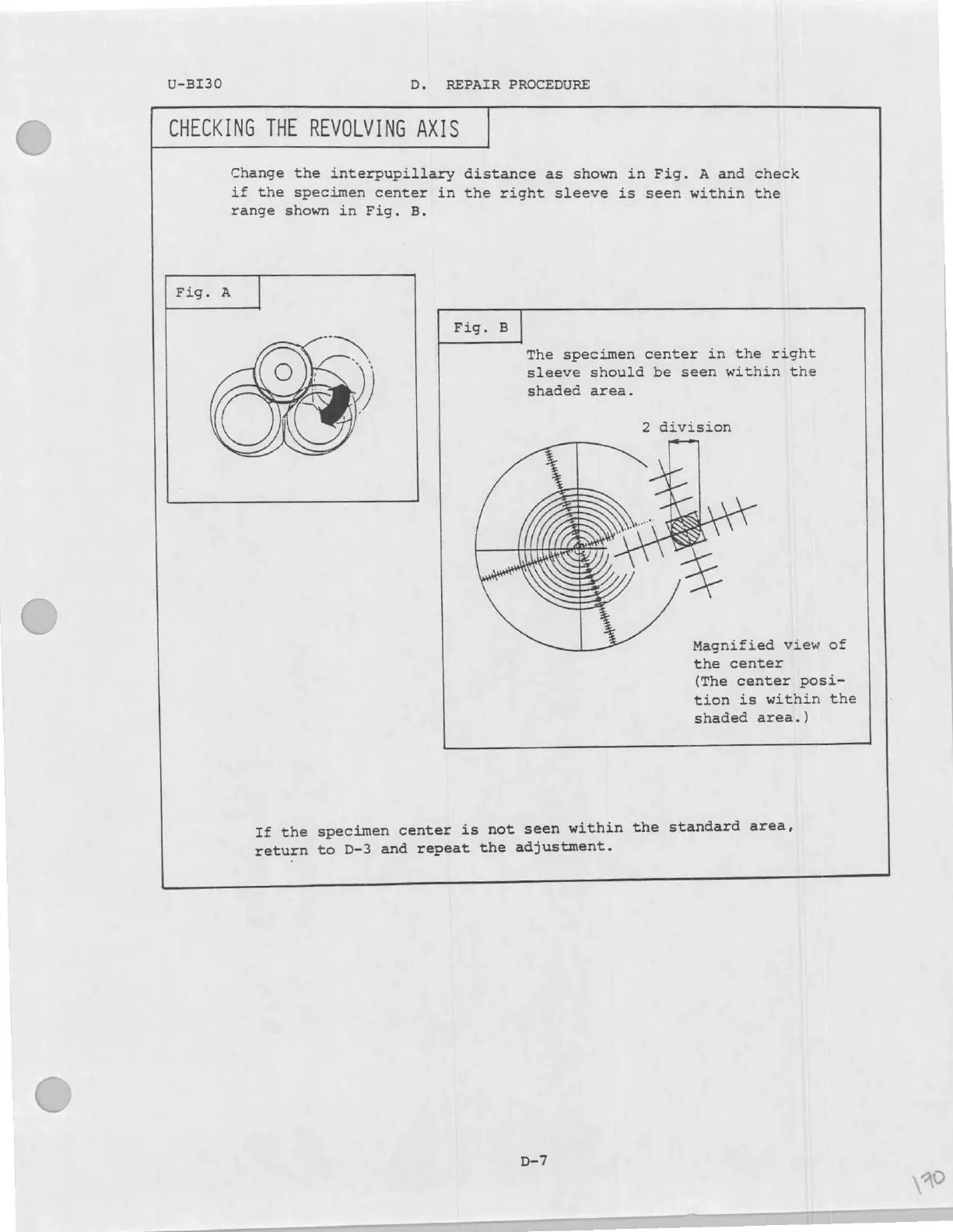

U-BI30 D. REPAIR PROCEDURE
CHECKING THE REVOLVING AXIS
Change the interpupillary distance as shown in Fig. A and check
if the specimen center in the right sleeve is seen within the
range shown in Fig. B.
Fig. A
Fig. B
The specimen center in the right
sleeve should be seen within the
shaded area.
2 division
Magnified view of
the center
(The center posi-
tion is within the
shaded area.)
If
the
specimen
center
is
not
seen
within
the
standard
area,
return
to
D-3
and
repeat
the
adjustment.
