U-BI30
D.
REPAIR
PROCEDURE

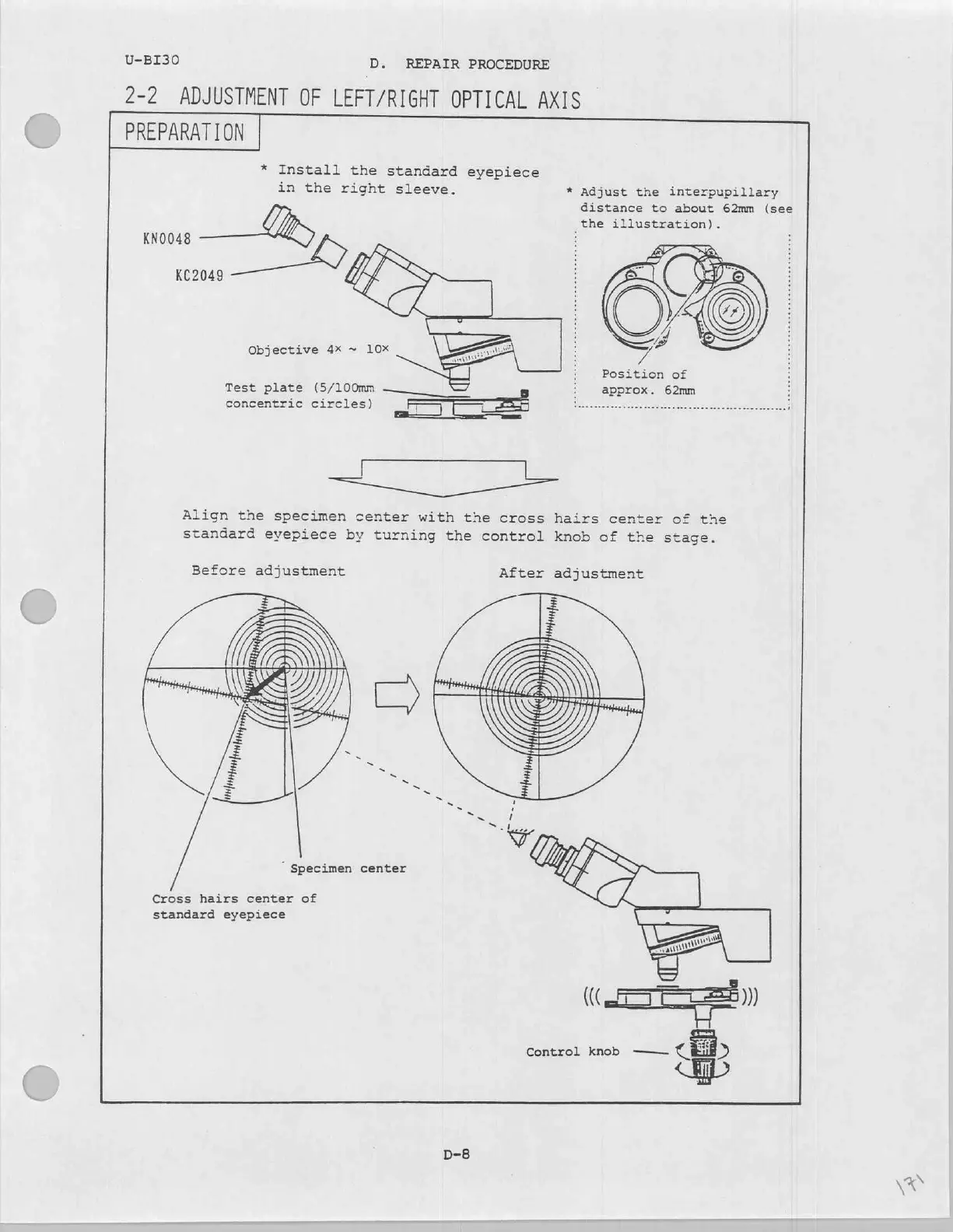

2-2
ADJUSTMENT
OF
LEFT/RIGHT
OPTICAL
AXIS
PREPARATION
*
Install
the
standard
eyepiece
in
the
right
sleeve.
*
Adjust
the
interpupillary
distance to about 62mm (see
the illustration).
KN0048
ο...
i
:
KC2049
Objective 4x ~ 10x
Position of
Test plate (5/100mm approx. 62mm
concentric circles)
Align
the
specimen
center
with
the
cross
hairs
center
of
the
standard
evepiece
by
turning
the
control
knob
of
the
stage.
Before
adjustment
After
adjustment
Specimen center
Cross hairs center of
standard eyepiece
Control knob — =
