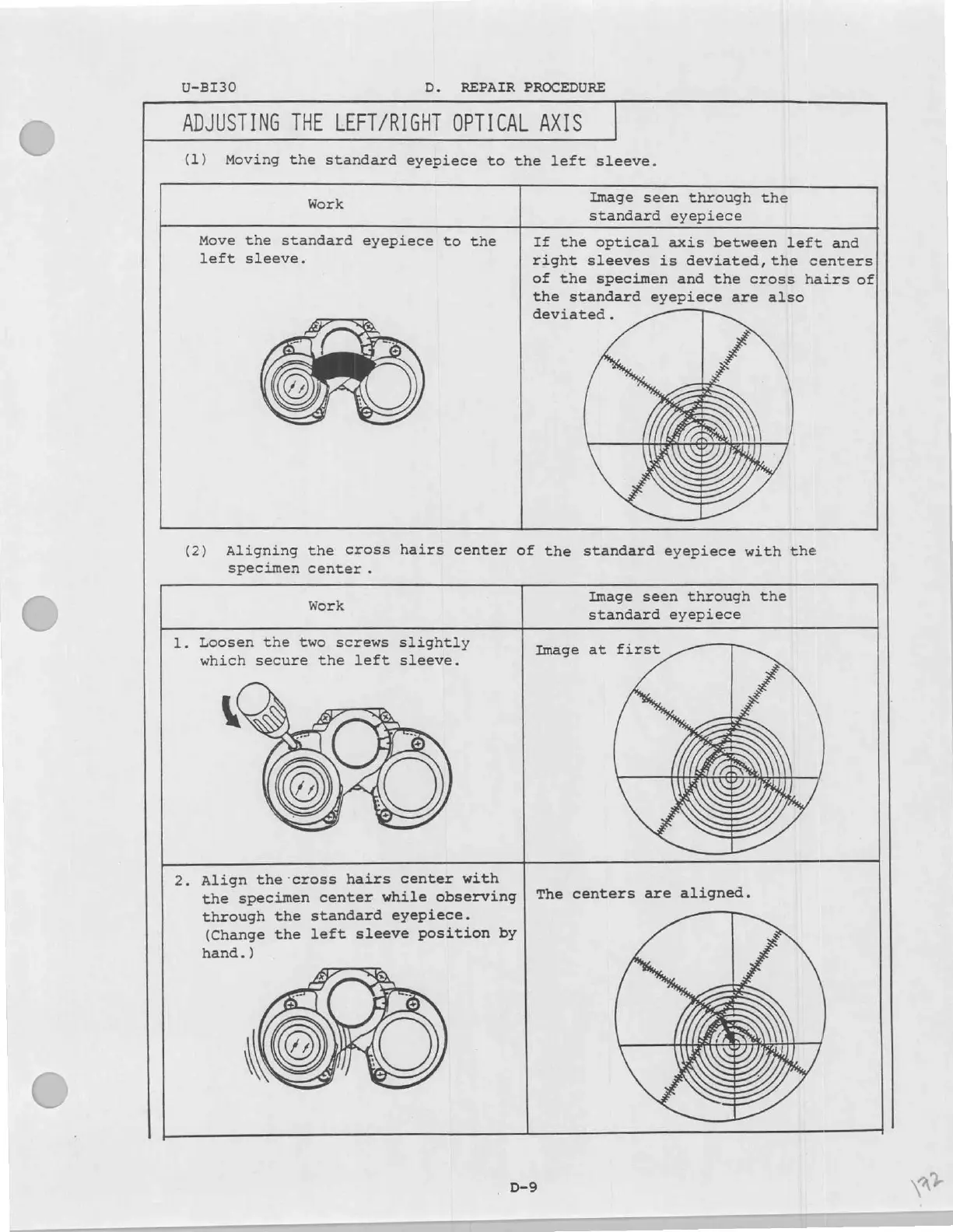

U-BI30 D. REPAIR PROCEDURE
ADJUSTING THE LEFT/RIGHT OPTICAL AXIS
(1) Moving the standard eyepiece to the left sleeve.
Work
Image seen through the
standard eyepiece
Move the standard eyepiece to the
left sleeve.
If the optical axis between left and
right sleeves is deviated, the centers
of the specimen and the cross hairs of
the standard eyepiece are also
deviated.
(2) Aligning the cross hairs center of the standard eyepiece with the
specimen center.
Work
Image seen through the
standard eyepiece
1. Loosen the two screws slightly
which secure the left sleeve.
Image at first
2. Align the cross hairs center with
the specimen center while observing
through the standard eyepiece.
(Change the left sleeve position by
hand.)
The centers are aligned.
