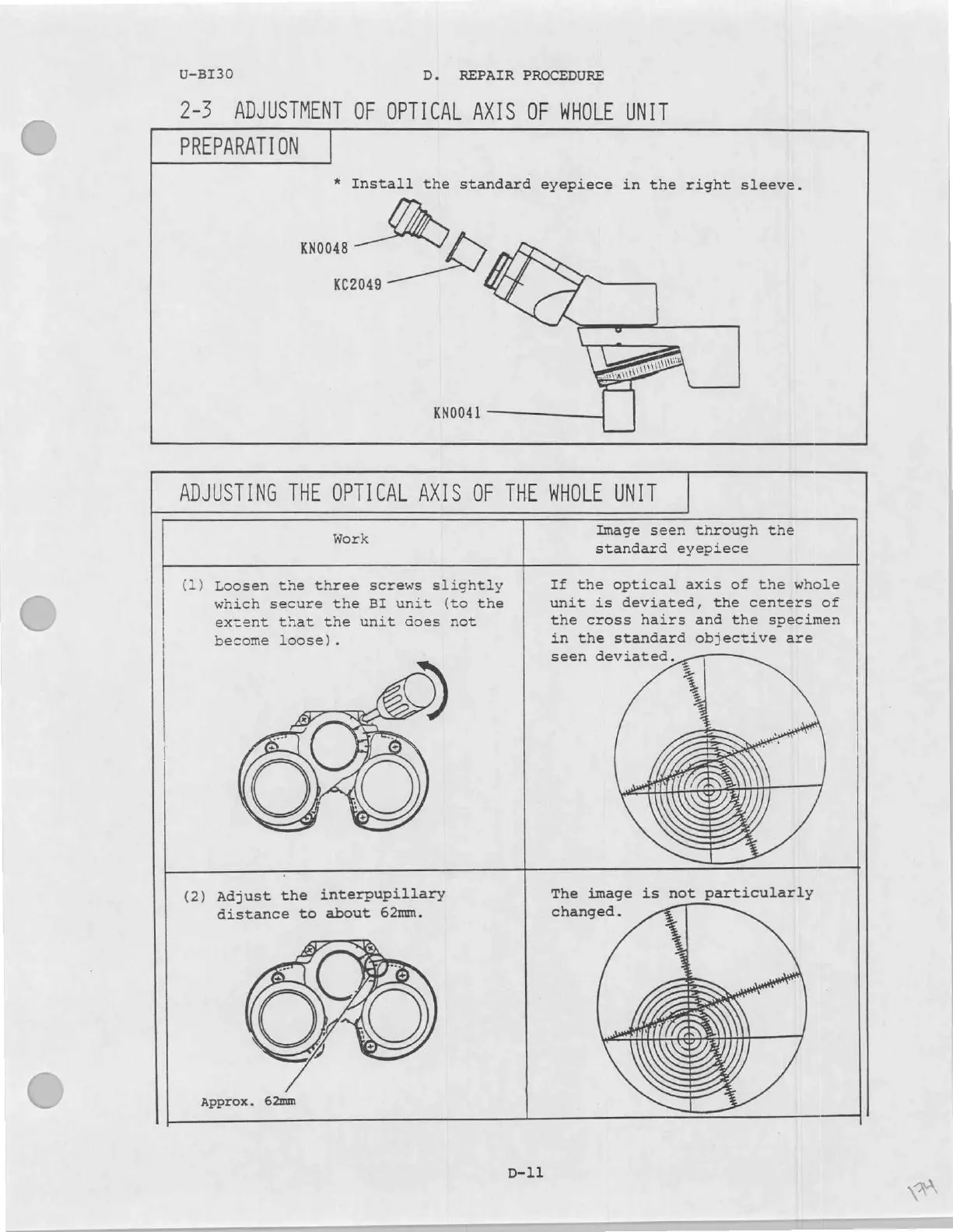

U-BI30 D. REPAIR PROCEDURE
2-3 ADJUSTMENT OF OPTICAL AXIS OF WHOLE UNIT
PREPARATION
* Install the standard eyepiece in the right sleeve.
KN0048 — >
KC2049
い NN
me
si
KN0041 |
ADJUSTING THE OPTICAL AXIS OF THE WHOLE UNIT
Image seen through the
Work
standard eyepiece
(1) Loosen the three screws slightly If the optical axis of the whole
which secure the BI unit (to the unit is deviated, the centers of
extent that the unit does not the cross hairs and the specimen
become loose). in the standard objective are
seen deviated.
(2)
Adjust
the
interpupillary
distance
to
about
62mm.
Approx. 62mm
0-11
