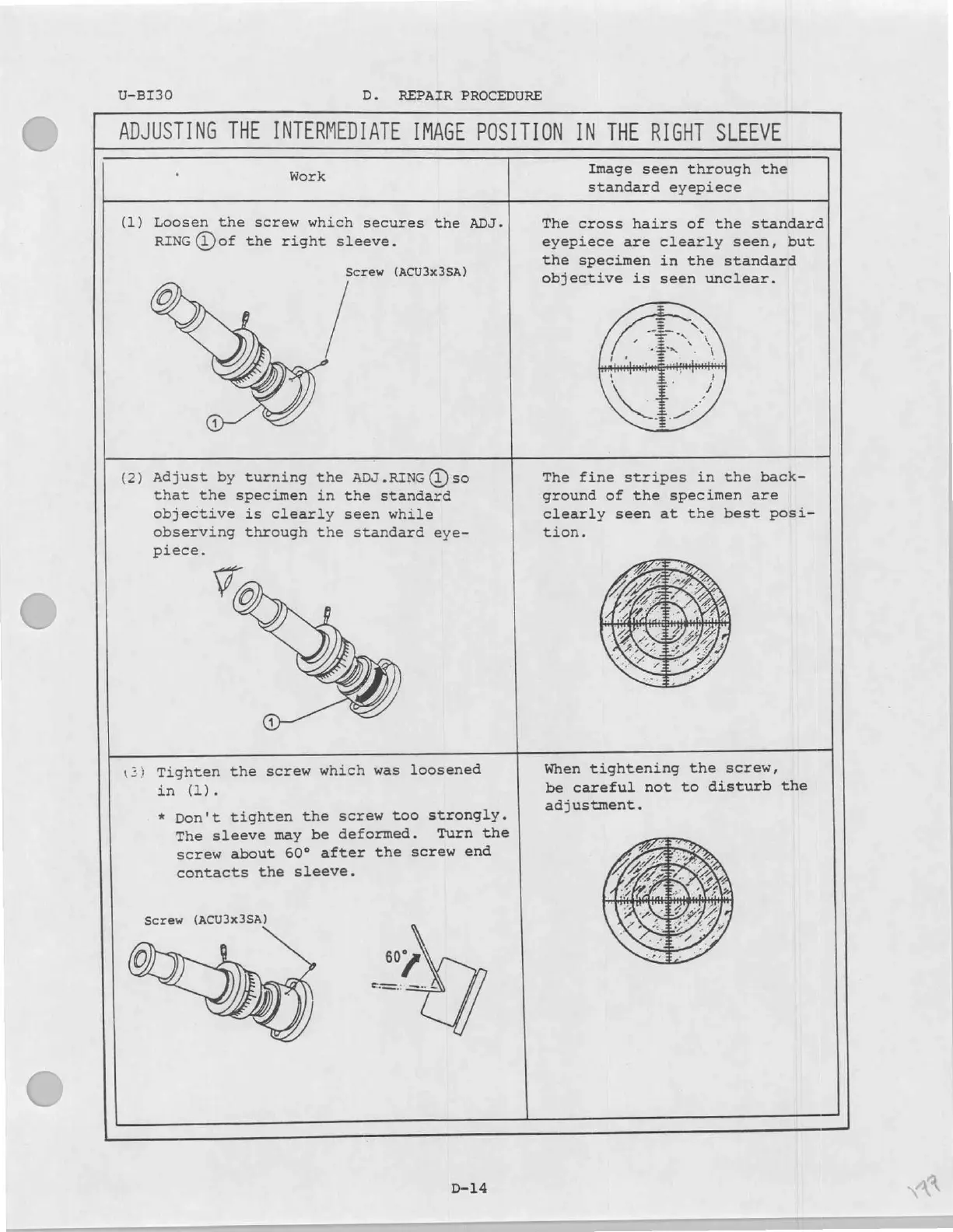

U-BI30 D. REPAIR PROCEDURE
ADJUSTING THE INTERMEDIATE IMAGE POSITION IN THE RIGHT SLEEVE
Work
Image seen through the
standard eyepiece
(1) Loosen the screw which secures the ADJ.
RING of the right sleeve.
Screw (ACU3x3SA)
The cross hairs of the standard
eyepiece are clearly seen, but
the specimen in the standard
objective is seen unclear.
(2) Adjust by turning the ADJ.RING (D) so
that the specimen in the standard
objective is clearly seen while
observing through the standard eye-
piece.
The fine stripes in the back-
ground of the specimen are
clearly seen at the best posi-
tion.
13)
Tighten
the
screw
which
was
loosened
in (1).
*
Don't
tighten
the
screw
too
strongly.
The
sleeve
may
be
deformed.
Turn
the
screw
about
60°
after
the
screw
end
contacts
the
sleeve.
Screw (ACU3x3SA)
When tightening the screw,
be careful not to disturb the
adjustment.
D-14
