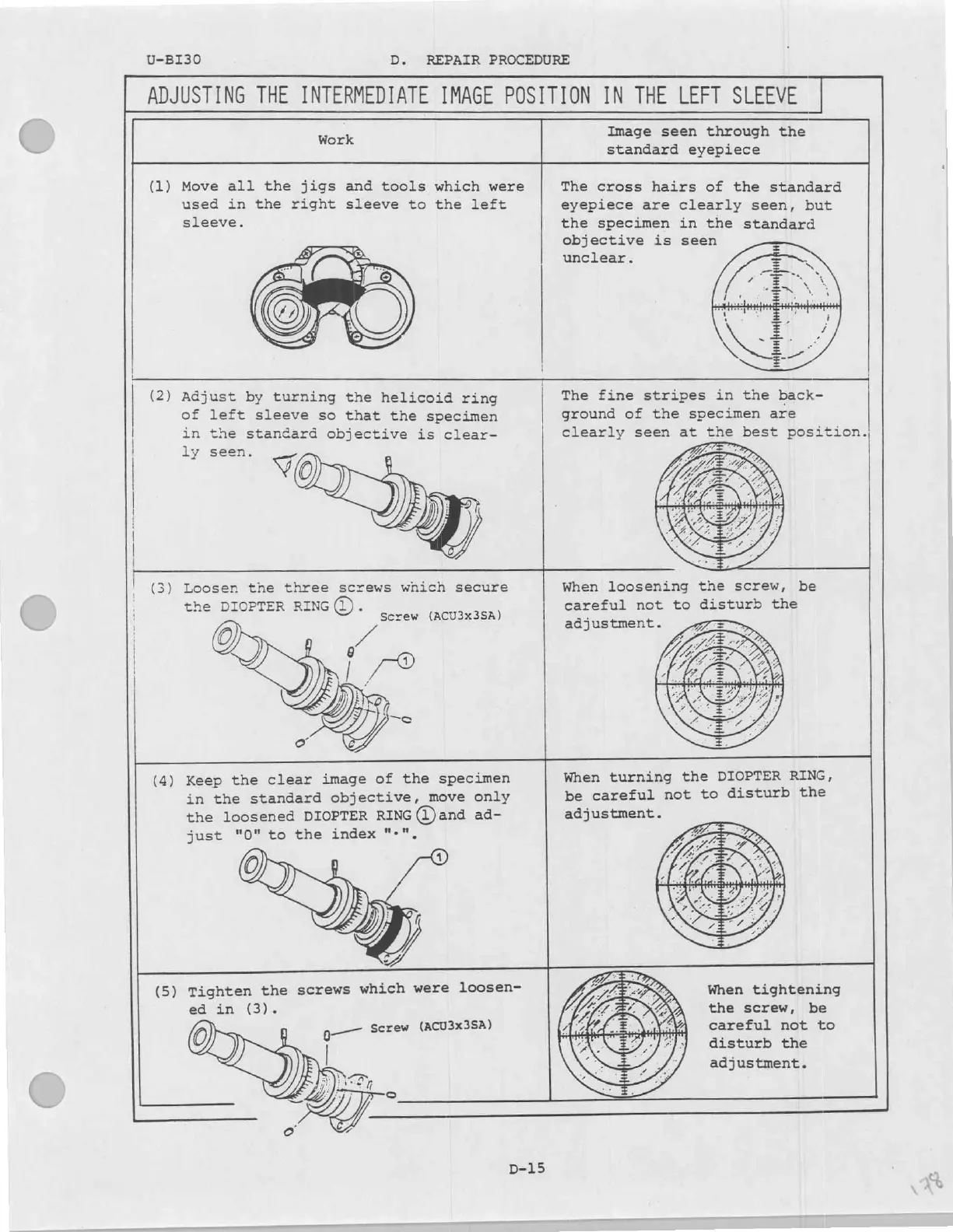

U-B130 D. REPAIR PROCEDURE
ADJUSTING THE INTERMEDIATE IMAGE POSITION IN THE LEFT SLEEVE
Work
Image seen through the
standard eyepiece
(1) Move all the jigs and tools which were
used in the right sleeve to the left
sleeve.
The cross hairs of the standard
eyepiece are clearly seen, but
the specimen in the standard
objective is seen
unclear.
(2) Adjust by turning the helicoid ring
of left sleeve so that the specimen
in the standard objective is clear-
ly seen.
The fine stripes in the back-
ground of the specimen are
clearly seen at the best position.
ジン ニー ッッ
(3) Loosen the three screws which secure
taç DERLER RENE (の Screw (ACU3x3SA)
When loosening the screw, be
careful not to disturb the
adjustment.
(4) Keep the clear image of the specimen
in
the
standard
objective,
move
only
the loosened DIOPTER RING
"o" to the index "e",
@ana ad-
just
When turning the DIOPTER RING,
be
careful
not
to
disturb
the
adjustment.
(5)
Tighten
the
screws
which
were
loosen-
ed
in
(3).
When tightening
the screw, be
careful not to
disturb the
adjustment.
D-15
