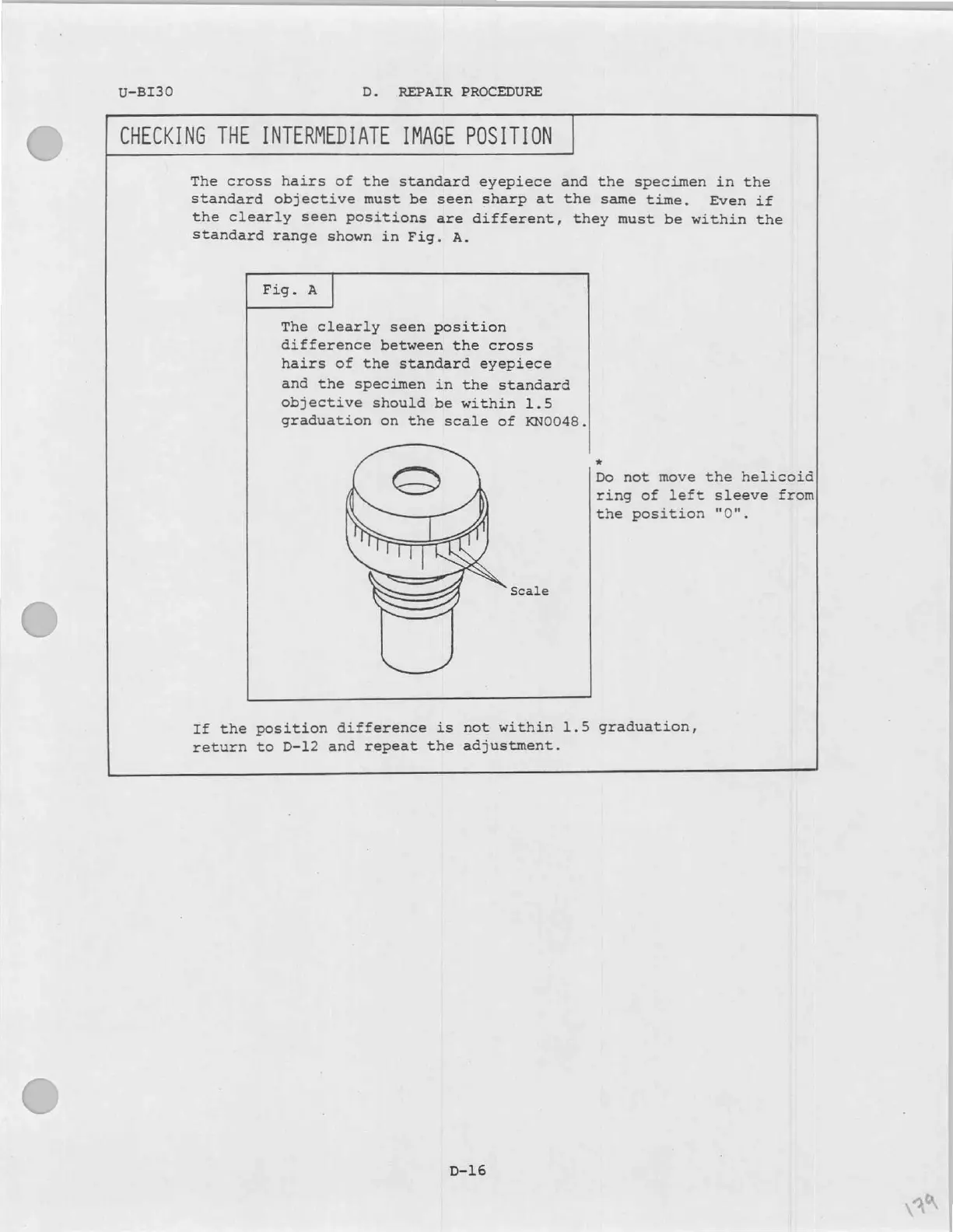

U-BI30 D. REPAIR PROCEDURE
CHECKING THE INTERMEDIATE IMAGE POSITION
The cross hairs of the standard eyepiece and the specimen in the
standard objective must be seen sharp at the same time. Even if
the
clearly
seen
positions
are
different,
they
must
be
within
the
standard
range
shown
in
Fig.
A.
Fig. A
The clearly seen position
difference between the cross
hairs of the standard eyepiece
and the specimen in the standard
objective should be within 1.5
graduation on the scale of KN0048.
*
Do not move the helicoid
ring of left sleeve from
the position "0".
If the position difference is not within 1.5 graduation,
return to D-12 and repeat the adjustment.
D-16
