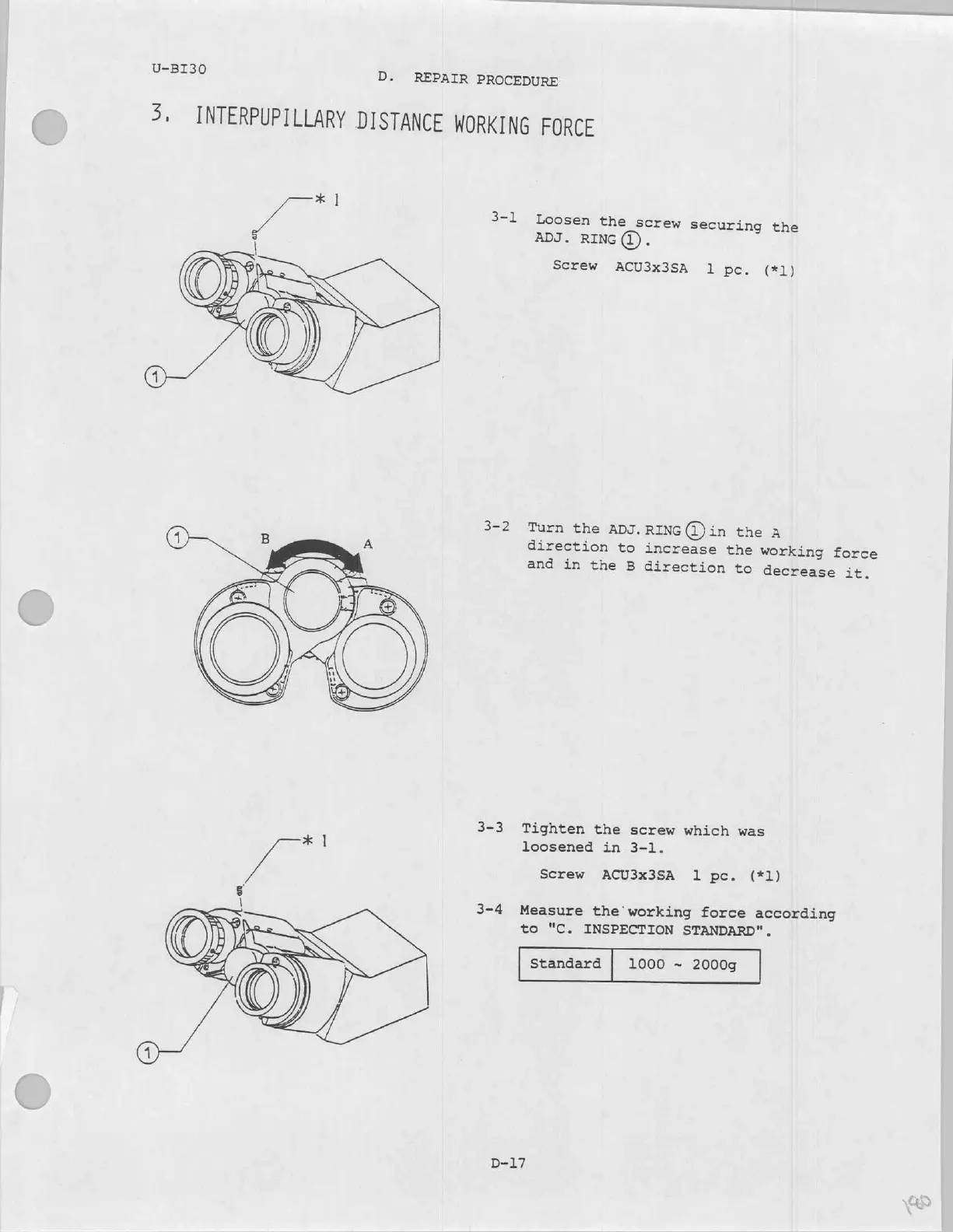

Olympus bx40 - Page 180

U-BI30
D.
REPAIR
PROCEDURE
3.
INTERPUPILLARY
DISTANCE
WORKING
FORCE
3-1
Loosen
the
screw
securing
the
ADJ.
RING
(1).
Screw
ACU3x3SA
1
pe.
(*1)
3-2
Turn
the
ADJ.RING@)in
the
a
direction
to
increase
the
working
force
and
in
the
B
direction
to
decrease
it.
3-3
Tighten
the
screw
which
was
loosened
in
3-1.
Screw ACU3x3SA 1 pc. (*1)
3-4
Measure
the
working
force
according
to
"C.
INSPECTION
STANDARD".
Standard 1000 ~ 2000g
D-17
