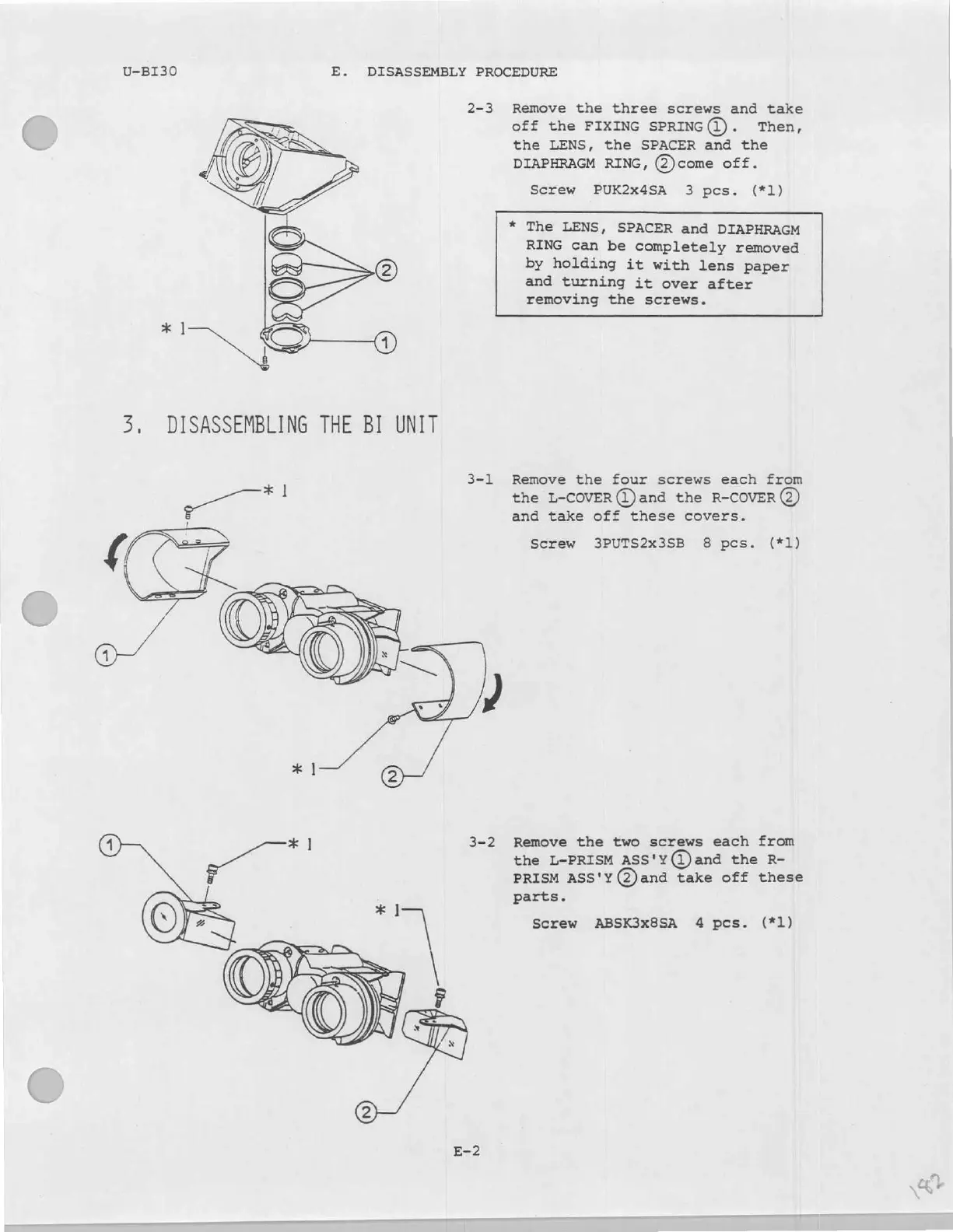

U-BI30 E. DISASSEMBLY PROCEDURE
2-3
3, DISASSEMBLING THE BI UNIT
Remove the three screws and take
off the FIXING SPRING(). Then,
the LENS, the SPACER and the
DIAPHRAGM RING, (2)come off.
Screw PUK2x4SA 3 pcs. (*1)
*
The
LENS,
SPACER
and
DIAPHRAGM
RING
can
be
completely
removed
by
holding
it
with
lens
paper
and
turning
it
over
after
removing
the
screws.
3-1 Remove the four screws each from
the エ -COVER (1) and the R-COVER (2)
and take off these covers.
Screw 3PUTS2x3SB 8 pcs. (*1)
Remove the two screws each from
the L-PRISM ASS'Y(I)and the R-
PRISM ass'y @)and take off these
parts.
Screw ABSK3x8SA 4 pcs. (*1)
