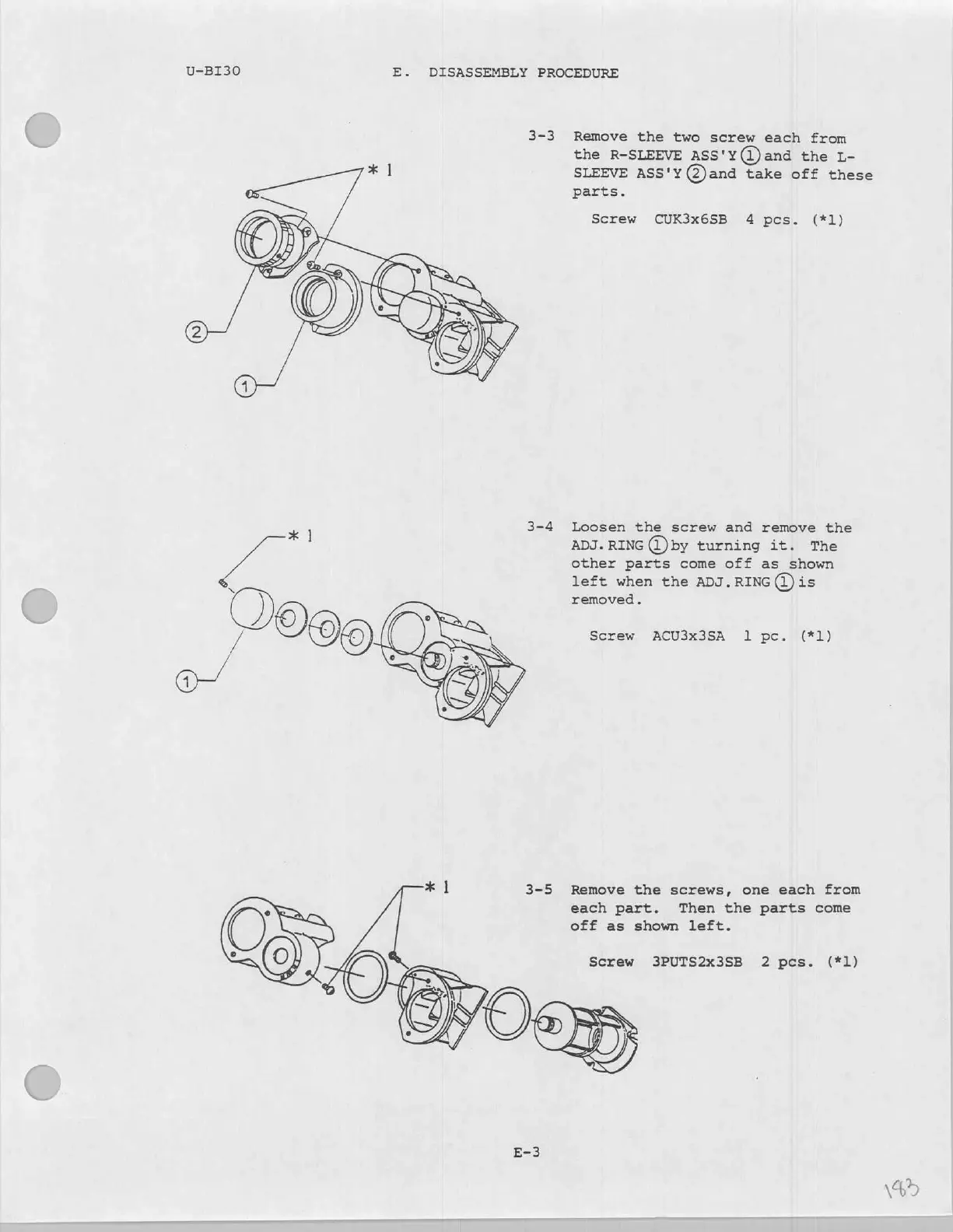

U-BI30 E. DISASSEMBLY PROCEDURE
3-3 Remove the two screw each from
the R-SLEEVE ASS'Y(1)and the L-
SLEEVE ASS'Y (2)and take off these
parts.
Screw CUK3x6SB 4 pcs. (*1)
Loosen the screw and remove the
ADJ. RING (1)by turning it. The
other parts come off as shown
left when the ADJ. RING (1) is
removed.
Screw ACU3x3SA 1 pe. (*1)
3-5 Remove the screws, one each from
each part. Then the parts come
off as shown left.
Screw 3PUTS2x3SB 2 pes. (*1)
