U-BI30

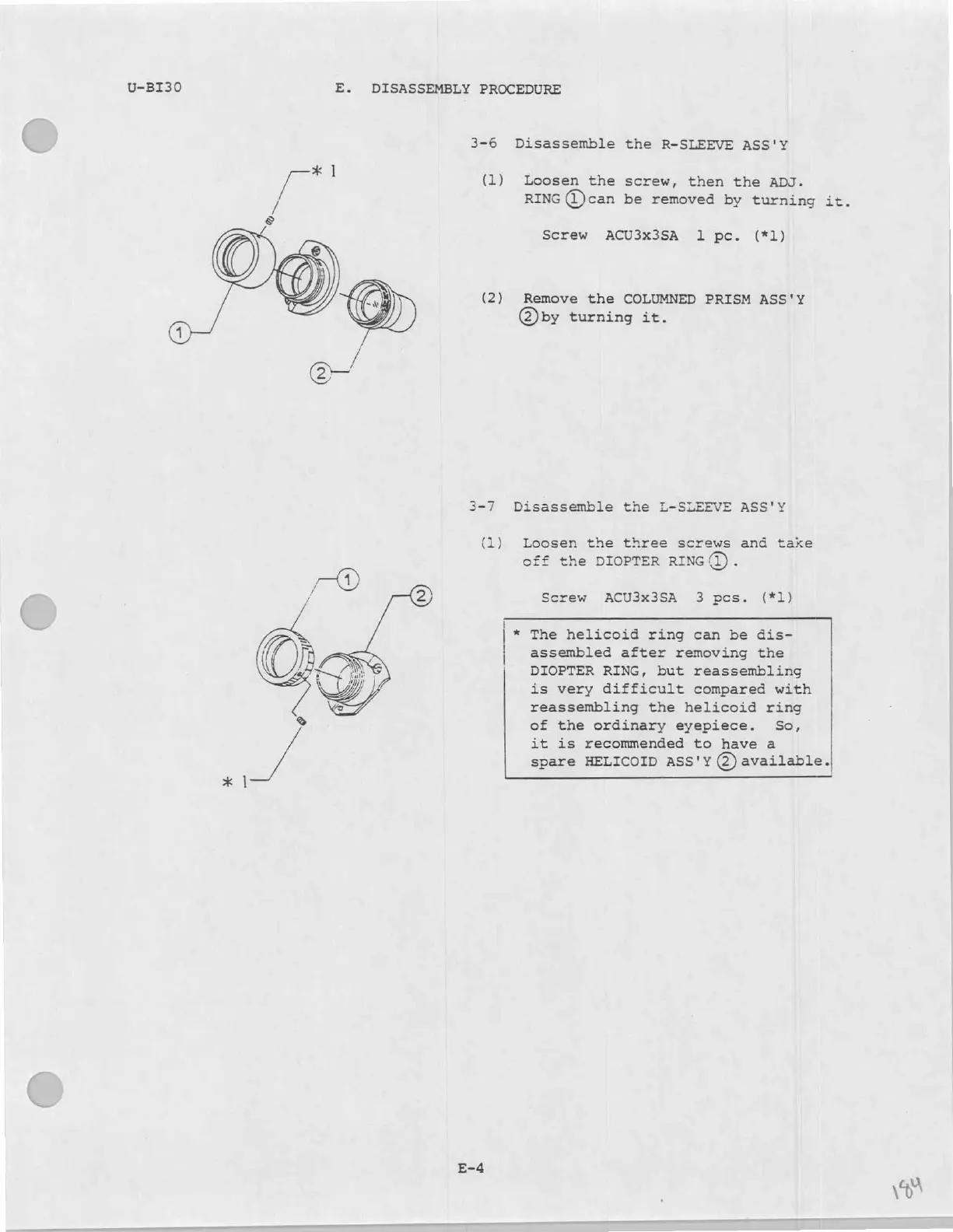

E. DISASSEMBLY PROCEDURE
3-6 Disassemble the R-SLEEVE ASS'Y
(1) Loosen the screw, then the ADJ.
Screw ACU3x3SA 1 pc. (*1)
(2) Remove the COLUMNED PRISM ASS'Y
©by turning it.
3-7 Disassemble the L-SLEEVE ASS'Y
(1) Loosen the three screws and take
off the DIOPTER RING (1).
Screw ACU3x3SA 3 pcs. (*1)
| * The helicoid ring can be dis-
| assembled after removing the
DIOPTER RING, but reassembling
is very difficult compared with
reassembling the helicoid ring
of the ordinary eyepiece. So,
it is recommended to have a
spare HELICOID ASS'Y (2) available.
E-4
RING
@can
be
removed
by
turning
it.
