U-BI30
F.

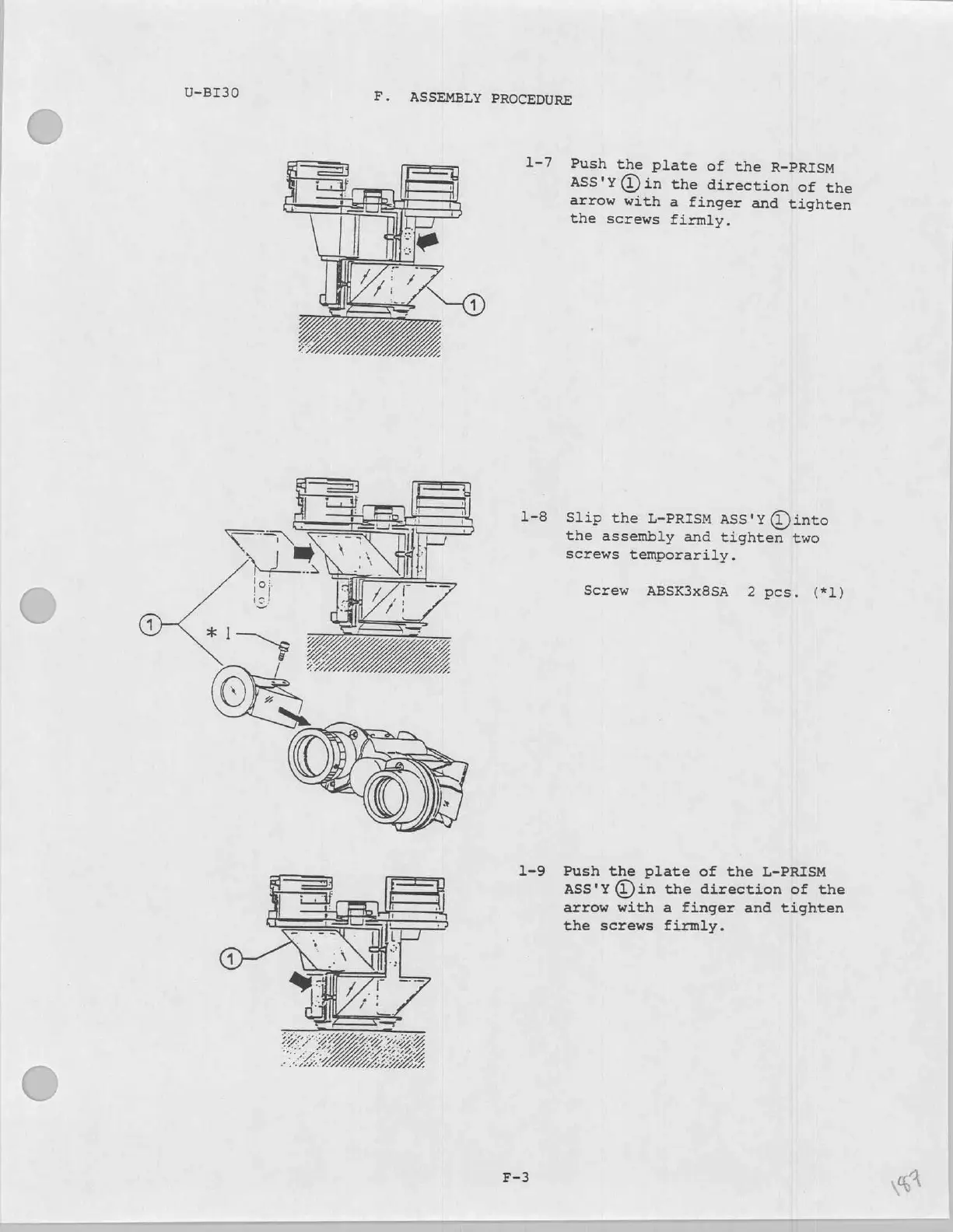

ASSEMBLY
PROCEDURE
1-7
Push
the
plate
of
the
R-PRISM
ASS'Y
(Din
the
direction
of
the
arrow
with
a
finger
and
tighten
the
screws
firmly.
1-8
Slip
the
L-PRISM
ass'y
@)into
the
assembly
and
tighten
two
screws
temporarily.
Screw
ABSK3x8SA
2
pcs.
(*1)
1-9 Push the plate of the L-PRISM
ASS'Y Din the direction of the
arrow with a finger and tighten
the screws firmly.
