U-BI30 E

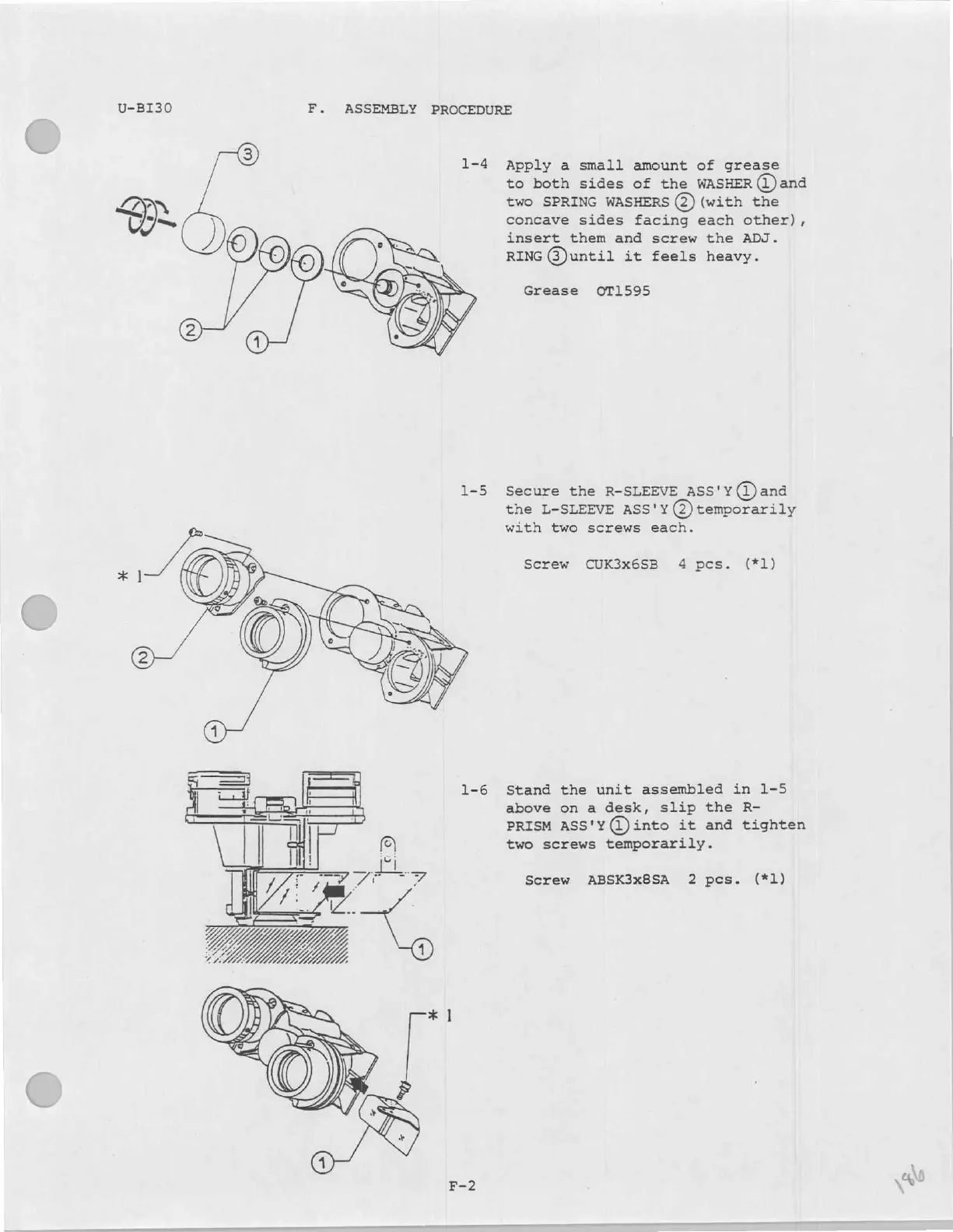

ASSEMBLY PROCEDURE
1-5
Apply a small amount of grease
to both sides of the WASHER (©) and
two SPRING WASHERS (2) (with the
concave sides facing each other),
insert them and screw the ADJ.
RING @until it feels heavy.
Grease ΟΤ1595
Secure the R-SLEEVE ASS'Y (1) and
the L-SLEEVE ASS'y @) temporarily
with two screws each.
Screw CUK3x6SB 4 pcs. (31)
Stand the unit assembled in 1-5
above on a desk, slip the R-
PRISM ASS'Y(@)into it and tighten
two screws temporarily.
Screw ABSK3x8SA 2 pcs. (31)
