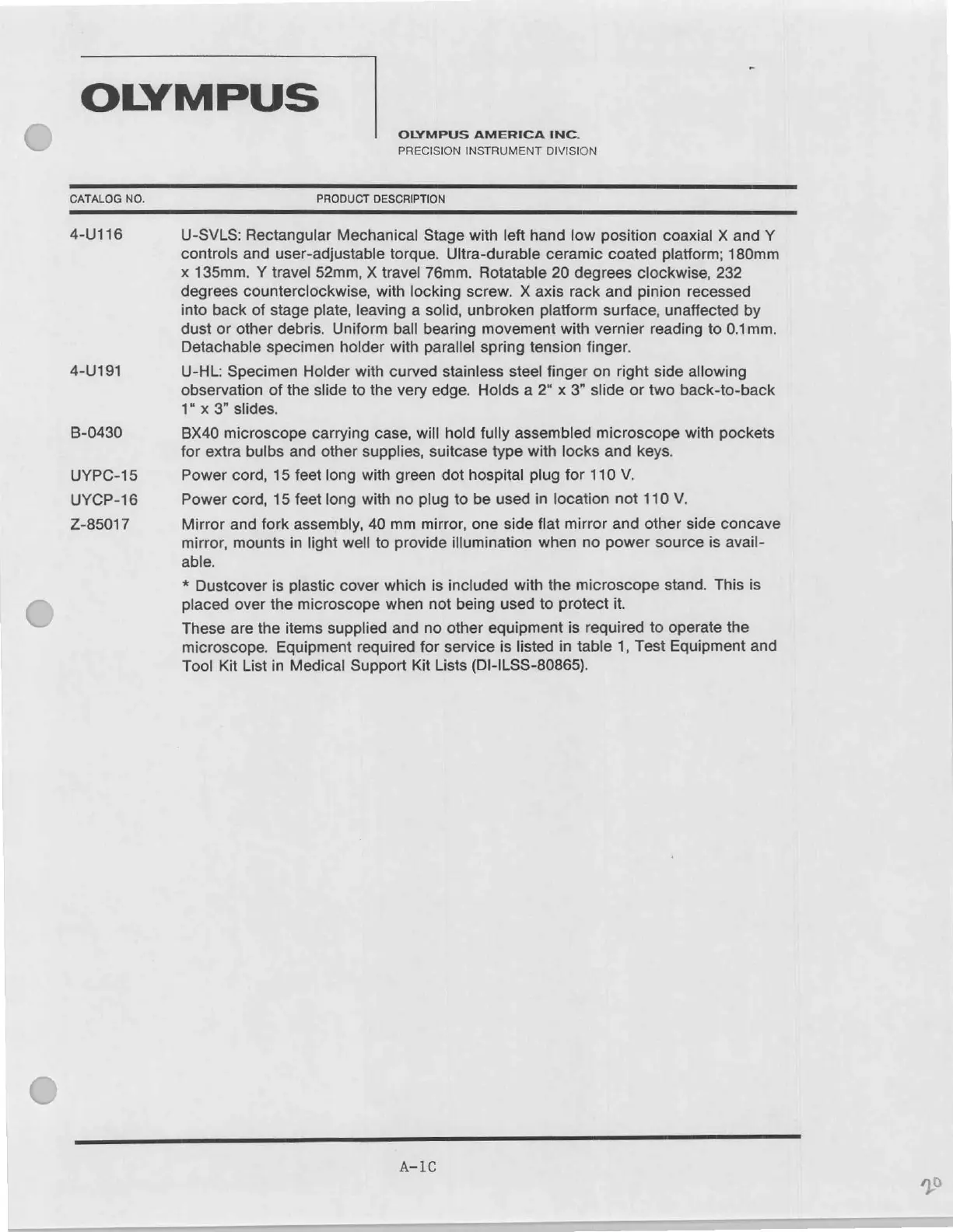

OLYMPUS
OLYMPUS AMERICA INC.
PRECISION INSTRUMENT DIVISION
CATALOG NO.
4-U116
4-U191
B-0430
UYPC-15
UYCP-16
Z-85017
PRODUCT DESCRIPTION
U-SVLS: Rectangular Mechanical Stage with left hand low position coaxial X and Y
controls and user-adjustable torque. Ultra-durable ceramic coated platform; 180mm
x 135mm. Y travel 52mm, X travel 76mm. Rotatable 20 degrees clockwise, 232
degrees counterclockwise, with locking screw. X axis rack and pinion recessed
into back of stage plate, leaving a solid, unbroken platform surface, unaffected by
dust or other debris. Uniform ball bearing movement with vernier reading to 0.1mm.
Detachable specimen holder with parallel spring tension finger.
U-HL: Specimen Holder with curved stainless steel finger on right side allowing
observation of the slide to the very edge. Holds a 2“ x 3" slide or two back-to-back
1“ x 3" slides.
BX40 microscope carrying case, will hold fully assembled microscope with pockets
for extra bulbs and other supplies, suitcase type with locks and keys.
Power cord, 15 feet long with green dot hospital plug for 110 V.
Power cord, 15 feet long with no plug to be used in location not 110 V.
Mirror and fork assembly, 40 mm mirror, one side flat mirror and other side concave
mirror, mounts in light well to provide illumination when no power source is avail-
able.
* Dustcover is plastic cover which is included with the microscope stand. This is
placed over the microscope when not being used to protect it.
These are the items supplied and no other eguipment is reguired to operate the
microscope. Eguipment reguired for service is listed in table 1, Test Eguipment and
Tool Kit List in Medical Support Kit Lists (DI-ILSS-80865).
A-1C
