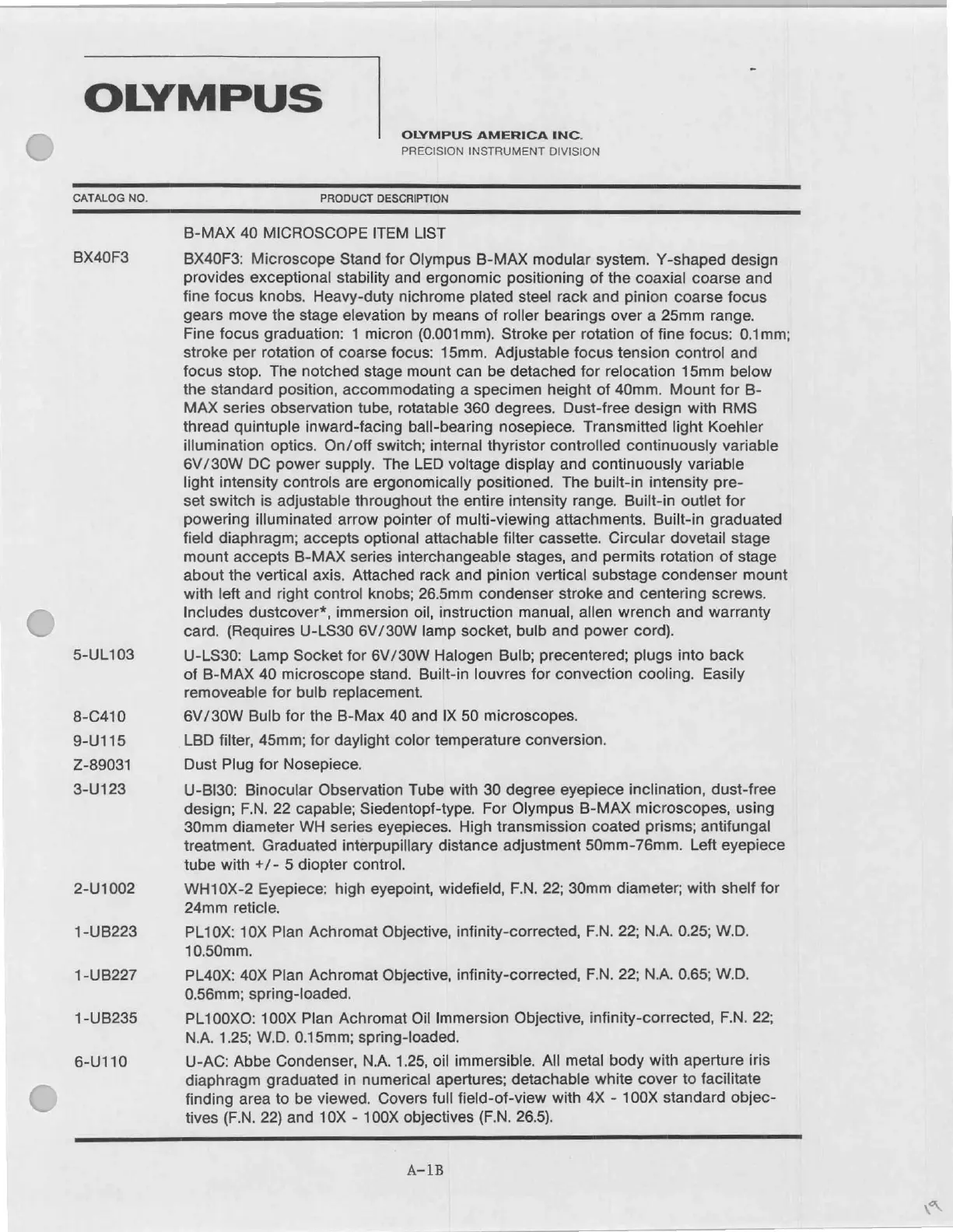

PRODUCT DESCRIPTION
B-MAX 40 MICROSCOPE ITEM LIST
BX40F3: Microscope Stand for Olympus B-MAX modular system. Y-shaped design
provides exceptional stability and ergonomic positioning of the coaxial coarse and
fine focus knobs. Heavy-duty nichrome plated steel rack and pinion coarse focus
gears move the stage elevation by means of roller bearings over a 25mm range.
Fine focus graduation: 1 micron (0.001mm). Stroke per rotation of fine focus: 0.1mm;
stroke per rotation of coarse focus: 15mm. Adjustable focus tension control and
focus stop. The notched stage mount can be detached for relocation 15mm below
the standard position, accommodating a specimen height of 4Omm. Mount for B-
MAX series observation tube, rotatable 360 degrees. Dust-free design with RMS
thread guintuple inward-facing ball-bearing nosepiece. Transmitted light Koehler
illumination optics. On/off switch; internal thyristor controlled continuously variable
6V/30W DC power supply. The LED voltage display and continuously variable
light intensity controls are ergonomically positioned. The built-in intensity pre-
set switch is adjustable throughout the entire intensity range. Built-in outlet for
powering illuminated arrow pointer of multi-viewing attachments. Built-in graduated
field diaphragm; accepts optional attachable filter cassette. Circular dovetail stage
mount accepis B-MAX series interchangeable stages, and permits rotation of stage
about the vertical axis. Attached rack and pinion vertical substage condenser mount
with left and right control knobs; 26.5mm condenser stroke and centering screws.
Includes dustcover*, immersion oil, instruction manual, allen wrench and warranty
card. (Requires U-LS30 6V/30W lamp socket, bulb and power cord).
U-LS30: Lamp Socket for 6V/30W Halogen Bulb; precentered; plugs into back
of B-MAX 40 microscope stand. Built-in louvres for convection cooling. Easily
removeable for bulb replacement.
6V/30W Bulb for the B-Max 40 and IX 50 microscopes.
LBD filter, 45mm; for daylight color temperature conversion.
Dust Plug for Nosepiece.
U-BI30: Binocular Observation Tube with 30 degree eyepiece inclination, dust-free
design; F.N. 22 capable; Siedentopf-type. For Olympus B-MAX microscopes, using
30mm diameter WH series eyepieces. High transmission coated prisms; antifungal
treatment. Graduated interpupillary distance adjustment 50mm-76mm. Left eyepiece
tube with +/- 5 diopter control.
WH10X-2 Eyepiece: high eyepoint, widefield, F.N. 22; 30mm diameter; with shelf for
24mm reticle.
PL10X: 10X Plan Achromat Objective, infinity-corrected, F.N. 22; N.A. 0.25; W.D.
10.50mm.
PL40X: 40X Plan Achromat Objective, infinity-corrected, F.N. 22; N.A. 0.65; W.D.
0.56mm; spring-loaded.
PL100XO: 100X Plan Achromat Oil Immersion Objective, infinity-corrected, F.N. 22;
N.A. 1.25; W.D. 0.15mm; spring-loaded.
U-AC: Abbe Condenser, N.A. 1.25, oil immersible. All metal body with aperture iris
diaphragm graduated in numerical apertures; detachable white cover to facilitate
finding area to be viewed. Covers full field-of-view with 4X - 100X standard objec-
tives (F.N. 22) and 10X - 100X objectives (F.N. 26.5).
A-1B
