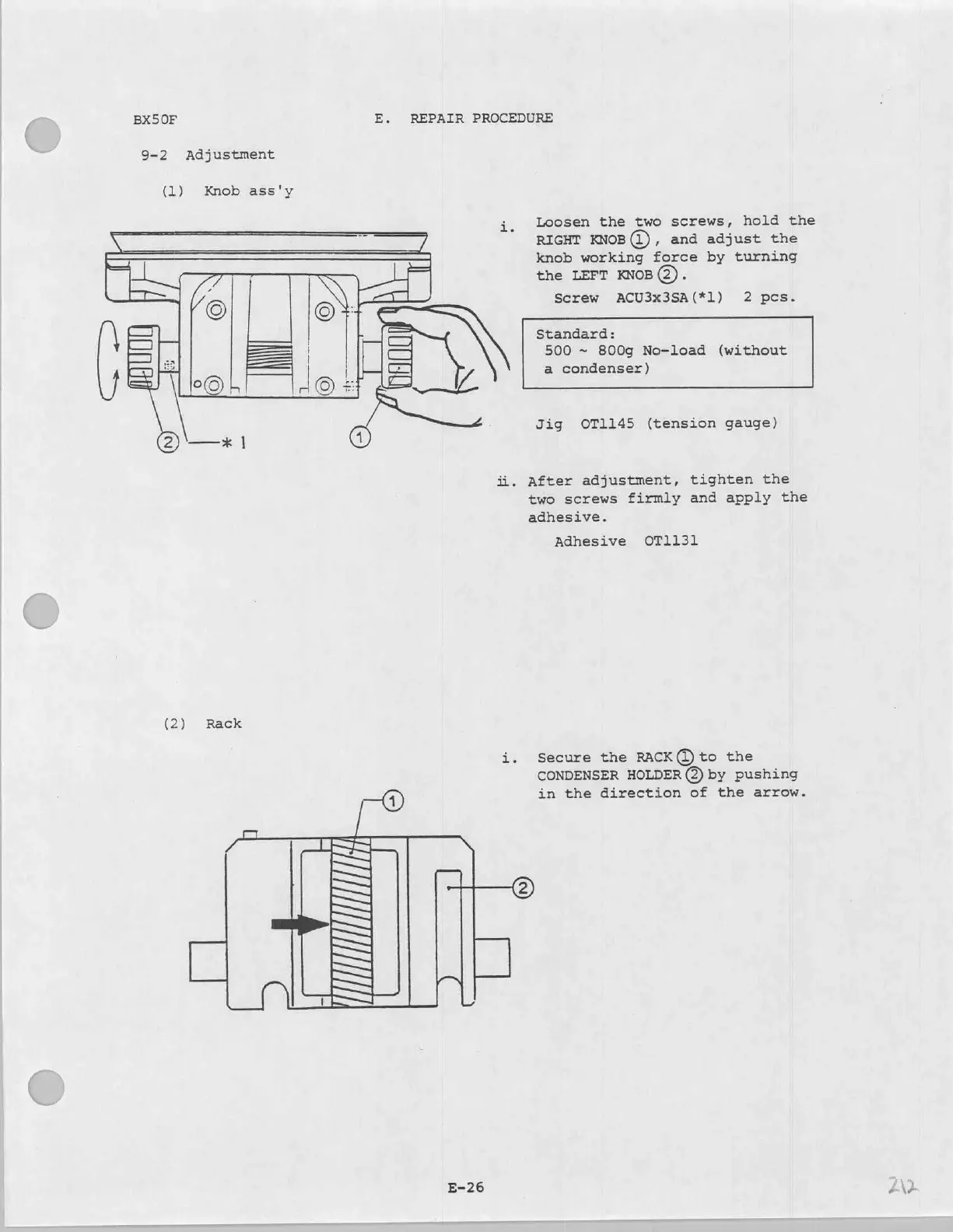

BX50F E. REPAIR PROCEDURE
9-2 Adjustment
(1) Knob ass'y
Loosen the two screws, hold the
\
i
7
RIGHT
KNOB(1),
and
adjust
the
knob working force by turning
I,
the
LEFT
KNOB
(2).
Screw ACU3x3SA(*1) 2 pcs.
Standard:
500 ~ 800g No-load (without
a condenser)
Jig OT1145 (tension gauge)
ii.
After
adjustment,
tighten
the
two
screws
firmly
and
apply
the
adhesive.
Adhesive OT1131
(2) Rack
i. Secure the RACK(]) to the
CONDENSER HOLDER (2) by pushing
in the direction of the arrow.
=
E \
一 @
μή
E-26
