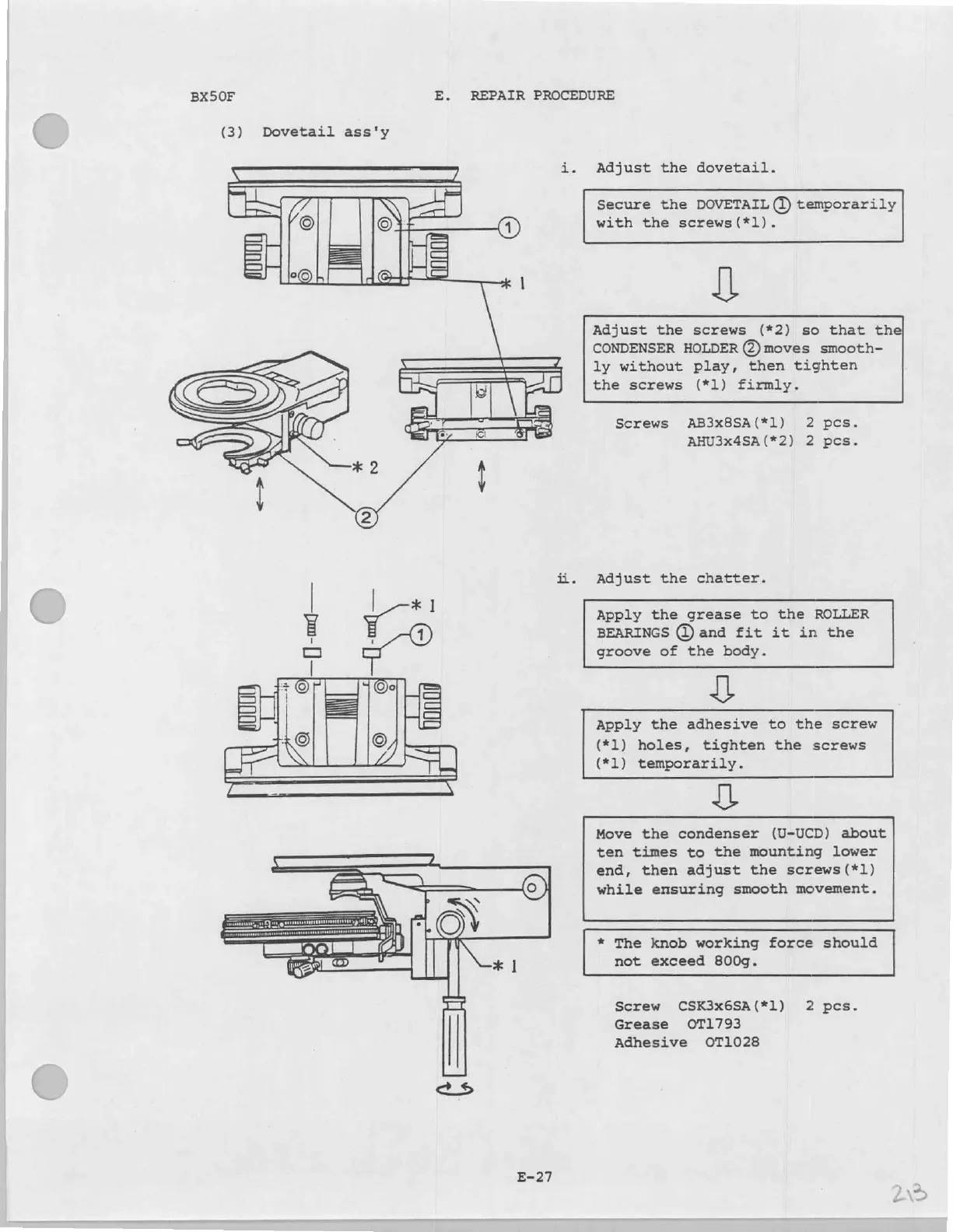

BX50F E. REPAIR PROCEDURE
(3) Dovetail ass'y
i. Adjust the dovetail.
DES A Secure the DOVETAIL(D temporarily
© OVE ー① with the screws(*1).
1
Adjust the screws (*2) so that the
CONDENSER HOLDER @)moves smooth-
ly without play, then tighten
E \ the screws (*1) firmly.
*
и 1 Screws AB3x8SA(*1) 2 pcs.
:一 -一 AHU3x4SA (*2) 2 pcs.
ii. Adjust the chatter.
de πι Apply the grease to the ROLLER
E = BEARINGS (D and fit it in the
T groove of the body.
EL
|
4
|
내
E
É
Apply the adhesive to the screw
KO © (*1) holes, tighten the screws
| (*1) temporarily.
Move the condenser (U-UCD) about
ten times to the mounting lower
end, then adjust the screws (*1)
while ensuring smooth movement.
* The knob working force should
not exceed 800g.
Screw CSK3x6SA(*1) 2 pcs.
Grease OT1793
Adhesive OT1028
E-27
