Fig. 42
Fig. 43
DAV

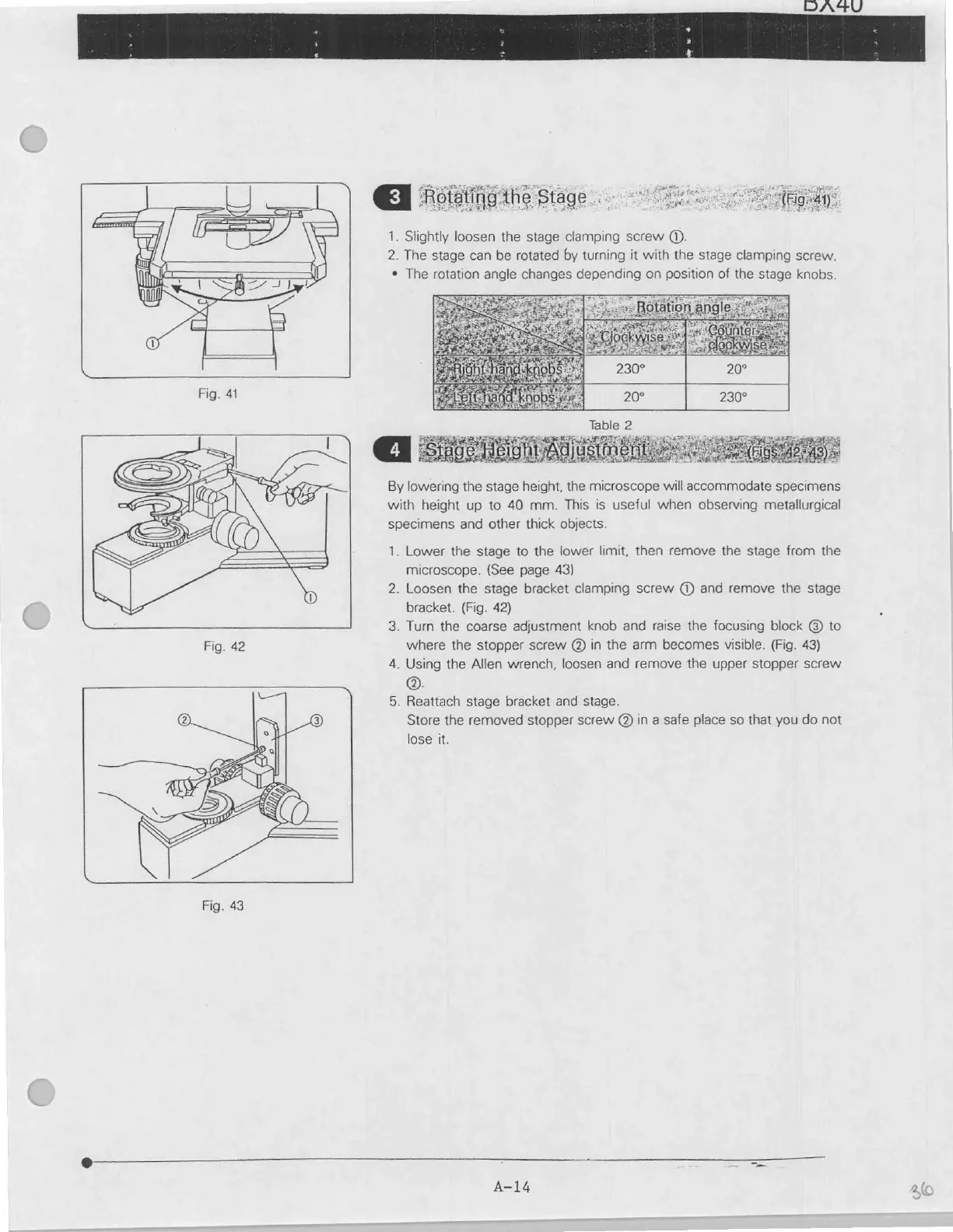

1. Slightly loosen the stage clamping screw ©.
2. The stage can be rotated by turning it with the stage clamping screw.
+ The rotation angle changes depending on position of the stage knobs.
Table 2
OAO daně
By lowering the stage height, the microscope will accommodate specimens
with height up to 40 mm. This is useful when observing metallurgical
specimens and other thick objects.
1. Lower the stage to the lower limit, then remove the stage from the
microscope. (See page 43)
2. Loosen the stage bracket clamping screw @ and remove the stage
bracket. (Fig. 42)
3. Turn the coarse adjustment knob and raise the focusing block @ to
where the stopper screw (2) in the arm becomes visible. (Fig. 43)
4. Using the Allen wrench, loosen and remove the upper stopper screw
©.
5. Reattach stage bracket and stage.
Store the removed stopper screw ©) in a safe place so that you do not
lose it.
A-14
