BX40

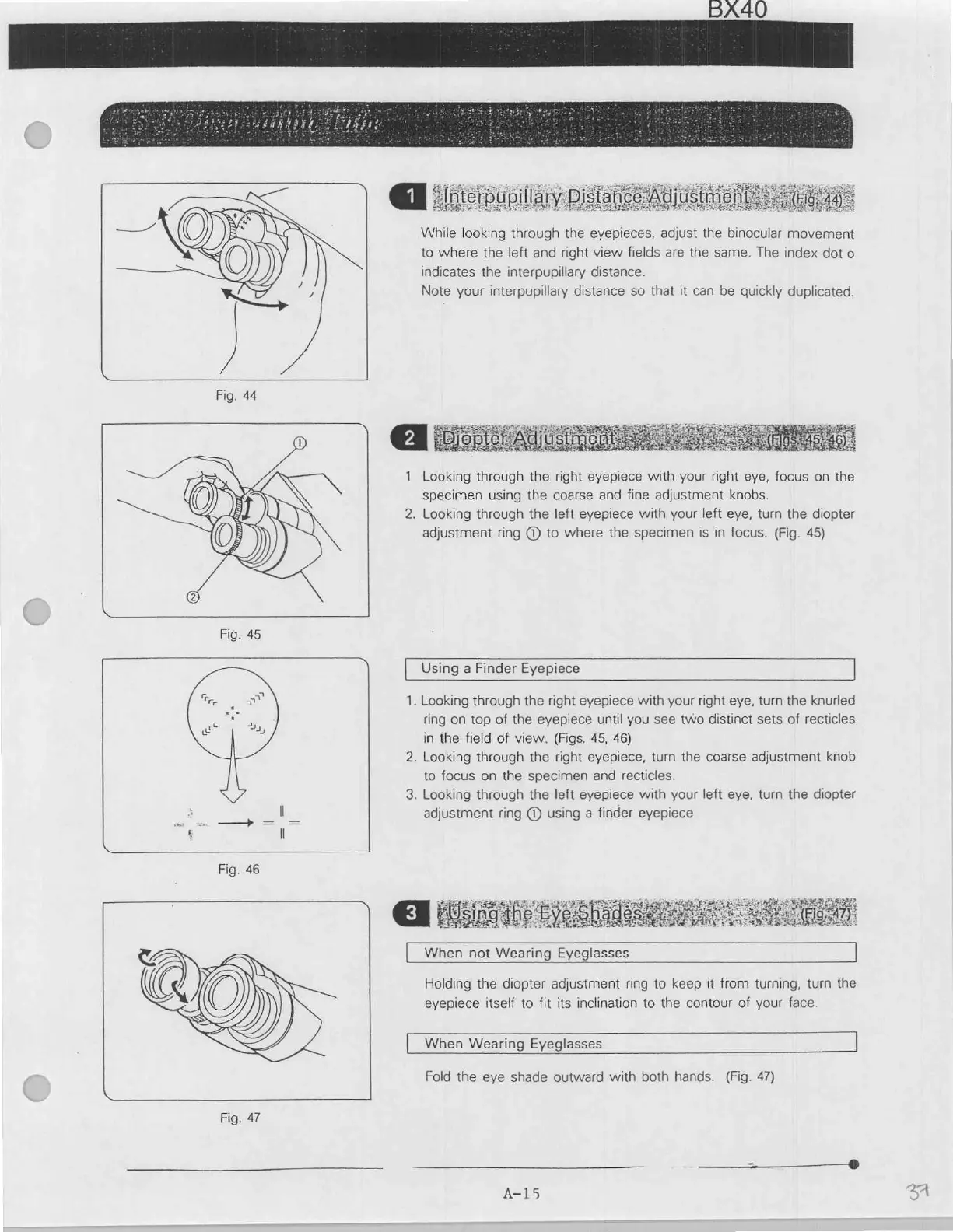

While looking through the eyepieces, adjust the binocular movement
to where the left and right view fields are the same. The index dot o
indicates the interpupillary distance.
Note your interpupillary distance so that it can be quickly duplicated.
Fig. 44
1 Looking through the right eyepiece with your right eye, focus on the
specimen using the coarse and fine adjustment knobs.
2. Looking through the left eyepiece with your left eye, turn the diopter
adjustment ring @ to where the specimen is in focus. (Fig. 45)
Fig. 45
Using a Finder Eyepiece ]
1. Looking through the right eyepiece with your right eye, turn the knurled
ting on top of the eyepiece until you see two distinct sets of recticles
in the field of view. (Figs. 45, 46)
2. Looking through the right eyepiece, turn the coarse adjustment knob
to focus on the specimen and recticles.
3. Looking through the left eyepiece with your left eye, turn the diopter
Il adjustment ring @ using a finder eyepiece
人 Býčí
[ When not Wearing Eyeglasses |
Holding the diopter adjustment ring to keep it from turning, turn the
eyepiece itself to fit its inclination to the contour of your face.
[ When Wearing Eyeglasses
Fold the eye shade outward with both hands. (Fig. 47)
ASÍS
