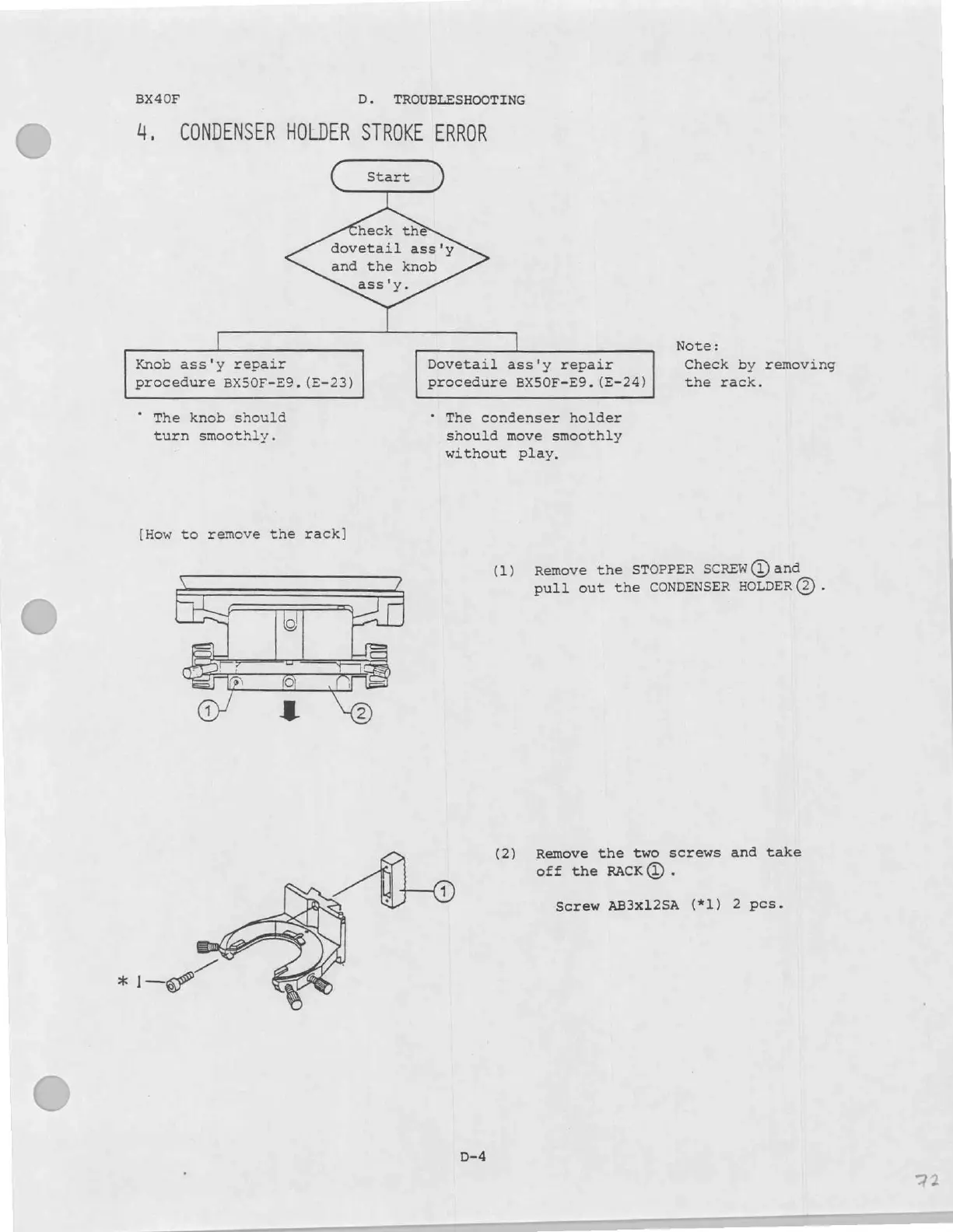

BX40F D. TROUBLESHOOTING
4, CONDENSER HOLDER STROKE ERROR
heck thé
dovetail ass'y
and the knob
ass'y.
[ | Note:
Knob ass'y repair Dovetail ass'y repair Check by removing
procedure BX50F-E9. (E-23) procedure BX50F-E9. (E-24) the rack.
* The knob should * The condenser holder
turn smoothly. should move smoothly
without play.
[How to remove the rack]
(1)
Remove
the
STOPPER
SCREW(@)
and
pull
out
the
CONDENSER
HOLDER
(2)
.
(2) Remove the two screws and take
off the RACK().
Screw
AB3x12SA
(*1)
2
pcs.
