Olympus bx40 - Page 73

BX40F D.

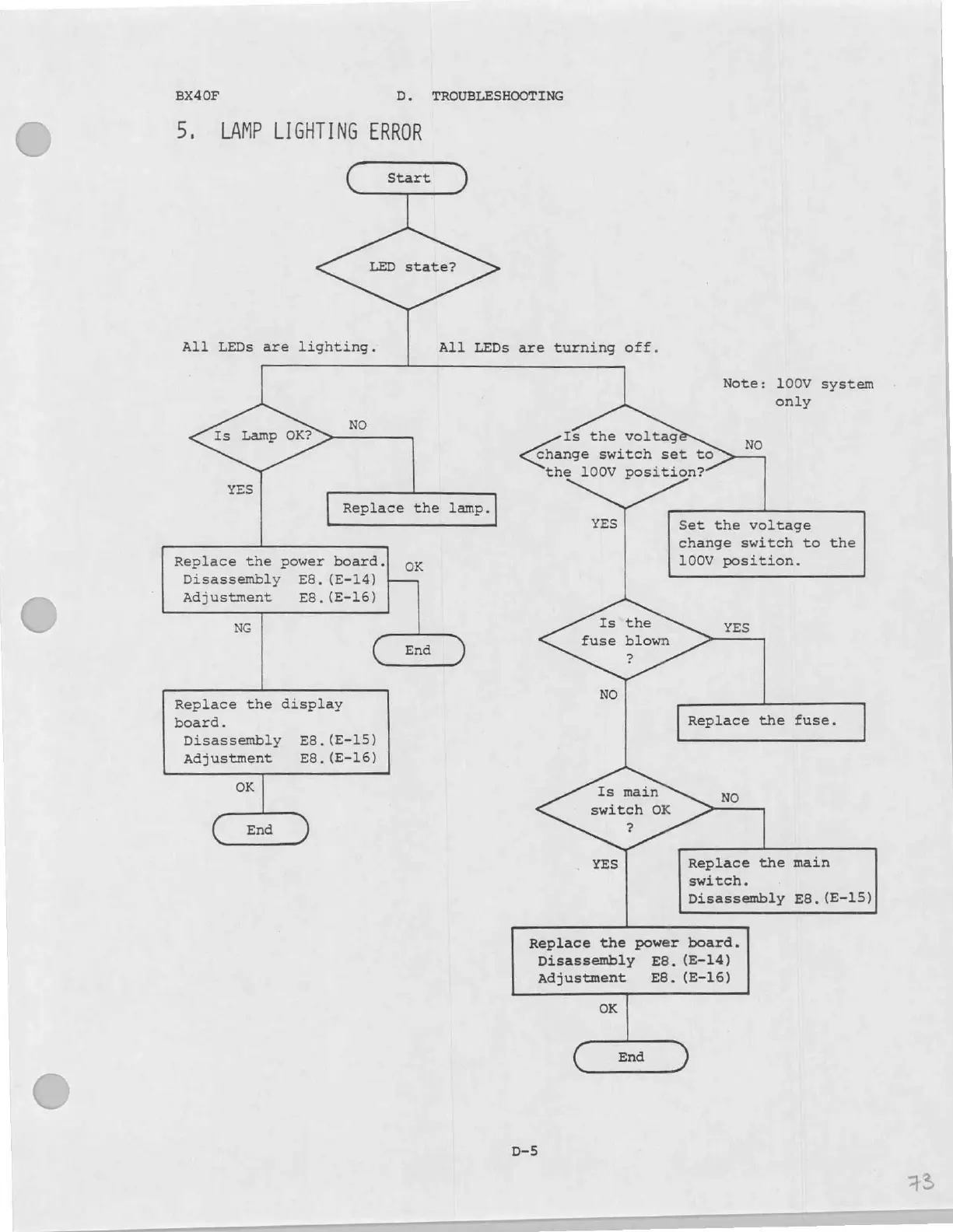

5, LAMP LIGHTING ERROR
All LEDs are lighting.
TROUBLESHOOTING
All LEDs are turning off.
No
Is Lamp OK?
YES
Replace the lamp.
Replace the power board.) ox
Disassembly EB. (E-14)
Adjustment E8.(E-16)
NG
End
Replace the display
board.
Disassembly E8.(E-15)
Adjustment E8.(E-16)
OK
End
Note: 100V system
only
NO
Is the voltag
Grange switch set to
the 100V position?
Set the voltage
change switch to the
100V position.
Is the
fuse blown
?
YES
Replace the fuse.
Is main
switch OK
e
NO
Replace the main
switch.
Disassembly E8.(E-15)
Replace the power board.
Disassembly ES. (E-14)
Adjustment E8. (E-16)
OK
End
©
