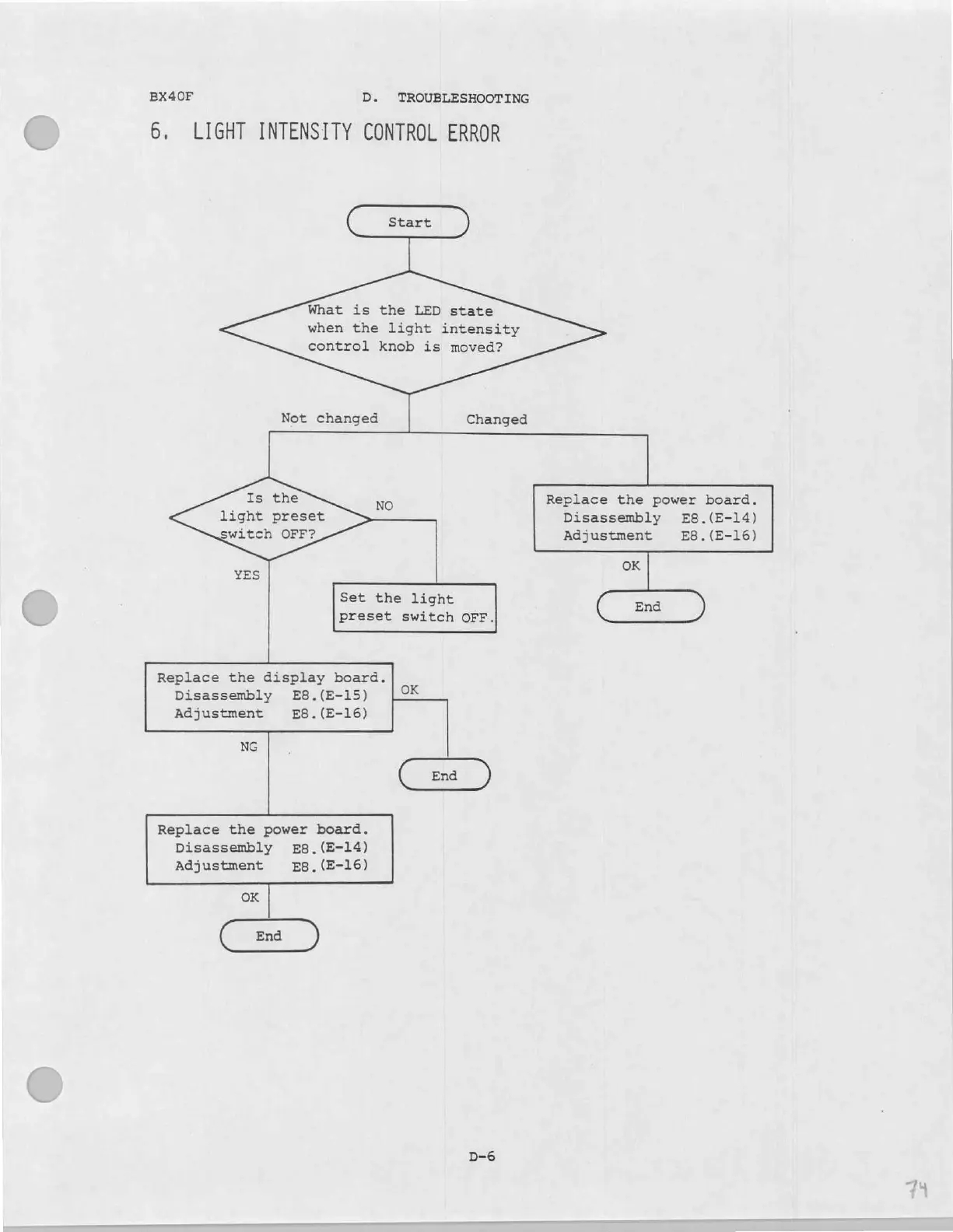

EX40F D. TROUBLESHOOTING
6,
LIGHT
INTENSITY
CONTROL
ERROR
What is the LED state
when the light intensity
control knob is moved?
Not changed Changed
Is the
light preset
witch OFF?
Replace the power board.
Disassembly E8.(E-14)
Adjustment E8.(E-16)
OK
YES
Set the light
E End
preset switch OFF.
Replace the display board.
Disassembly E8.(E-15) SS
Adjustment £8. (E-16)
NG
End
Replace the power board.
Disassembly E8.(E-14)
Adjustment E8.(E-16)
OK
End
