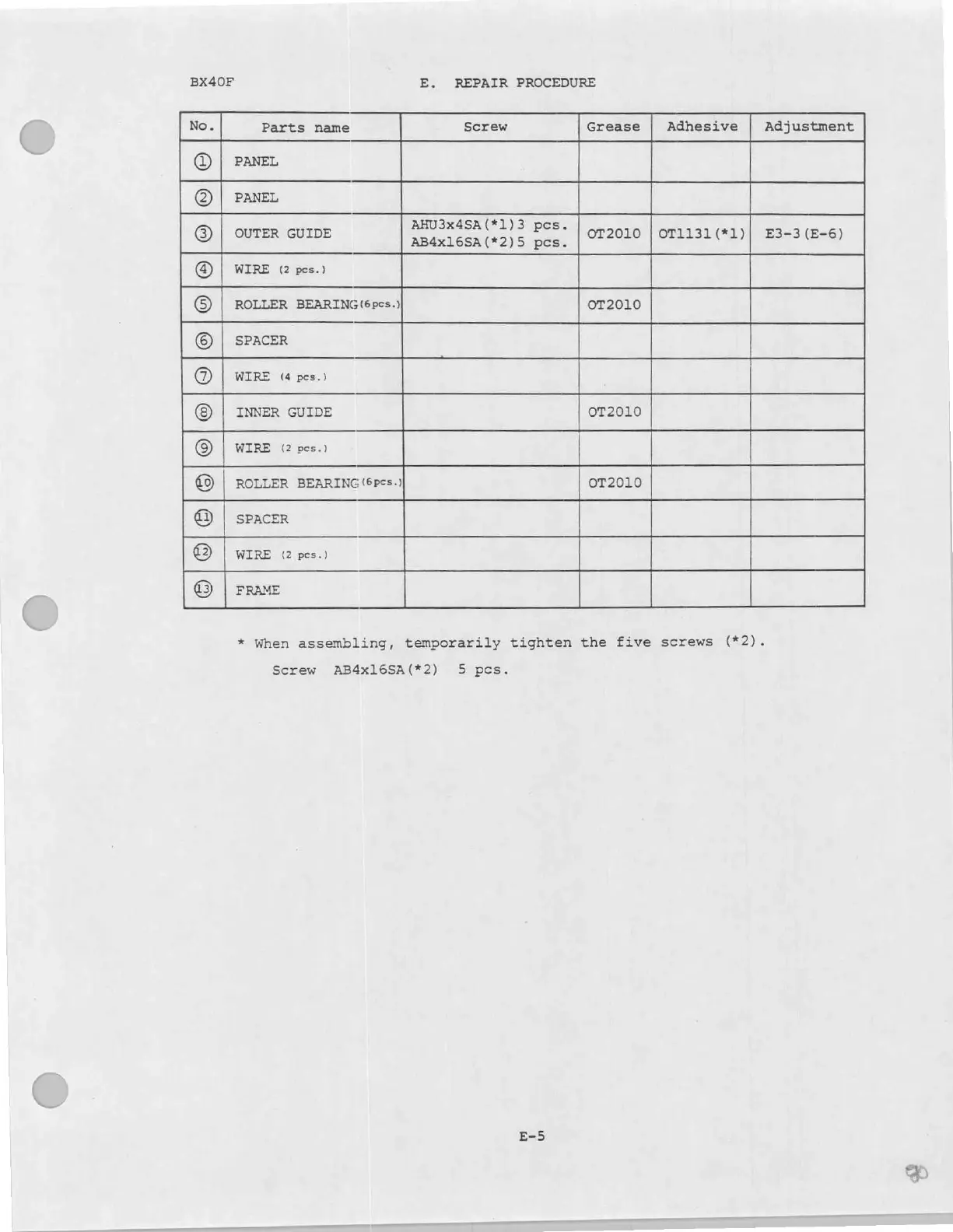

BX40F
E. REPAIR PROCEDURE
z o
Parts name
Screw
Grease
Adhesive Adjustment
PANEL
PANEL
OUTER GUIDE
AHU3x4SA (*1)3 pcs.
AB4x16SA(*2)5 pcs.
OT2010
OTITIS IT)
E3-3 (E-6)
WIRE (2 pes.)
ROLLER BEARING (6pcs.)|
OT2010
SPACER
WIRE (4 pes.)
INNER GUIDE OT2010
WIRE (2 pes.)
ROLLER
BEARING
(6pes.)
OT2010
SPACER
WIRE (2 pes.)
©|©/®|e|0|0|0|/0|0|e|0|0|©
FRAME
* When assembling, temporarily tighten the five screws
Screw AB4x16SA(*2)
5 pcs.
(#2).
