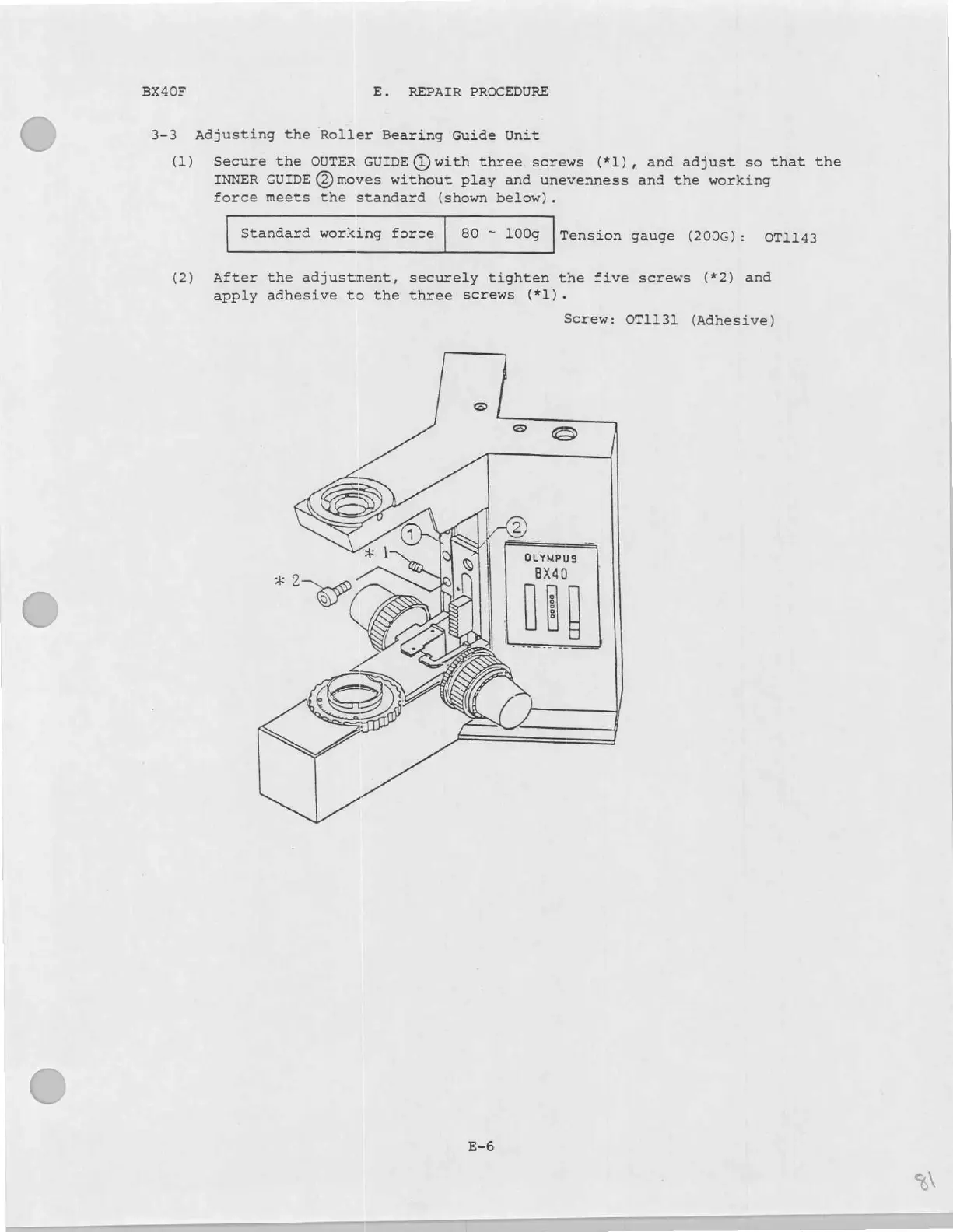

BX40F E. REPAIR PROCEDURE
3-3 Adjusting the Roller Bearing Guide Unit
(1) Secure the OUTER GUIDE @ with three screws (*1), and adjust so that the
INNER GUIDE @ moves without play and unevenness and the working
force meets the standard (shown below).
Standard
working
force
80
~
100g
|Tension
gauge
(200G):
071143
(2) After the adjustment, securely tighten the five screws (*2) and
apply adhesive to the three screws (31).
Screw: OT1131 (Adhesive)
OLYMPUS
BX40
