BX40F
E.
REPAIR
PROCEDURE

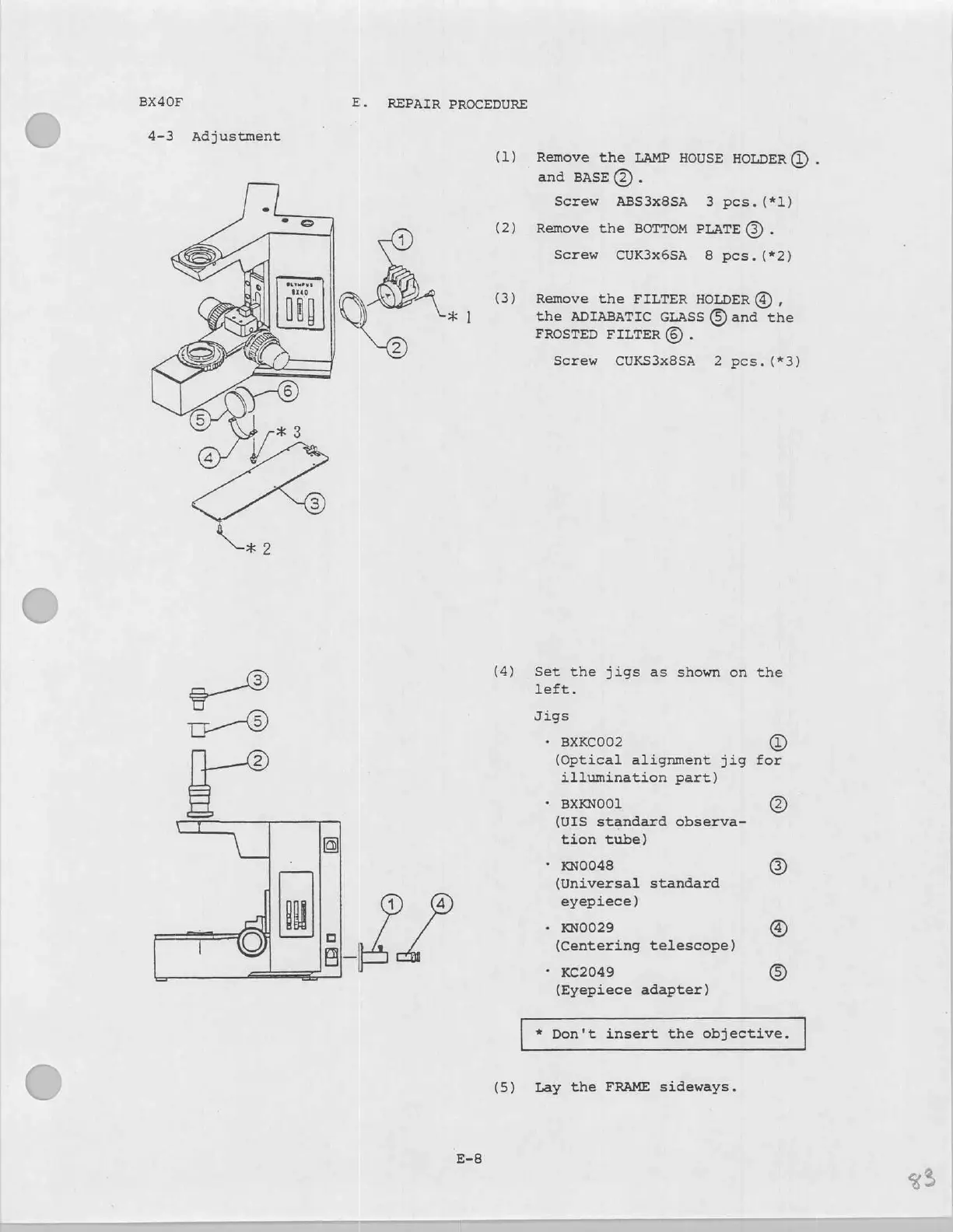

4-3 Adjustment
(1) Remove the LAMP HOUSE HOLDER (1) .
and BASE (2).
Screw ABS3x8SA 3 pcs. (*1)
(2) Remove the BOTTOM PLATE (9).
Screw CUK3x6SA 8 pcs. (*2)
A (3) Remove the FILTER HOLDER (4),
poi the ADIABATIC GLASS (5)and the
FROSTED FILTER (6) .
Screw CUKS3x8SA 2 pcs. (*3)
(4) Set the jigs as shown on the
left.
Jigs
・ BXKC002 ①
(Optical alignment jig for
illumination part)
+ BXKN001 ©
(UIS standard observa-
tion tube)
* KN0048 ©
(Universal standard
(4) eyepiece)
+ KN0029
| / (Centering telescope)
-一 | Ca
・ KC2049 ©
(Eyepiece adapter)
©
* Don't insert the objective.
(5) Lay the FRAME sideways.
