BX40F
E.

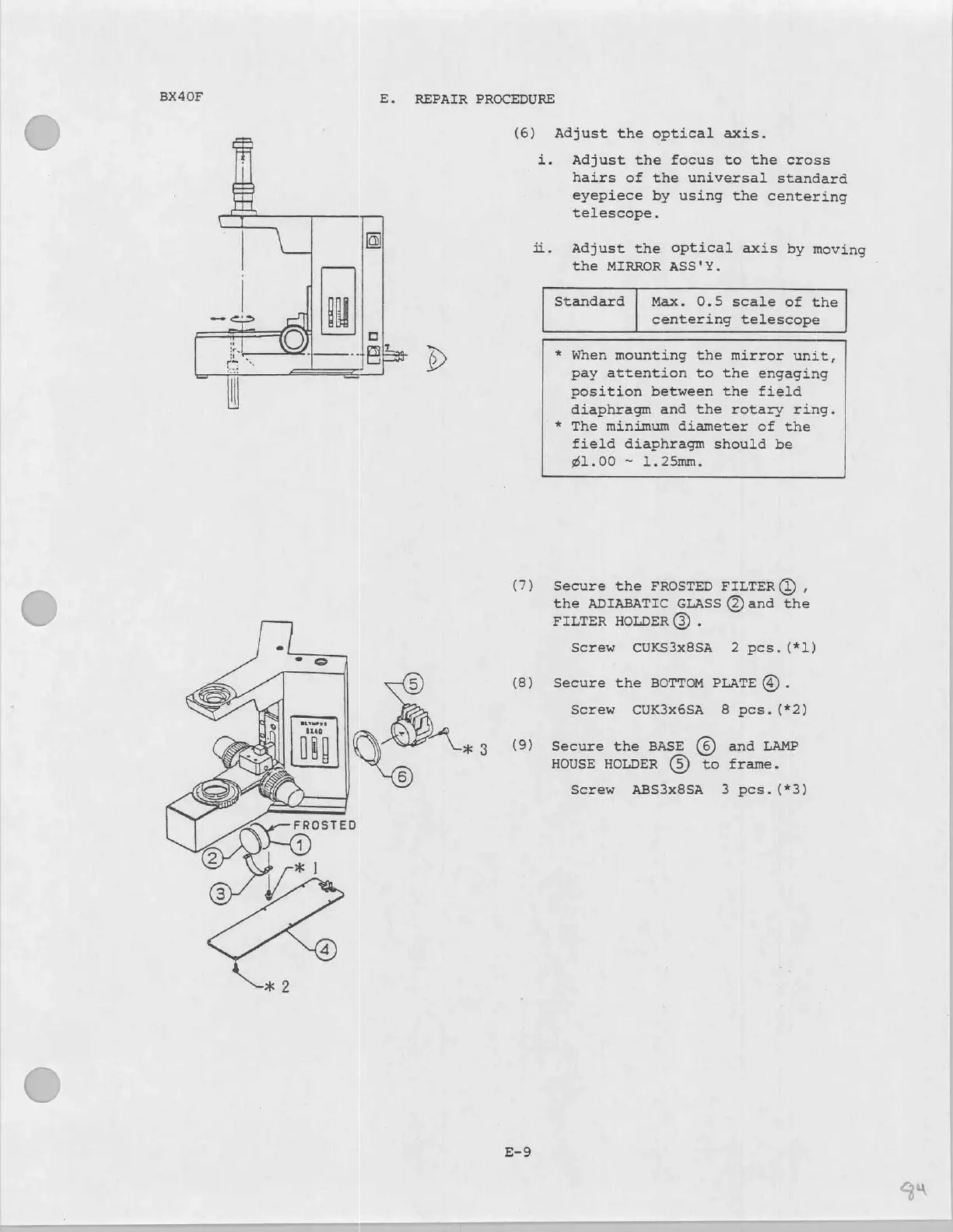

REPAIR PROCEDURE
(6)
(8)
‘te 3 (9)
de
Adjust the optical axis.
Adjust the focus to the cross
hairs of the universal standard
eyepiece by using the centering
telescope.
Adjust
the
optical
axis
by
moving
the
MIRROR
ASS'Y.
Standard Max. 0.5 scale of the
centering telescope
* When mounting the mirror unit,
pay attention to the engaging
position between the field
diaphragm and the rotary ring.
* The minimum diameter of the
field diaphragm should be
61.00 - 1.25mm.
Secure the FROSTED FILTER),
the ADIABATIC GLASS @)and the
FILTER HOLDER (3) .
Screw CUKS3x8SA 2 pcs. (*1)
Secure the BOTTOM PLATE (4).
Screw CUK3x6SA 8 pcs. (*2)
Secure the BASE O and LAMP
HOUSE HOLDER (5) to frame.
Screw ABS3x8SA 3 pcs. (*3)
